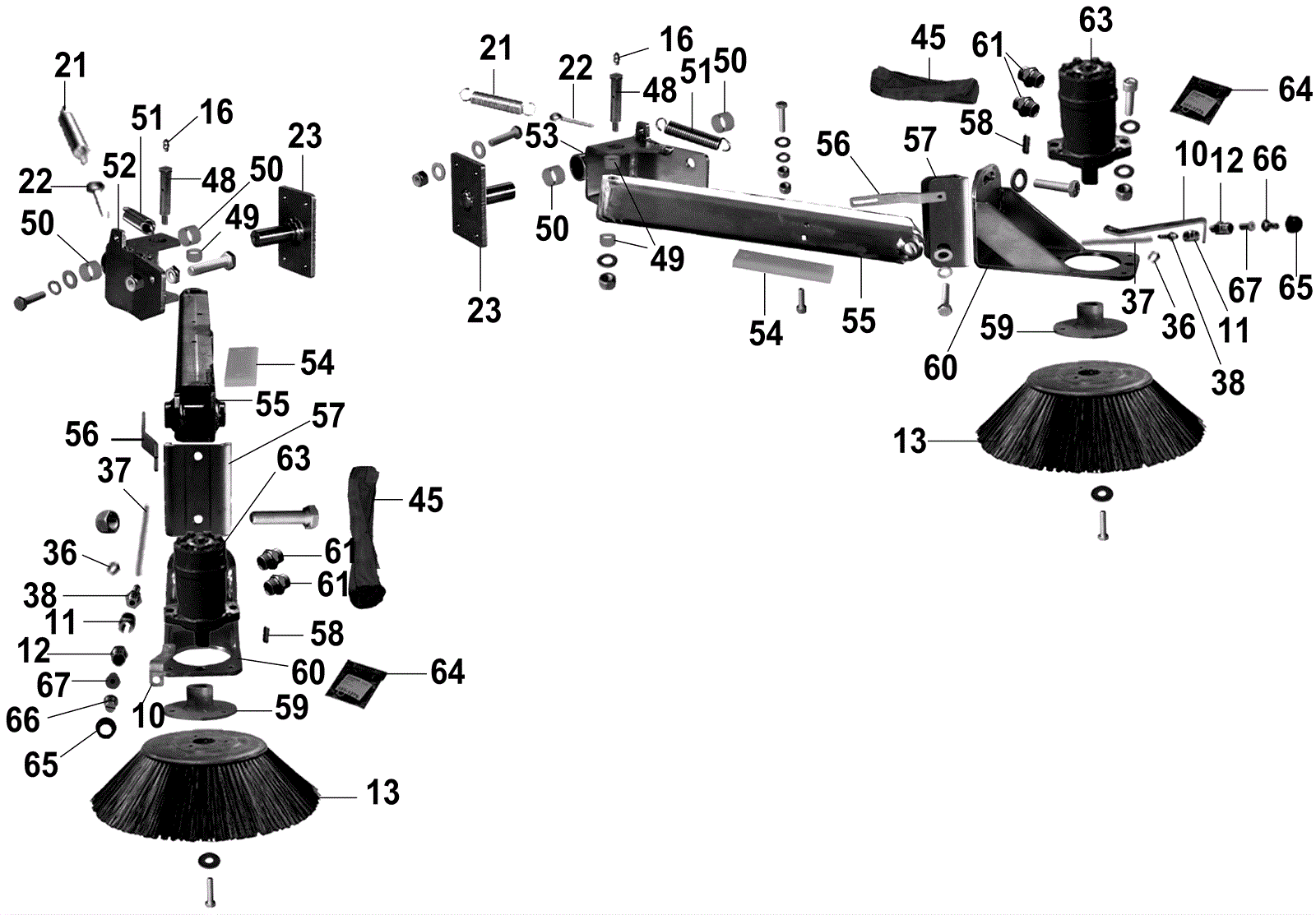

| # | Part | Description |
Req | Notes | Availability |
|---|
10 |
272-4335
|
Support |
2 |
|
|
11 |
272-4336
|
1/8 inch sleeve |
2 |
|
|
12 |
272-4337
|
Reduction fitting |
2 |
|
|
13a |
272-4338
|
Side broom (OBSOLETE) |
2 |
|
|
13b |
272-7289
|
Side broom polypropelene and steel (OBSOLETE) |
2 |
|
|
16 |
272-4311
|
45 degree grease fitting |
5 |
|
|
21 |
272-4315
|
Extension spring |
4 |
|
|
22 |
272-4316
|
Eye bolt M10 |
4 |
|
|
23 |
272-4339
|
Side broom weldment (OBSOLETE) |
2 |
|
|
36 |
170-5169
|
Hose clamp SAE #4 |
8 |
|
|
37 |
272-4212
|
Hose |
1 |
|
|
38 |
272-4211
|
Rubber seal |
5 |
|
|
45 |
272-4340
|
Sheath |
2 |
|
|
48 |
272-4341
|
Pin |
2 |
|
|
49 |
272-4342
|
Bushing |
4 |
|
|
50 |
272-4343
|
Bushing (OBSOLETE) |
4 |
|
|
51 |
272-4344
|
Broom arm spring |
2 |
|
|
52 |
272-4345
|
Right arm mounting bracket (OBSOLETE) |
1 |
|
|
53 |
272-4346
|
Left arm mounting bracket (OBSOLETE) |
1 |
|
|
54 |
272-4347
|
Bumper strip (OBSOLETE) |
2 |
|
|
55 |
272-4348
|
Side broom arm |
2 |
|
|
56 |
272-4349
|
Adjustment link (OBSOLETE) |
2 |
|
|
57 |
272-4350
|
Side broom motor support (OBSOLETE) |
2 |
|
|
58 |
272-4351
|
8 x 32 key (OBSOLETE) |
2 |
|
|
59 |
272-4352
|
Side broom mounting hub (OBSOLETE) |
2 |
|
|
60 |
272-4353
|
Motor support (OBSOLETE) |
2 |
|
|
61 |
272-4354
|
Pipe fitting |
4 |
|
|
63 |
272-4355
|
Hydraulic motor |
2 |
|
|
64 |
272-4356
|
Motor gasket kit (OBSOLETE) |
2 |
|
|
65 |
272-4357
|
Nozzle retaining nut |
2 |
|
|
66 |
272-4358
|
Spray nozzle (OBSOLETE) |
2 |
|
|
67 |
272-4359
|
Mesh filter (OBSOLETE) |
2 |
|
|
