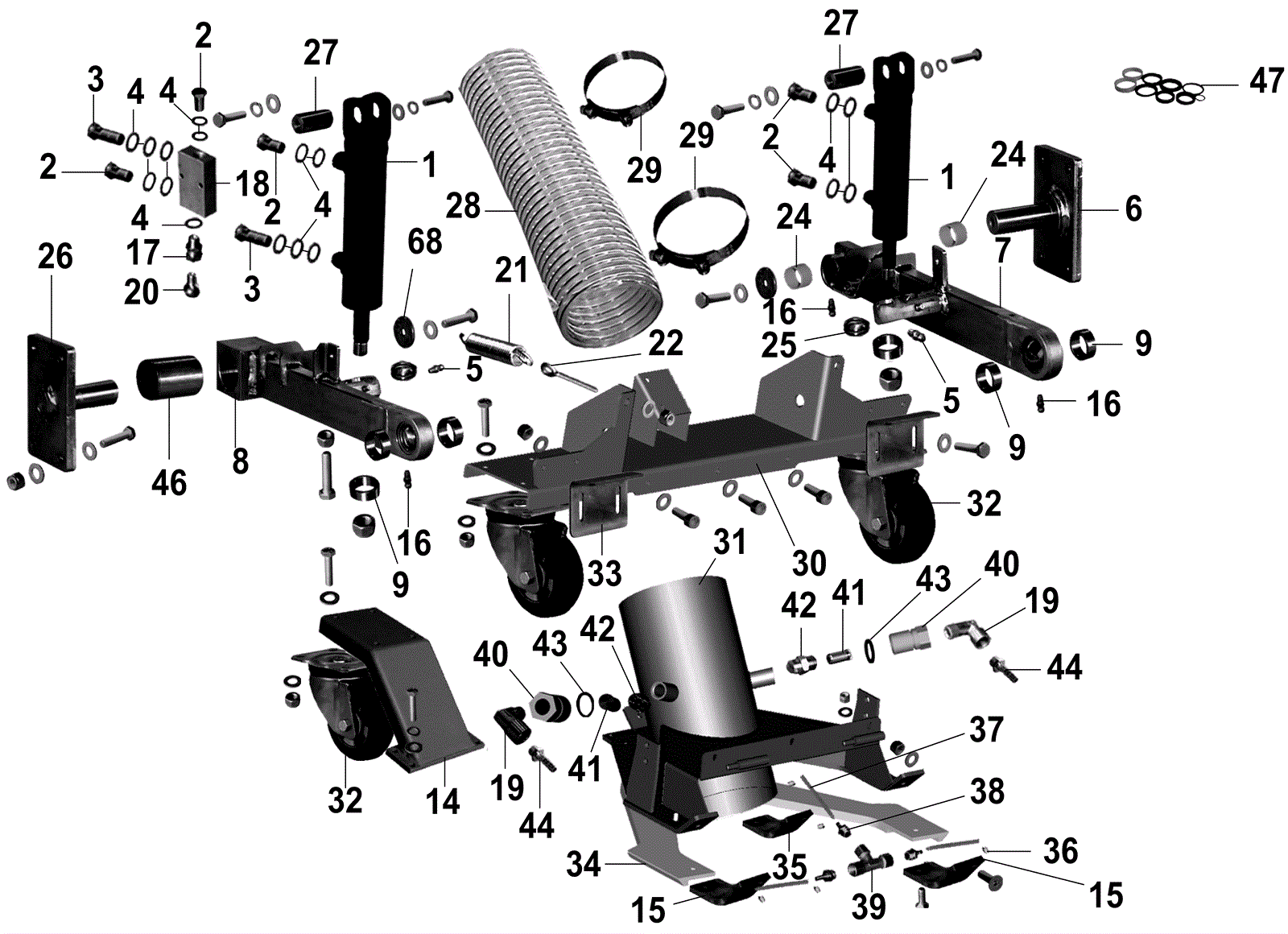

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
272-4303
|
Hydraulic cylinder |
2 |
|
|
2 |
272-4237
|
1/4 inch fitting |
5 |
|
|
3 |
272-4304
|
1/4 inch fitting (OBSOLETE) |
2 |
|
|
4 |
272-7335
|
Sealing washer |
17 |
|
|
5 |
272-4305
|
Grease fitting |
2 |
|
|
6 |
272-4306
|
Left arm pin weldment (OBSOLETE) |
1 |
|
|
7 |
272-4307
|
Left arm (OBSOLETE) |
1 |
|
|
8 |
272-4308
|
Right arm |
1 |
|
|
9 |
272-4309
|
Arm lifting spacer |
6 |
|
|
14 |
272-4310
|
Caster wheel support (OBSOLETE) |
1 |
|
|
15 |
272-7348
|
Wear plate |
2 |
|
|
16 |
272-4311
|
45 degree grease fitting |
5 |
|
|
17 |
272-4312
|
1/4 inch swivel fitting (OBSOLETE) |
1 |
|
|
18 |
272-4313
|
Hydraulic valve |
1 |
|
|
19 |
272-4220
|
1/4 inch elbow fitting |
2 |
|
|
20 |
272-4314
|
1/4 inch eye (OBSOLETE) |
1 |
|
|
21 |
272-4315
|
Extension spring |
4 |
|
|
22 |
272-4316
|
Eye bolt M10 |
4 |
|
|
24 |
272-4317
|
Bronze bushing |
1 |
|
|
25 |
272-4318
|
Spherical bearing (OBSOLETE) |
4 |
|
|
26 |
272-4319
|
Right arm pin weldment (OBSOLETE) |
1 |
|
|
27 |
272-4320
|
Pin (OBSOLETE) |
2 |
|
|
28 |
272-4321
|
Suction hose (OBSOLETE) |
1 |
|
|
29 |
272-4322
|
Hose clamp |
2 |
|
|
30 |
272-4323
|
Suction head support weldment (OBSOLETE) |
1 |
|
|
31 |
272-4036
|
Suction head |
1 |
|
|
32 |
272-4324
|
Caster wheel |
3 |
|
|
33 |
272-4325
|
Adjustment plate (OBSOLETE) |
2 |
|
|
34 |
272-7349
|
Plastic wear plate (OBSOLETE) |
1 |
|
|
35 |
272-4326
|
Wear plate |
1 |
|
|
36 |
170-5169
|
Hose clamp SAE #4 |
8 |
|
|
37 |
272-4212
|
Hose |
1 |
|
|
38 |
272-4211
|
Rubber seal |
5 |
|
|
39 |
272-4327
|
1/8 inch tee fitting (OBSOLETE) |
1 |
|
|
40 |
272-4328
|
Nozzle holder |
2 |
|
|
41 |
272-4329
|
Mesh filter |
2 |
|
|
42 |
272-4330
|
1/4 inch nozzle |
2 |
|
|
43 |
272-4331
|
Elastic ring |
2 |
|
|
44 |
272-4332
|
Rubber seal holder |
2 |
|
|
46 |
272-4044
|
Cylindrical rubber isolator |
1 |
|
|
47 |
272-4333
|
Cylinder flap gasket kit (OBSOLETE) |
2 |
|
|
68 |
272-4334
|
Flat washer (OBSOLETE) |
1 |
(After SN 103806748) |
|
