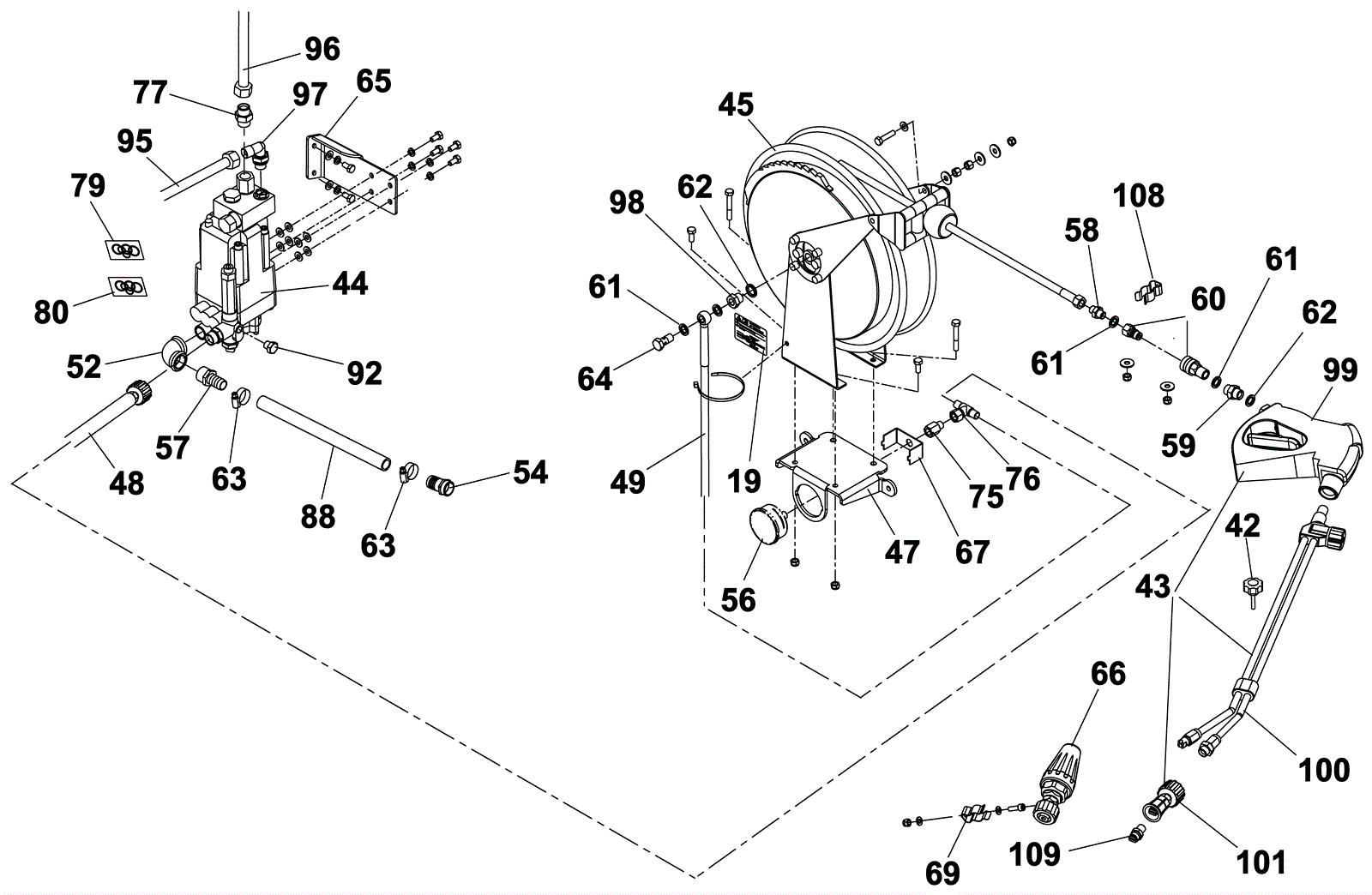

| # | Part | Description |
Req | Notes | Availability |
|---|
19 |
272-4198
|
Decal kit (OBSOLETE) |
1 |
|
|
42 |
272-4226
|
Knob M6 x 35 |
1 |
|
|
43 |
272-4227
|
Wand and gun assembly (OBSOLETE) |
1 |
(Includes items 99-101) |
|
44 |
272-6574
|
High pressure pump with regulator |
1 |
|
|
45 |
272-4228
|
Hose reel (OBSOLETE) |
1 |
|
|
47 |
272-4229
|
Roller support (OBSOLETE) |
1 |
|
|
48 |
272-4230
|
Hydraulic hose |
1 |
|
|
49 |
272-4231
|
Hydraulic hose |
1 |
|
|
52 |
272-4232
|
3/4 inch elbow fitting (OBSOLETE) |
1 |
|
|
54 |
272-4217
|
1/2 inch rubber seal (OBSOLETE) |
1 |
|
|
56 |
272-4233
|
Pressure gauge |
1 |
|
|
57 |
272-4234
|
3/4 inch rubber seal (OBSOLETE) |
1 |
|
|
58 |
272-7334
|
1/4 nipple |
1 |
|
|
59 |
272-4235
|
Nipple fitting |
1 |
|
|
60 |
272-7333
|
1/4 quick disconnect |
1 |
|
|
61 |
272-7335
|
Sealing washer |
4 |
|
|
62 |
272-4236
|
3/8 inch sealing washer |
2 |
|
|
63 |
272-4219
|
Hose clamp (OBSOLETE) |
2 |
|
|
64 |
272-4237
|
1/4 inch fitting |
1 |
|
|
65 |
272-4238
|
Water pump support (OBSOLETE) |
1 |
|
|
66 |
272-4239
|
Turbo nozzle |
1 |
|
|
67 |
272-4240
|
Manometer bracket (OBSOLETE) |
1 |
|
|
69 |
272-4241
|
Spring rod holder (OBSOLETE) |
1 |
|
|
75 |
272-4242
|
1/4 inch adapter fitting |
1 |
|
|
76 |
272-4243
|
1/4 inch tee fitting (OBSOLETE) |
1 |
|
|
77 |
272-4244
|
1/2 inch nipple |
1 |
|
|
79 |
272-4245
|
Gasket kit (OBSOLETE) |
1 |
|
|
80 |
272-4246
|
Gasket kit (OBSOLETE) |
1 |
|
|
88 |
272-4247
|
Wire enforced hose (OBSOLETE) |
1 |
|
|
92 |
272-4248
|
1/4 inch plug (OBSOLETE) |
1 |
|
|
95 |
272-4249
|
Hydraulic hose (OBSOLETE) |
1 |
|
|
96 |
272-4250
|
Hydraulic hose (OBSOLETE) |
1 |
|
|
97 |
272-4251
|
1/2 inch fitting |
1 |
|
|
98 |
272-4252
|
3/8 inch reduction gear |
1 |
|
|
99 |
272-4253
|
Water gun |
1 |
|
|
100 |
272-4254
|
High pressure wand |
1 |
|
|
101 |
272-4255
|
Nozzle assembly (OBSOLETE) |
1 |
|
|
108 |
272-4101
|
Spring clip (OBSOLETE) |
1 |
|
|
109 |
272-4256
|
High pressure nozzle |
1 |
|
|
