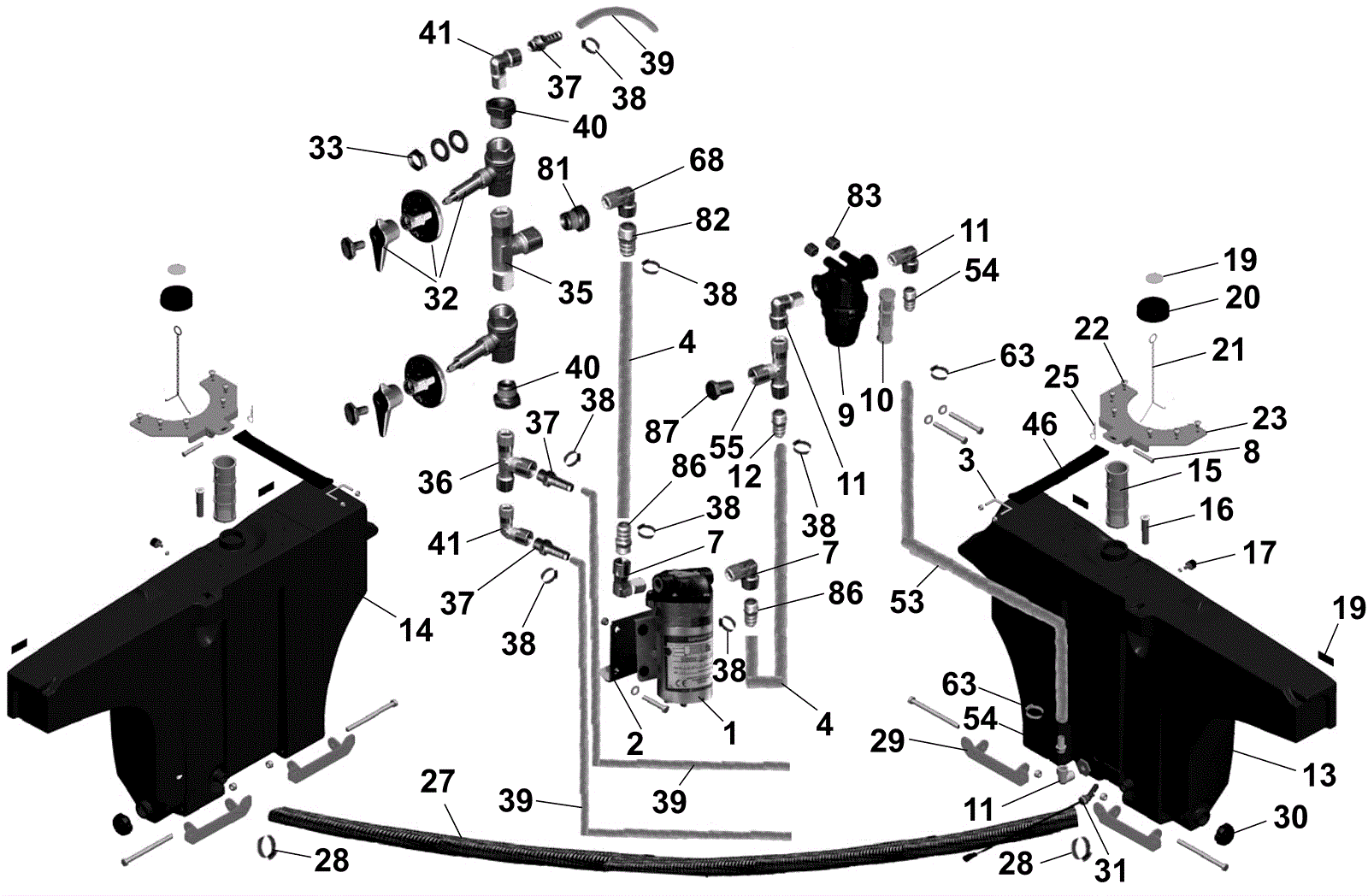

Water Flow Assembly

#PartDescription ReqNotesAvailability
1 272-4185 Water pump with connector 1
2 272-4186 Water pump support (OBSOLETE) 1
3 272-4187 Strap (OBSOLETE) 2
4 272-4188 Hose 12 x 18 (OBSOLETE) 1
7 272-4189 3/8 inch elbow fitting (OBSOLETE) 2
8 272-4190 Clevis pin (OBSOLETE) 2
9 272-4191 Water filter (OBSOLETE) 1
10 272-4192 Water filter 1
11 272-4193 1/2 inch elbow fitting 3
12 272-4194 1/2 inch rubber seal (OBSOLETE) 1
13 272-4041 Right side water tank (OBSOLETE) 1
14 272-4040 Left side water tank (OBSOLETE) 1
15 272-4195 Water filter 2
16 272-4196 Safety pin (OBSOLETE) 2
17 272-4197 Rubber isolator 2
19 272-4198 Decal kit (OBSOLETE) 1
20 272-4199 Plug (OBSOLETE) 2
21 272-4200 Chain 2
22 272-7337 Hose stopper (OBSOLETE) 1
23 272-4201 Tank bracket (OBSOLETE) 2
25 272-7092 Cotter pin 2
27 272-4202 Flex hose (OBSOLETE) 1
28 272-4203 Hose clamp (OBSOLETE) 2
29 272-4204 Tank support (OBSOLETE) 4
30 272-4205 Plug 2
31 272-4206 Water level float 1
32 272-4207 Ball valve 2
33 272-4208 Nut 3/8 hex (OBSOLETE) 2
35 272-4209 1/2 inch tee fitting (OBSOLETE) 1
36 272-4210 1/8 inch tee fitting (OBSOLETE) 1
37 272-4211 Rubber seal 3
38 170-5169 Hose clamp SAE #4 7
39 272-4212 Hose 1
40 272-4213 Reducer 2
41 272-4214 1/8 inch elbow fitting (OBSOLETE) 2
46 272-4215 Strap (OBSOLETE) 2
53 272-4216 Wire enforced hose (OBSOLETE) 1
54 272-4217 1/2 inch rubber seal (OBSOLETE) 1
55 272-4218 1/2 inch tee fitting (OBSOLETE) 1
63 272-4219 Hose clamp (OBSOLETE) 2
68 272-4220 1/4 inch elbow fitting 1
81 272-4221 Fitting (OBSOLETE) 1
82 272-4222 1/4 inch rubber seal (OBSOLETE) 1
83 272-4223 Spacer (OBSOLETE) 2
86 272-4224 3/8 inch rubber seal (OBSOLETE) 2
87 272-4225 1/2 inch plug (OBSOLETE) 1
