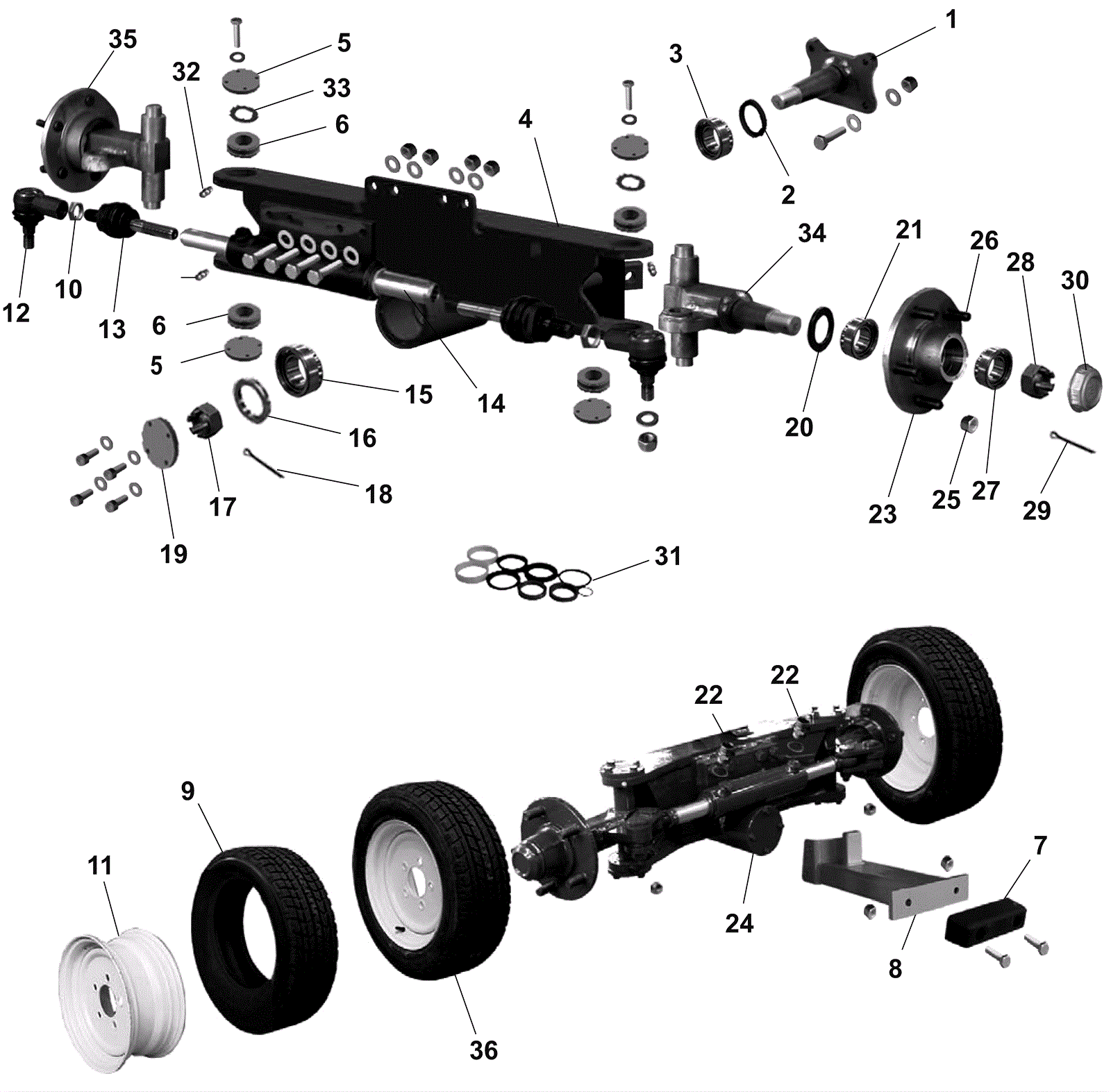

RS 501 Rear Axle Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-4150 Rear axle pin weldment (OBSOLETE) $820.82 1 usually ships 1-5 days
2 272-4151 Shaft seal (OBSOLETE) $20.79 1 usually ships 1-5 days
3 272-4152 Roller bearing (OBSOLETE) $135.41 1 usually ships 1-5 days
4 272-4153 Rear axle weldment (OBSOLETE) $2,664.75 1 usually ships 1-5 days
5 272-4154 Rear axle cover (OBSOLETE) $103.62 4 usually ships 1-5 days
6 272-4155 Spherical bearing $115.50 4 usually ships 1-5 days
7 272-4156 Rubber bumper (OBSOLETE) $28.05 1 usually ships 1-5 days
8 272-4157 Bumper (OBSOLETE) $319.77 1 usually ships 1-5 days
9 272-4158 Tire kit $1,155.00 2 usually ships 1-5 days
10 272-4159 Nut M18 x 1.5 low $8.80 2 usually ships 1-5 days
11 272-4160 Rim $379.50 2 usually ships 1-5 days
12 272-4161 Rod end $274.86 2 usually ships 1-5 days
13 272-4162 Ball joint (OBSOLETE) $106.26 2 usually ships 1-5 days
14 272-4163 Steering wheel cylinder (OBSOLETE) $617.32 1 usually ships 1-5 days
15 272-4164 Roller bearing $107.80 1 usually ships 1-5 days
16 272-4165 Flat washer (OBSOLETE) $14.30 1 usually ships 1-5 days
17 272-4166 Nut M30 castellated (OBSOLETE) $46.53 1 usually ships 1-5 days
18 272-4167 Cotter pin (OBSOLETE) $7.70 1 usually ships 1-5 days
19 272-4168 Rear axle pivot cover (OBSOLETE) $47.85 1 usually ships 1-5 days
20 272-4169 Shaft seal (OBSOLETE) $32.56 2 usually ships 1-5 days
21 272-4170 Roller bearing (OBSOLETE) $165.86 2 usually ships 1-5 days
22 272-4171 Nipple $11.00 2 usually ships 1-5 days
23 272-4172 Wheel hub with studs $261.25 2 usually ships 1-5 days
24 272-4038 Rear axle assembly (OBSOLETE) $7,735.86 1 usually ships 1-5 days
25 272-4173 Lug nut (OBSOLETE) $13.40 10 usually ships 17-28 days
26 272-4174 Wheel stud (OBSOLETE) $35.19 10 usually ships 17-28 days
27 272-4175 Roller bearing $132.06 2 usually ships 1-5 days
28 272-4176 Nut M24 x 2 castellated hex (OBSOLETE) $34.43 2 usually ships 1-5 days
29 272-4177 Cotter pin $9.26 2 usually ships 1-5 days
30 272-4178 Metal plug $11.19 2 usually ships 1-5 days
31 272-4179 Gasket kit (OBSOLETE) $185.68 1 usually ships 1-5 days
32 272-4180 45 degree M8 grease fitting (OBSOLETE) $7.70 4 usually ships 1-5 days
33 272-4181 Washer 32 x 45 x .1 (OBSOLETE) $7.70 20 usually ships 1-5 days
34 272-4182 Right side wheel hub (OBSOLETE) $592.57 1 usually ships 1-5 days
35 272-4183 Left side wheel hub (OBSOLETE) $656.81 1 usually ships 1-5 days
36 272-4184 Wheel kit $1,650.00 2 usually ships 1-5 days
