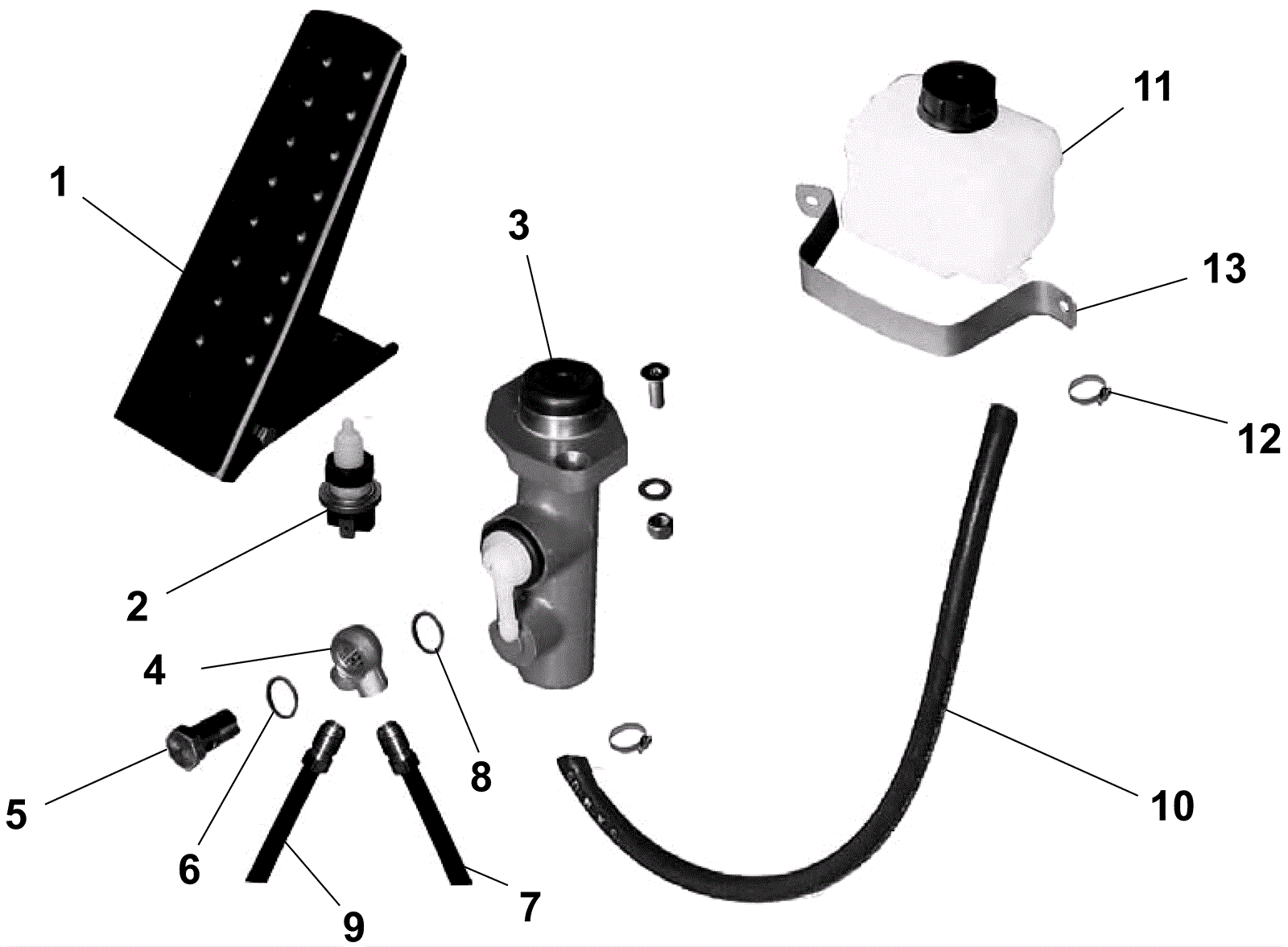

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
272-4138
|
Brake pedal (OBSOLETE) |
1 |
|
|
2 |
272-4139
|
Brake light switch |
1 |
|
|
3 |
272-4140
|
Brake pump (OBSOLETE) |
1 |
|
|
4 |
272-4141
|
2-way banjo fitting (OBSOLETE) |
1 |
|
|
5 |
272-4142
|
Bolt M12 x 1.5mm banjo (OBSOLETE) |
1 |
|
|
6 |
272-4143
|
Washer 14-20 copper (OBSOLETE) |
1 |
|
|
7 |
272-4144
|
Right side hydraulic hose (OBSOLETE) |
1 |
|
|
8 |
272-4145
|
Washer 12 copper (OBSOLETE) |
1 |
|
|
9 |
272-4146
|
Left side hydraulic hose (OBSOLETE) |
1 |
|
|
10 |
272-4147
|
Hose (OBSOLETE) |
1 |
|
|
11 |
272-4148
|
Brake fluid reservoir (OBSOLETE) |
1 |
|
|
12 |
170-5169
|
Hose clamp SAE #4 |
2 |
|
|
13 |
272-4149
|
Brake fluid reservoir clamp (OBSOLETE) |
1 |
|
|
