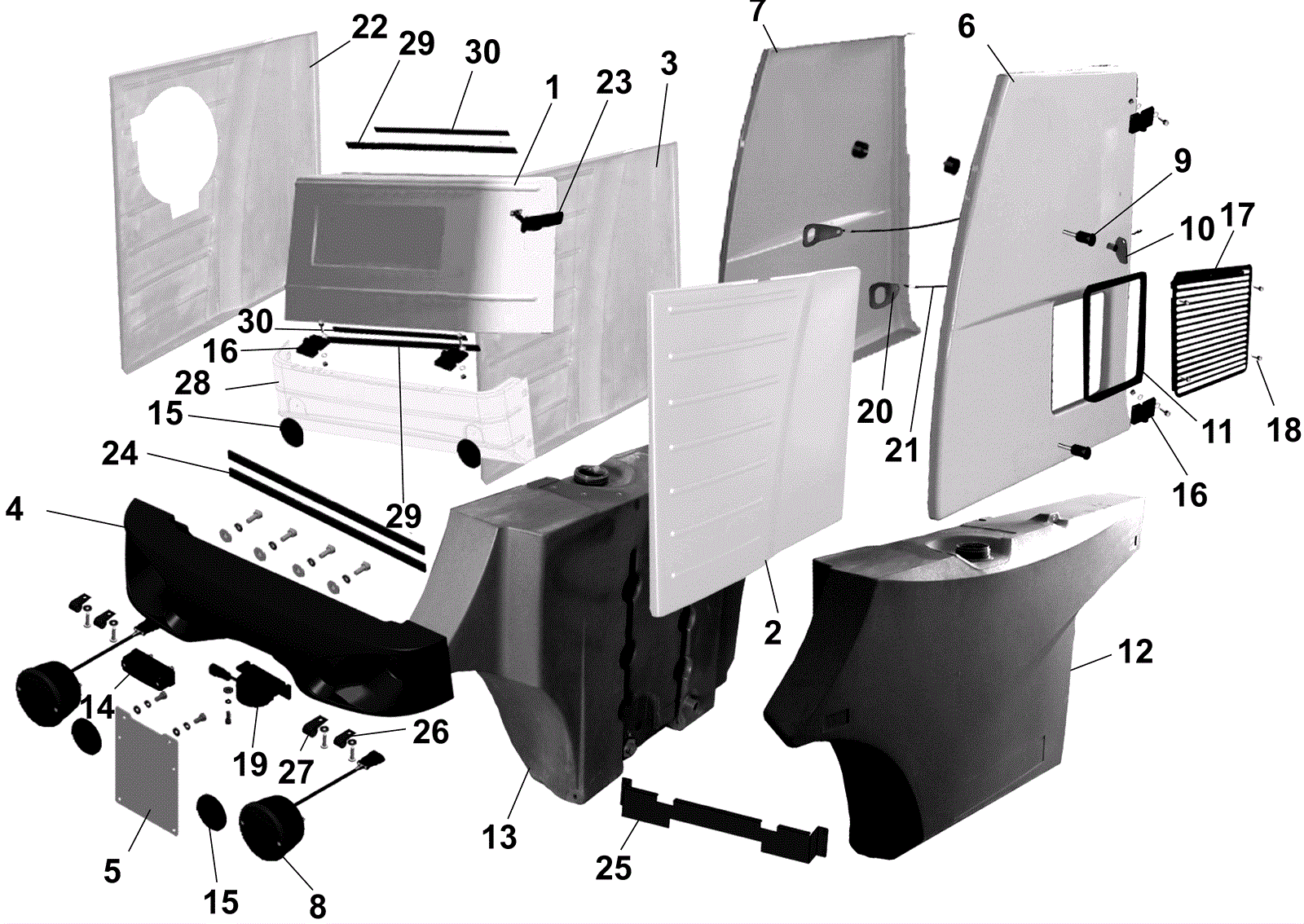

RS 501 Bonnets Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-4114 Upper bonnet $267.88 1 usually ships 1-5 days
2 272-4115 Right side panel $803.33 1 usually ships 1-5 days
3 272-4116 Left side panel (OBSOLETE) $640.86 1 usually ships 1-5 days
4 272-4035 Rotomolded bumper $274.86 1 usually ships 1-5 days
5 272-4117 Holder plate (OBSOLETE) $33.88 1 usually ships 1-5 days
6 272-4118 Right side door (OBSOLETE) $488.95 1 usually ships 1-5 days
7 272-4119 Left side door (OBSOLETE) $488.95 1 usually ships 1-5 days
8 272-4120 Tail light with connector $124.82 2 usually ships 1-5 days
9 272-4121 Locking compression (OBSOLETE) $127.93 4 usually ships 1-5 days
10 272-4122 Key latch $28.46 1 usually ships 17-28 days
11 272-4123 Seal $35.19 1 usually ships 1-5 days
12 272-4041 Right side water tank (OBSOLETE) $1,132.89 1 usually ships 1-5 days
13 272-4040 Left side water tank (OBSOLETE) $1,132.89 1 usually ships 1-5 days
14 272-4124 License plate light (OBSOLETE) $26.18 1 usually ships 1-5 days
15 272-4125 Reflector $10.52 4 usually ships 1-5 days
16 270-0357 Hinge $36.07 6 usually ships 17-28 days
17 272-4126 Radiator protection grill (OBSOLETE) $125.29 1 usually ships 1-5 days
18 272-4127 Rivet (OBSOLETE) $8.47 6 usually ships 1-5 days
19 272-4128 12V warning buzzer (OBSOLETE) $259.38 1 usually ships 1-5 days
20 272-4129 Cable mounting bracket (OBSOLETE) $14.08 2 usually ships 1-5 days
21 272-4130 Cable door $41.84 2 usually ships 1-5 days
22 272-4116 Left side panel (OBSOLETE) $640.86 1 usually ships 1-5 days
23 272-4132 Latch $104.61 2 usually ships 1-5 days
24 272-4133 Gasket $8.80 2 usually ships 1-5 days
25 272-4134 Radiator plate (OBSOLETE) $110.11 1 usually ships 1-5 days
26 372-3331 Cable clamp (black) $12.31 3 usually ships 17-28 days
27 272-8416 P clamp $12.31 1 usually ships 17-28 days
28 272-4135 Lower bonnet kit $528.00 1 usually ships 1-5 days
29 272-4136 Plate $89.93 2 usually ships 1-5 days
30 272-4137 Gasket kit (OBSOLETE) Call for price 1 usually ships 1-5 days
