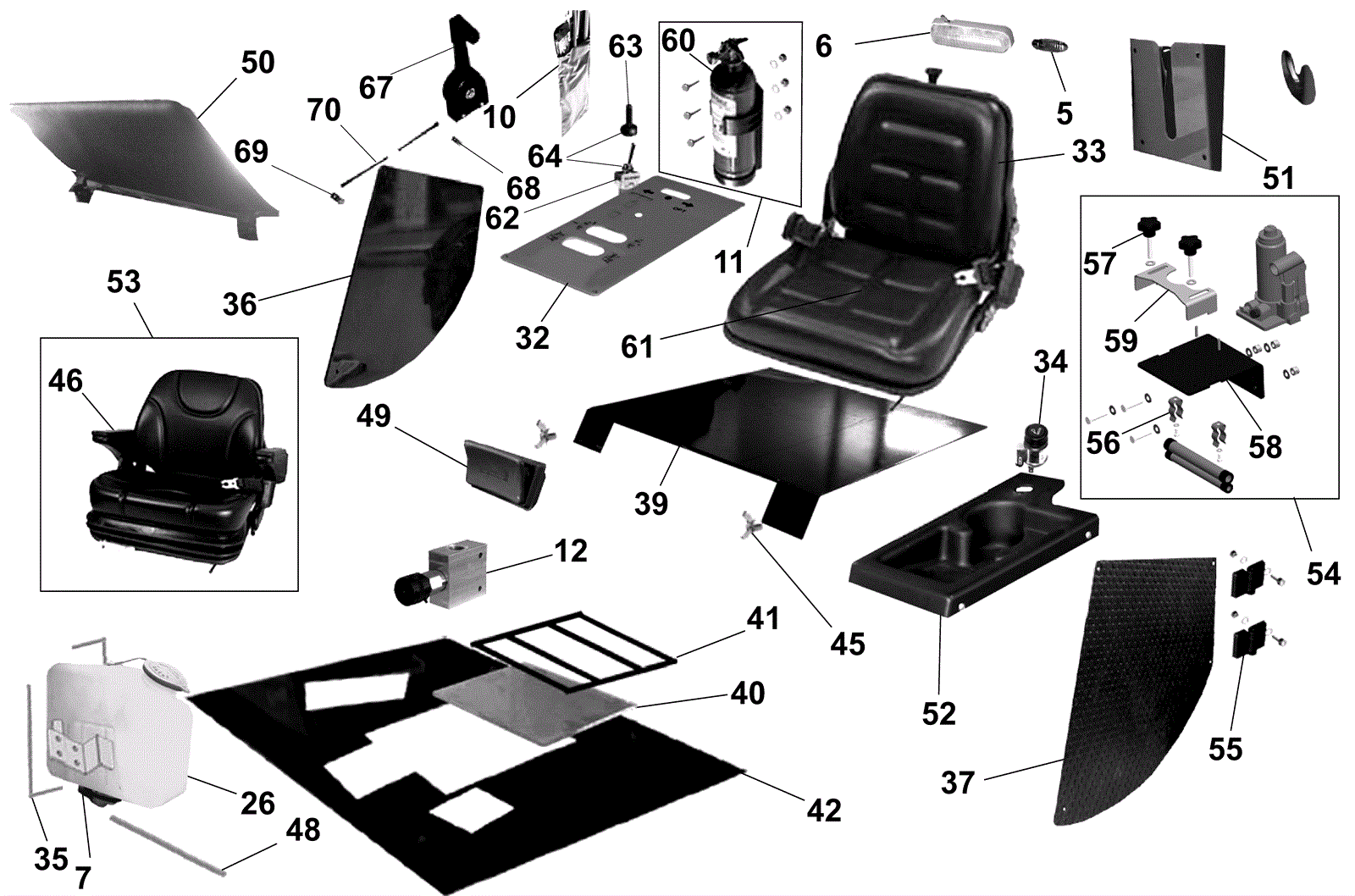

Cabin Assembly

#PartDescription ReqNotesAvailability
5 272-4046 12V bulb (OBSOLETE) 1
6 272-4047 Roof lamp (OBSOLETE) 1
7 272-4048 Tank support (OBSOLETE) 1
10 272-4051 Tool kit (OBSOLETE) 1
11 272-4052 Fire extinguisher kit (OBSOLETE) 1 (Includes item 60)
12 272-4053 Adjustable broom speed kit (OBSOLETE) 1
26 272-4069 Windshield wiper fluid resevoir (OBSOLETE) 1
32 272-4075 2-way control panel plate (OBSOLETE) 1
33 272-4076 Seat with seatbelt (OBSOLETE) 1
34 272-4077 Cigarette lighter (OBSOLETE) 1
35 272-5462 Clamp 4.8 x 30 (white) (OBSOLETE) 2
36 272-4078 Right side cab panel (OBSOLETE) 1
37 272-4088 Left side cab panel (OBSOLETE) 1
39 N/A Not available 1 (Seat plate)
40 272-4089 Cab floor window (OBSOLETE) 1
41 272-4090 Window grate (OBSOLETE) 1
42 272-4091 Cab floor mat (OBSOLETE) 1
45 272-0772 Nut M6 wing (pkg 5) 2
46 272-4093 Comfort seat (OBSOLETE) 1
48 272-4094 Hose 4 x 6 inch (clear) (OBSOLETE) 1
49 272-4095 Ash tray (OBSOLETE) 1
50 272-4096 Sun visor (OBSOLETE) 1
51 272-4097 Document holder (OBSOLETE) 1
52 272-4098 Object holder (OBSOLETE) 1
53 272-4099 Comfort seat kit (OBSOLETE) 1 (Includes item 46)
54 272-4100 Hydraulic jack kit (OBSOLETE) 1 (Includes items 56-59)
55 270-0357 Hinge 2
56 272-4101 Spring clip (OBSOLETE) 2
57 272-4102 Knob M8 x 45 (OBSOLETE) 2
58 272-4103 Hydraulic jack support (OBSOLETE) 1
59 272-4104 Hydraulic jack plate (OBSOLETE) 1
60 272-4105 Fire extinguisher (OBSOLETE) 1
61 272-4106 Seat cushion (OBSOLETE) 1
62 272-4107 Flap switch (OBSOLETE) 1
63 272-4108 Switch protection cap (OBSOLETE) 1
64 272-4109 Switch and cap kit (OBSOLETE) 1
67 272-4110 Lever with block (OBSOLETE) 1
68 272-4111 Accelerator cable clamp (OBSOLETE) 1
69 272-4112 Accelerator cable clamp 1
70 272-4113 Accelerator cable 1
