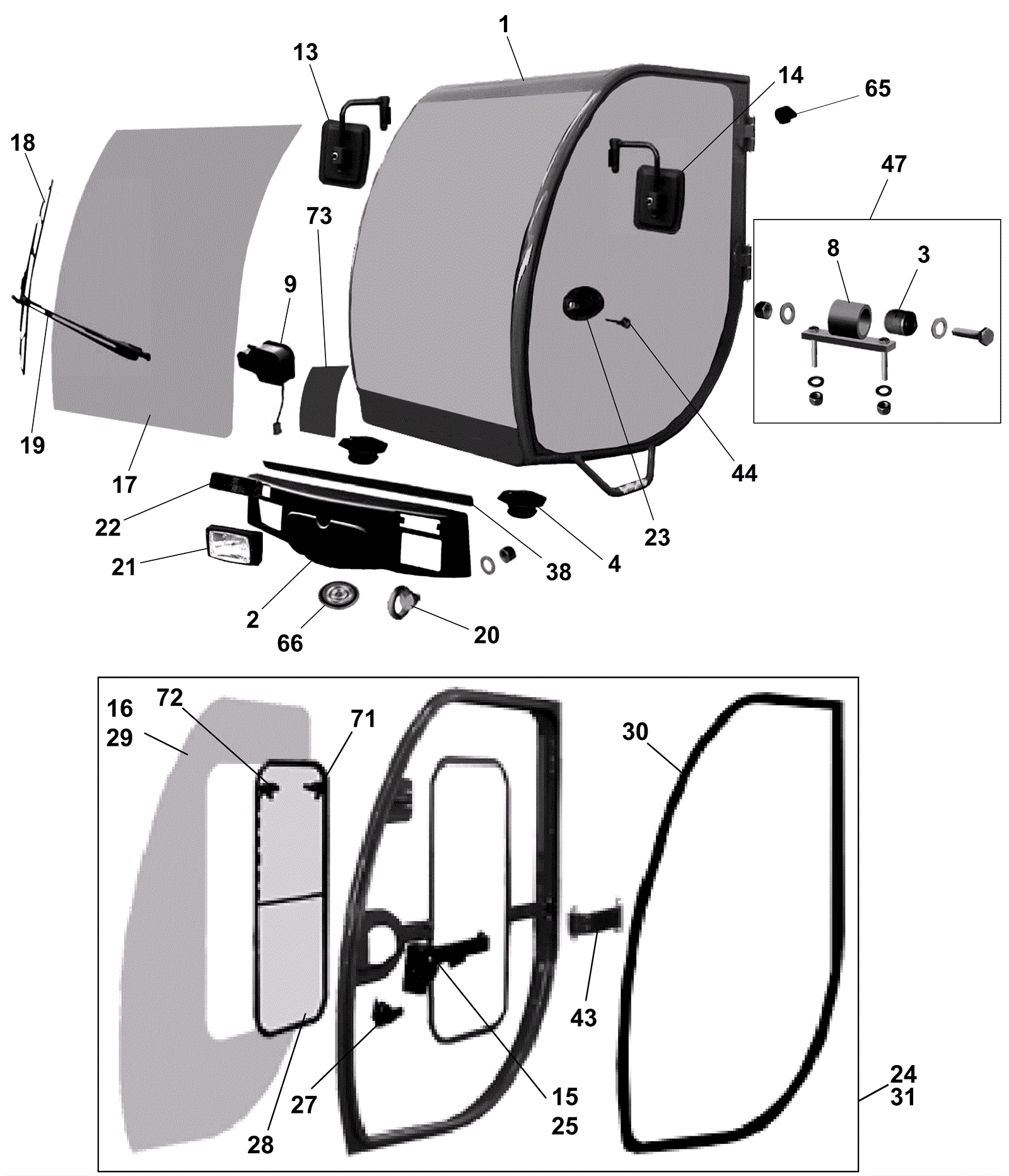

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(Cabin) |
|
2 |
272-4043
|
Headlight housing |
1 |
|
|
3 |
272-4044
|
Cylindrical rubber isolator |
1 |
|
|
4 |
272-4045
|
Rubber isolator (OBSOLETE) |
2 |
|
|
8 |
272-4049
|
Rear cab support (OBSOLETE) |
1 |
|
|
9 |
272-4050
|
Windshield wiper motor (OBSOLETE) |
1 |
|
|
13a |
272-4054
|
Right side cab mirror |
1 |
|
|
13b |
272-4055
|
Right side mirror kit (OBSOLETE) |
1 |
|
|
14a |
272-4056
|
Left side cab mirror |
1 |
|
|
14b |
272-4057
|
Left side mirror kit |
1 |
|
|
15 |
272-4058
|
Left side lock assembly |
1 |
|
|
16 |
272-4059
|
Left side door window |
1 |
|
|
18 |
272-4061
|
Windshield wiper (OBSOLETE) |
1 |
|
|
19 |
272-4062
|
Windshield wiper arm (OBSOLETE) |
1 |
|
|
20 |
272-4063
|
Eyebolt M20 (OBSOLETE) |
1 |
|
|
21 |
272-4064
|
Front headlight assembly |
2 |
|
|
22 |
272-4065
|
Front turn signal |
2 |
|
|
23 |
272-4066
|
External cab door handle (OBSOLETE) |
2 |
|
|
24 |
272-4067
|
Right side cab door (OBSOLETE) |
1 |
(Includes items 25, 27-30, 43, 71 and 72) |
|
25 |
272-4068
|
Right side lock assembly (OBSOLETE) |
1 |
|
|
27 |
272-4070
|
Door lock striker (OBSOLETE) |
2 |
|
|
28 |
272-4071
|
Sliding window (OBSOLETE) |
1 |
|
|
29 |
272-4072
|
Right side cab door window (OBSOLETE) |
1 |
|
|
30 |
272-4073
|
Door gasket (OBSOLETE) |
1 |
|
|
31 |
272-4074
|
Left side cab door (OBSOLETE) |
1 |
(Includes items 15, 16, 27, 28, 30, 43, 71 and 72) |
|
38 |
272-4079
|
Gasket strip |
1 |
|
|
43 |
272-4080
|
Cab door strap |
2 |
|
|
44 |
272-4081
|
Cab door key |
1 |
|
|
47 |
272-4082
|
Rear cab support kit (OBSOLETE) |
1 |
(Includes items 3 and 8) |
|
65 |
272-4083
|
Flashing light socket |
1 |
|
|
66 |
272-4084
|
12V horn |
1 |
|
|
71 |
272-4085
|
Right side handle (OBSOLETE) |
1 |
|
|
72 |
272-4086
|
Left side handle (OBSOLETE) |
1 |
|
|
73 |
272-4087
|
Windshield wiper plate (OBSOLETE) |
1 |
|
|
