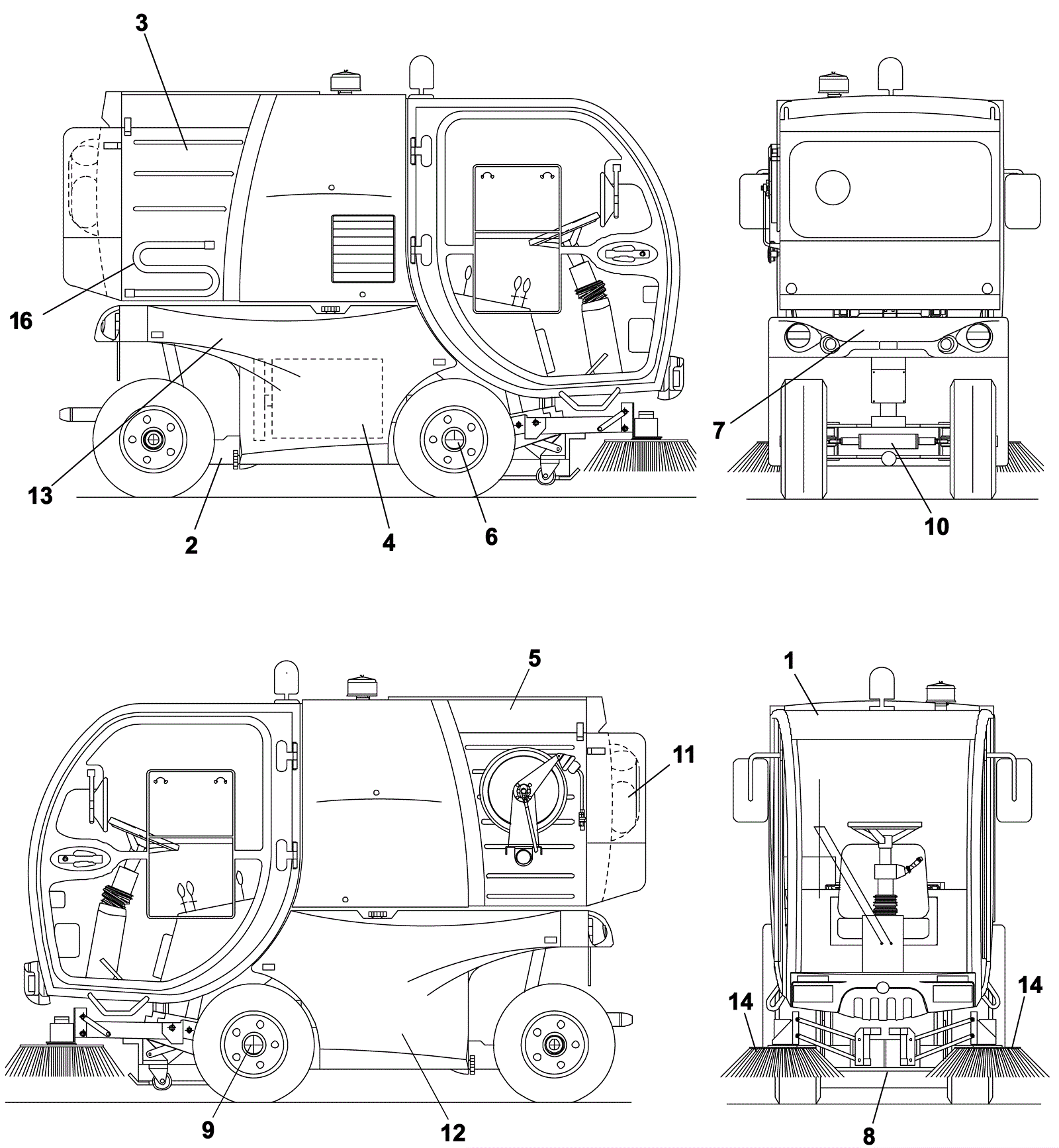

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(Cabin) |
|
2 |
272-4029
|
Chassis (OBSOLETE) |
1 |
|
|
3 |
272-4030
|
Hopper kit (OBSOLETE) |
1 |
|
|
4 |
272-4031
|
V1505T Kubota engine (OBSOLETE) |
1 |
|
|
5 |
272-4032
|
Fan |
1 |
|
|
6a |
272-4033
|
Right side motor wheel (OBSOLETE) |
1 |
|
|
6b |
272-4034
|
Motor wheel kit (OBSOLETE) |
1 |
|
|
7 |
272-4035
|
Rotomolded bumper |
1 |
|
|
8 |
272-4036
|
Suction head |
1 |
|
|
9 |
272-4037
|
Left side motor wheel (OBSOLETE) |
1 |
|
|
10 |
272-4038
|
Rear axle assembly (OBSOLETE) |
1 |
|
|
11 |
272-4039
|
Suction hose (OBSOLETE) |
1 |
|
|
12 |
272-4040
|
Left side water tank (OBSOLETE) |
1 |
|
|
13 |
272-4041
|
Right side water tank (OBSOLETE) |
1 |
|
|
14 |
272-7289
|
Side broom polypropelene and steel (OBSOLETE) |
1 |
|
|
16 |
272-4042
|
Water drain hose |
1 |
|
|
