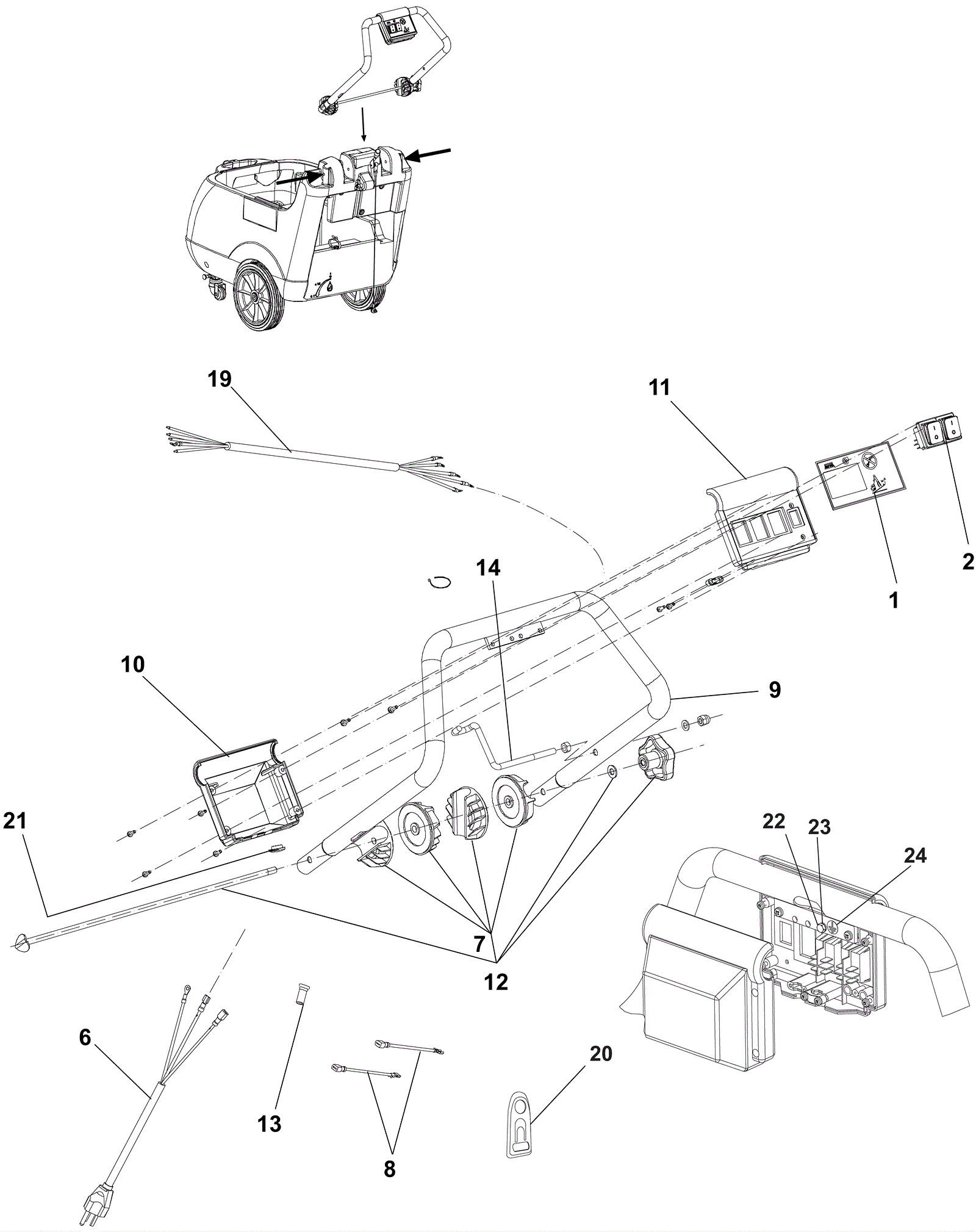

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
272-5541
|
Control panel decal |
1 |
|
|
2 |
272-0638
|
Rocker switch |
2 |
|
|
6 |
572-3031
|
POWER CABLE |
1 |
|
|
7 |
181-0896
|
Handle adjuster kit |
1 |
|
|
8 |
272-5542
|
Cable Bridge (OBSOLETE) |
2 |
|
|
9 |
272-5548
|
Handle bar |
1 |
|
|
10 |
272-5471
|
Lower housing switch |
1 |
|
|
11 |
272-5472
|
Upper housing switch (OBSOLETE) |
1 |
|
|
12 |
272-5473
|
Handle adjustment kit |
1 |
|
|
13 |
N/A
|
Not available |
1 |
(chock) |
|
14 |
272-5543
|
Cable support (OBSOLETE) |
1 |
|
|
19 |
272-5544
|
Control panel cable (OBSOLETE) |
1 |
|
|
20 |
N/A
|
Not available |
1 |
(cable holder) |
|
21 |
172-3698
|
Cap |
1 |
|
|
22 |
999-9104
|
Screw M4-.7 x 10mm hex head stainless steel |
1 |
|
|
23 |
272-5545
|
Washer (OBSOLETE) |
1 |
|
|
24 |
272-5546
|
Earthing decal (OBSOLETE) |
1 |
|
|
N/S |
272-5547
|
Cable extension |
1 |
|
|
N/S |
272-5549
|
Handle assembly hardware kit (OBSOLETE) |
1 |
|
|
