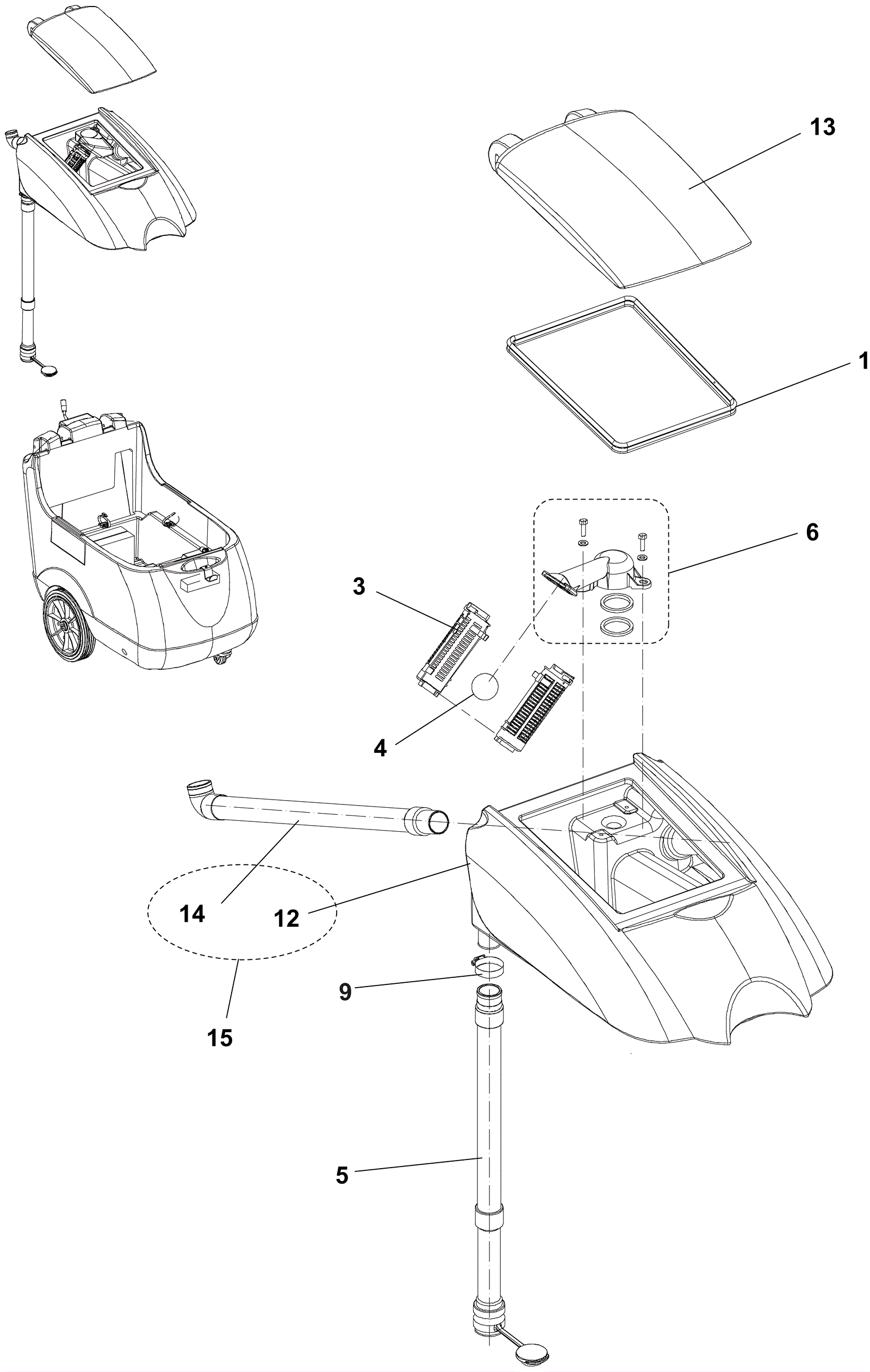

| # | Part | Description |
Req | Notes | Availability |
|---|
3 |
172-0517
|
Float cage half (2 required for full float cage) |
2 |
|
|
4 |
172-0192
|
Float ball |
1 |
|
|
5 |
272-9628
|
Drain hose kit |
1 |
|
|
6 |
270-8255
|
Float holder cage kit |
1 |
|
|
9 |
997-2000
|
Hose clamp |
1 |
(after sn 054619044) |
|
12 |
N/A
|
Not available |
1 |
(must order 15) |
|
13 |
572-3721
|
COVER TANK GREY PKD |
1 |
|
|
14a |
272-8578
|
Vacuum hose |
1 |
(after sn 054619044) |
|
14b |
272-8579
|
Vacuum hose |
1 |
(before sn 054619045) |
|
15 |
272-5466
|
Recovery tank assembly |
1 |
(includes 12, 14) |
|
N/S |
272-5467
|
Recovery tank hardware kit (OBSOLETE) |
1 |
|
|
N/S |
272-7206
|
Antifoaming filter |
1 |
(after sn 054619044) |
|
