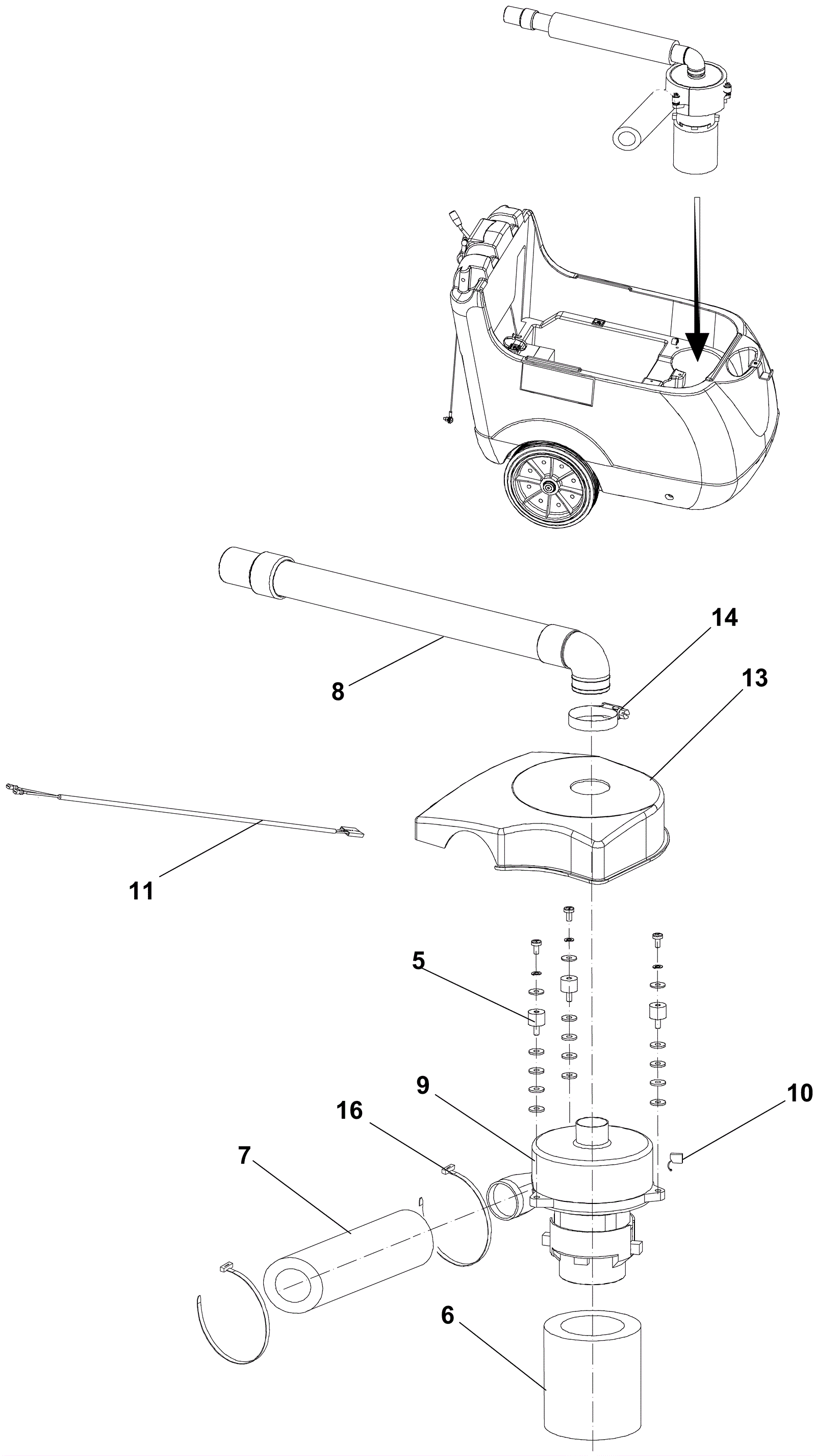

| # | Part | Description |
Req | Notes | Availability |
|---|
5 |
272-5455
|
Vibration damping M6 |
3 |
|
|
6 |
272-5456
|
Acoustic pipe insulation |
1 |
|
|
7 |
272-5457
|
Acoustic pipe insulation |
1 |
|
|
8 |
272-5458
|
Vacuum motor hose |
1 |
|
|
9 |
270-0103
|
115V vacuum motor |
1 |
|
|
10 |
272-5538
|
Carbon brush |
2 |
|
|
11 |
272-5539
|
Vacuum motor cable (OBSOLETE) |
1 |
|
|
13 |
272-5540
|
Motor protection |
1 |
|
|
14 |
997-2000
|
Hose clamp |
1 |
|
|
16 |
272-5462
|
Clamp 4.8 x 30 (white) (OBSOLETE) |
2 |
|
|
N/S |
272-5460
|
Vacuum system hardware kit |
1 |
|
|
