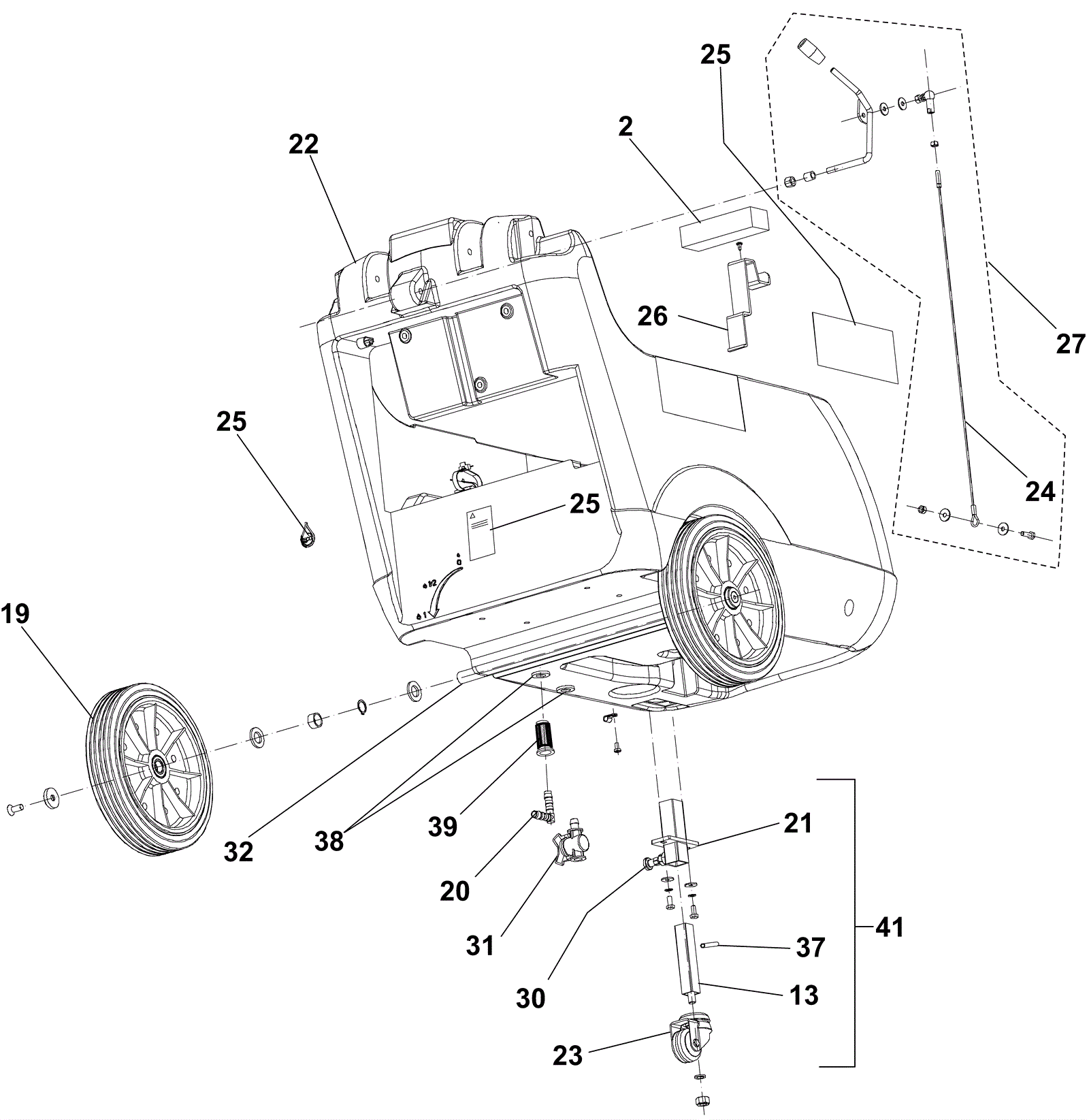

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
272-5440
|
Fresh water inlet sponge |
1 |
|
|
13 |
N/A
|
Not available |
1 |
(Supporting Rod) |
|
19 |
272-8628
|
Wheel (gray) |
2 |
|
|
20 |
272-5444
|
90 degree elbow (OBSOLETE) |
1 |
|
|
21 |
N/A
|
Not available |
1 |
(Support) |
|
22 |
272-5443
|
Solution tank |
1 |
|
|
23 |
N/A
|
Not available |
1 |
(Wheel) |
|
24 |
272-5446
|
Squeegee lift cable |
1 |
|
|
25 |
N/A
|
Not available |
1 |
(Decal kit) |
|
26 |
272-5448
|
Bracket (OBSOLETE) |
1 |
|
|
27 |
272-5449
|
Squeegee lifting kit |
1 |
(includes 24) |
|
30 |
272-5450
|
Joint |
1 |
|
|
31 |
272-5363
|
Drain valve |
1 |
|
|
32 |
272-8629
|
Wheel shaft hardware kit |
1 |
|
|
37 |
N/A
|
Not available |
1 |
(Pin) |
|
38 |
272-8076
|
Gasket |
2 |
|
|
39 |
172-4768
|
Solution tank filter |
1 |
|
|
41 |
272-5445
|
Machine support assembled |
1 |
(includes 13, 21, 23, 30 and 37) |
|
N/S |
272-5452
|
Solution tank hardware kit |
1 |
|
|
N/S |
272-5454
|
Rubber shock absorber (OBSOLETE) |
1 |
|
|
