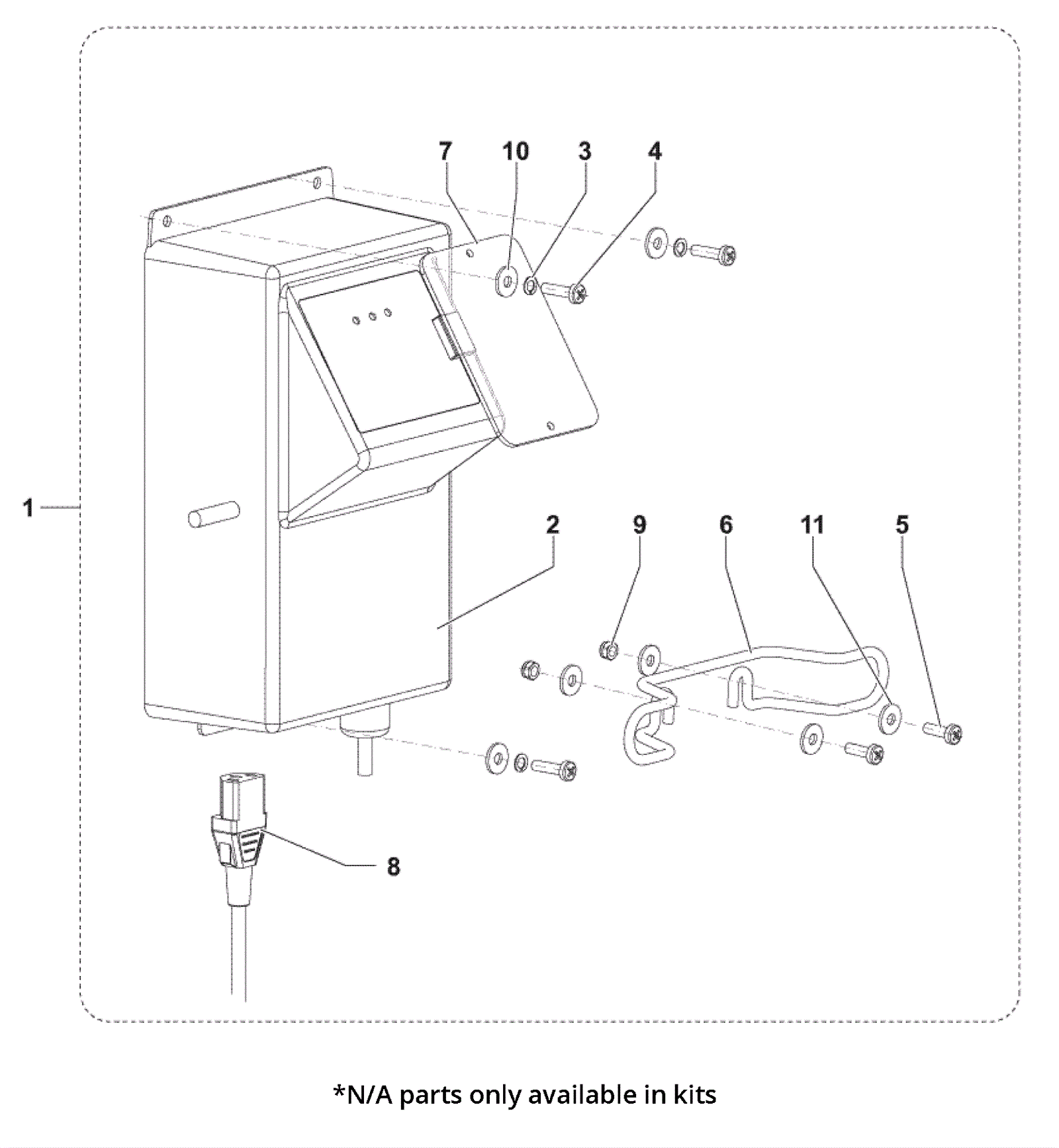

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
272-8144
|
24V onboard battery charger |
1 |
(includes 2-11) |
|
2 |
272-8144
|
24V onboard battery charger |
1 |
|
|
3 |
N/A
|
Not available |
3 |
(washer) (only available with 1) |
|
4 |
N/A
|
Not available |
3 |
(screw) (only available with 1) |
|
5 |
999-0531
|
Screw M5-.8 x 16mm pan head slotted zinc |
2 |
|
|
6 |
372-1321
|
Cable support |
1 |
|
|
7 |
272-0640
|
Inspection plate |
1 |
|
|
8 |
272-9290
|
Onboard charger cord |
1 |
|
|
9 |
472-3354
|
NUT SELF L. M5 UNI7474 10 PCS |
2 |
|
|
10 |
N/A
|
Not available |
3 |
(washer) (only available in with 1) |
|
11 |
999-9100
|
Washer M5 flat stainless steel |
4 |
|
|
