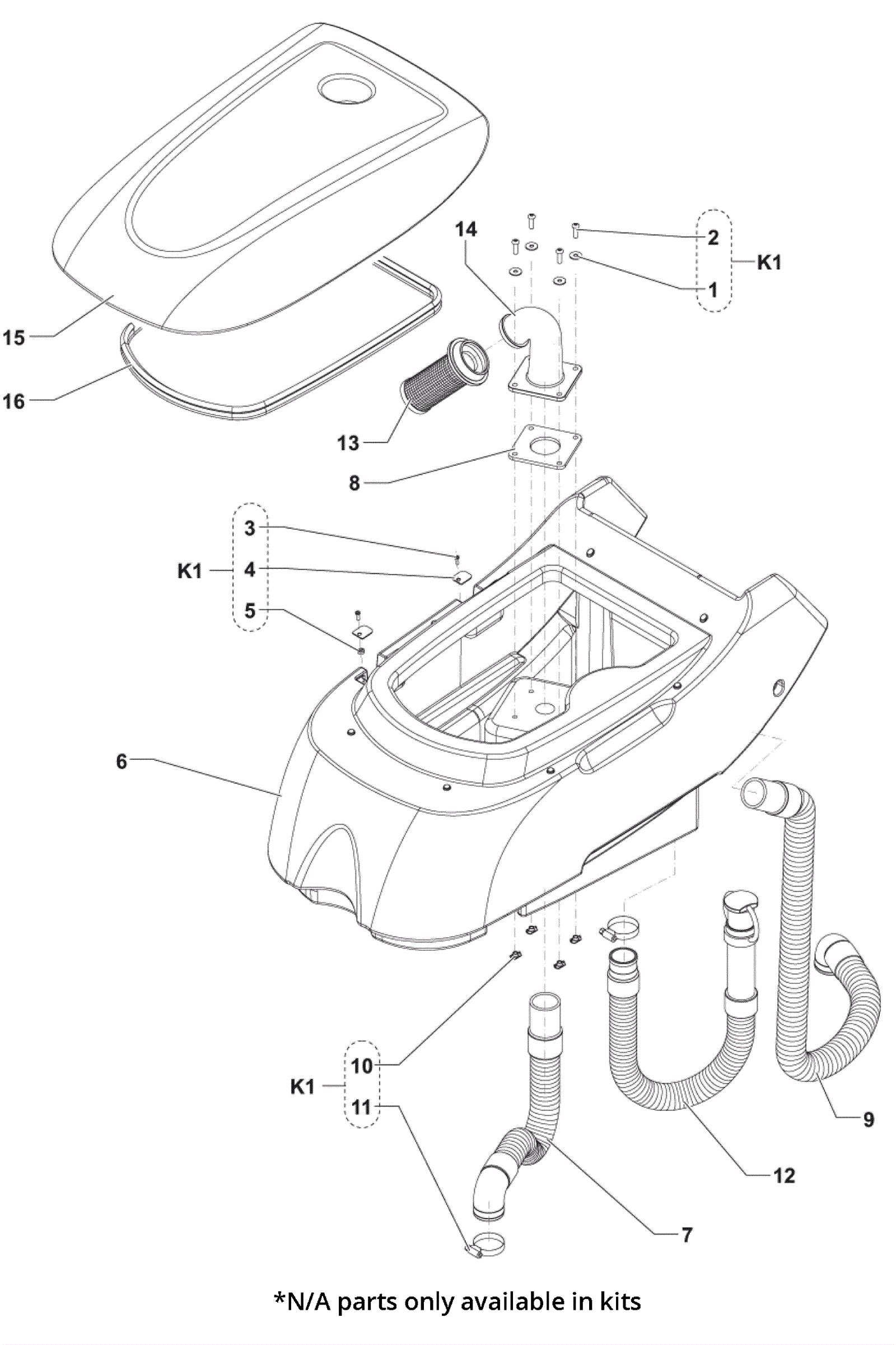

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
4 |
(washer) (only available in Kit1) |
|
2 |
N/A
|
Not available |
4 |
(screw) (only available in Kit1) |
|
3 |
N/A
|
Not available |
2 |
(screw) (only available in Kit1) |
|
4 |
N/A
|
Not available |
2 |
(tank cover plate) (only available in Kit1) |
|
5 |
N/A
|
Not available |
1 |
(flanged bushing) (only available in Kit1) |
|
6 |
272-9624
|
Recovery tank |
1 |
|
|
7 |
272-9625
|
Vacuum motor hose |
1 |
|
|
8 |
272-9626
|
Gasket float cage holder |
1 |
|
|
9 |
272-9627
|
Squeegee hose |
1 |
|
|
10 |
N/A
|
Not available |
4 |
(nut) (only available in Kit1) |
|
11 |
N/A
|
Not available |
2 |
(clamp hose) (only available in Kit1) |
|
12 |
272-9628
|
Drain hose kit |
1 |
|
|
13 |
272-9629
|
Float shut off |
1 |
|
|
14 |
272-9630
|
Elbow adaptor float |
1 |
|
|
15 |
272-9631
|
Tank cover |
1 |
|
|
16 |
272-9632
|
Gasket (OBSOELTE) |
1 |
|
|
N/S |
272-7206
|
Antifoaming filter |
1 |
|
|
Kit1 |
272-9633
|
Recovery tank hardware kit |
1 |
(includes 1-5 and 10-11) |
|
