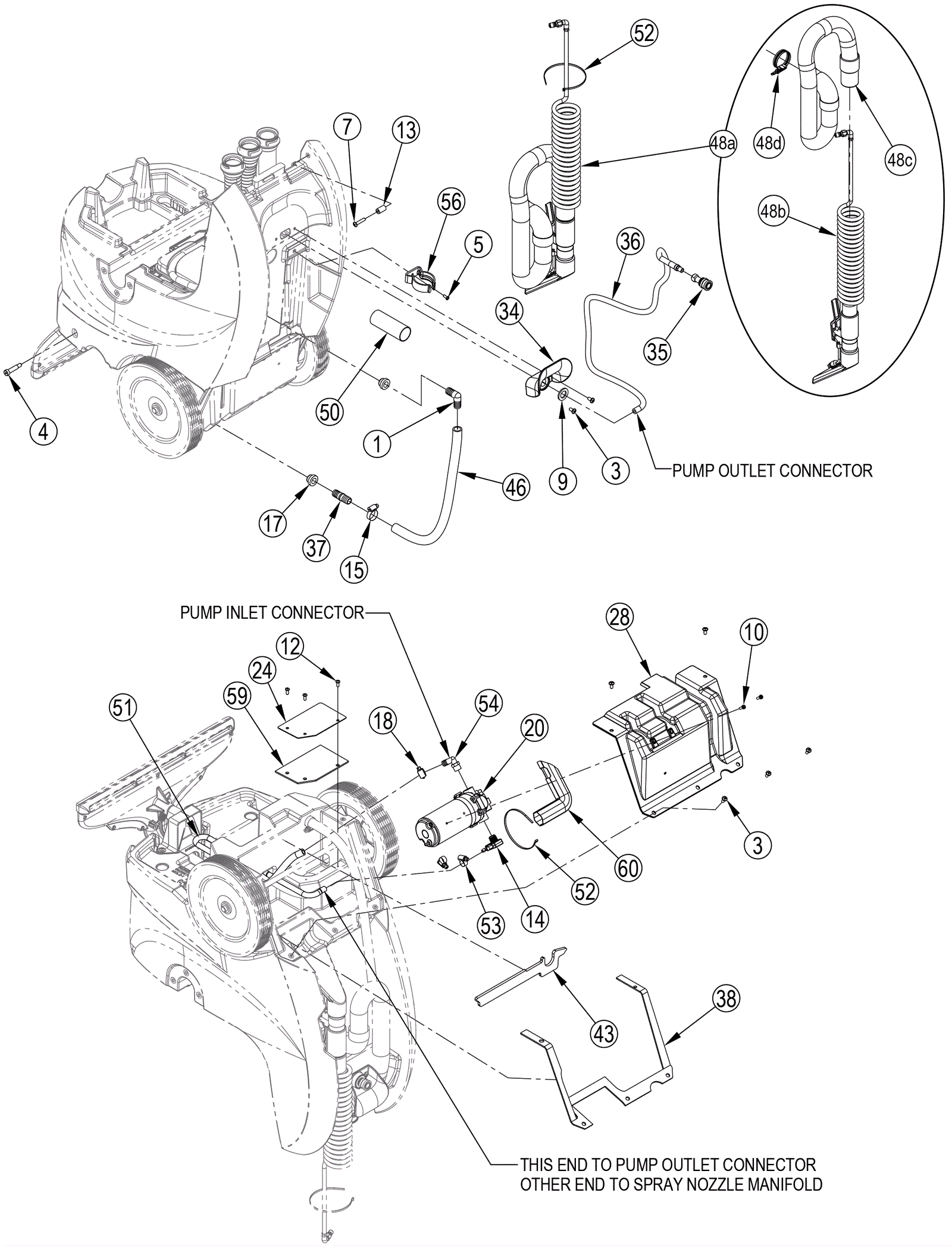

ES400 XLP Solution Assembly 2

#PartDescriptionPriceReqNotesAvailability
1 572-3946 5/8 inch elbow $12.31 1 usually ships 17-28 days
3 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 7 ships same day
4 172-5131 Screw .38 x 1 1/4 x 5/16-18 socket shoulder $12.31 1 usually ships 17-28 days
5 272-6384 Screw 10-24 x .38 pan head phillips loc SS $9.26 1 usually ships 17-28 days
7 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel $1.07 2 ships same day
9 272-7427 Washer 3/4 x 1 1/4 x 1/8 flat $10.85 1 usually ships 17-28 days
10 999-1104 Screw 10-24 x 3/4 pan head phillips thread rolling zinc $0.99 2 ships same day
12 272-9978 Screw 10-14 x 1/2 pan head phillips plastite $10.85 4 usually ships 17-28 days
13 172-7628 Spacer 1/4 x 1/2 x 7/8 $6.22 2 usually ships 1-5 days
14 272-2775 Fitting barb kit $99.02 1 ships same day
16 472-4970 Inlet seal $61.49 1 usually ships 17-28 days
17 170-1387 Bushing fitting $6.22 2 ships same day
18 172-8494 #6 hose clamp SAE $10.85 2 usually ships 1-5 days
20 472-5542 115V 120PSI pump $352.17 1 ships same day
24 472-5556 Vacuum inlet cover $15.48 1 usually ships 17-28 days
28 472-5565 Back cover $48.18 1 usually ships 17-28 days
34 472-5602 Hose storage hook $9.26 1 usually ships 17-28 days
35 472-5603 Quick disconnect socket $18.38 1 usually ships 17-28 days
36 472-5606 Solution hose assembly $44.58 1 usually ships 17-28 days
37 472-5609 Barb $9.26 1 usually ships 17-28 days
38 472-5616 Backpanel gasket set $9.26 1 usually ships 17-28 days
43 472-5624 Backpanel gasket $9.26 1 usually ships 17-28 days
46 472-5629 Hose $12.31 1 usually ships 17-28 days
48a 472-5640 HAND TOOL/HOSES ASSEMBLY $375.16 1 (includes 48b and 48c) usually ships 17-28 days
48b 472-5599 HOSE ASSEMBLY-HAND TOOL $34.14 1 usually ships 17-28 days
48c 472-5646 Clamp $5.39 1 usually ships 17-28 days
50 472-7577 Tube $10.85 1 usually ships 17-28 days
51 272-9373 Hose $10.85 1 usually ships 17-28 days
52 272-7413 Cable tie $12.31 3 usually ships 1-5 days
53 170-5169 Hose clamp SAE #4 $10.85 2 usually ships 1-5 days
54 172-4056 90 degree barbed elbow $10.85 1 usually ships 17-28 days
56 164-0101 Hose holder $12.31 1 ships same day
60 572-3949 Pump boot $8.69 1 usually ships 17-28 days
