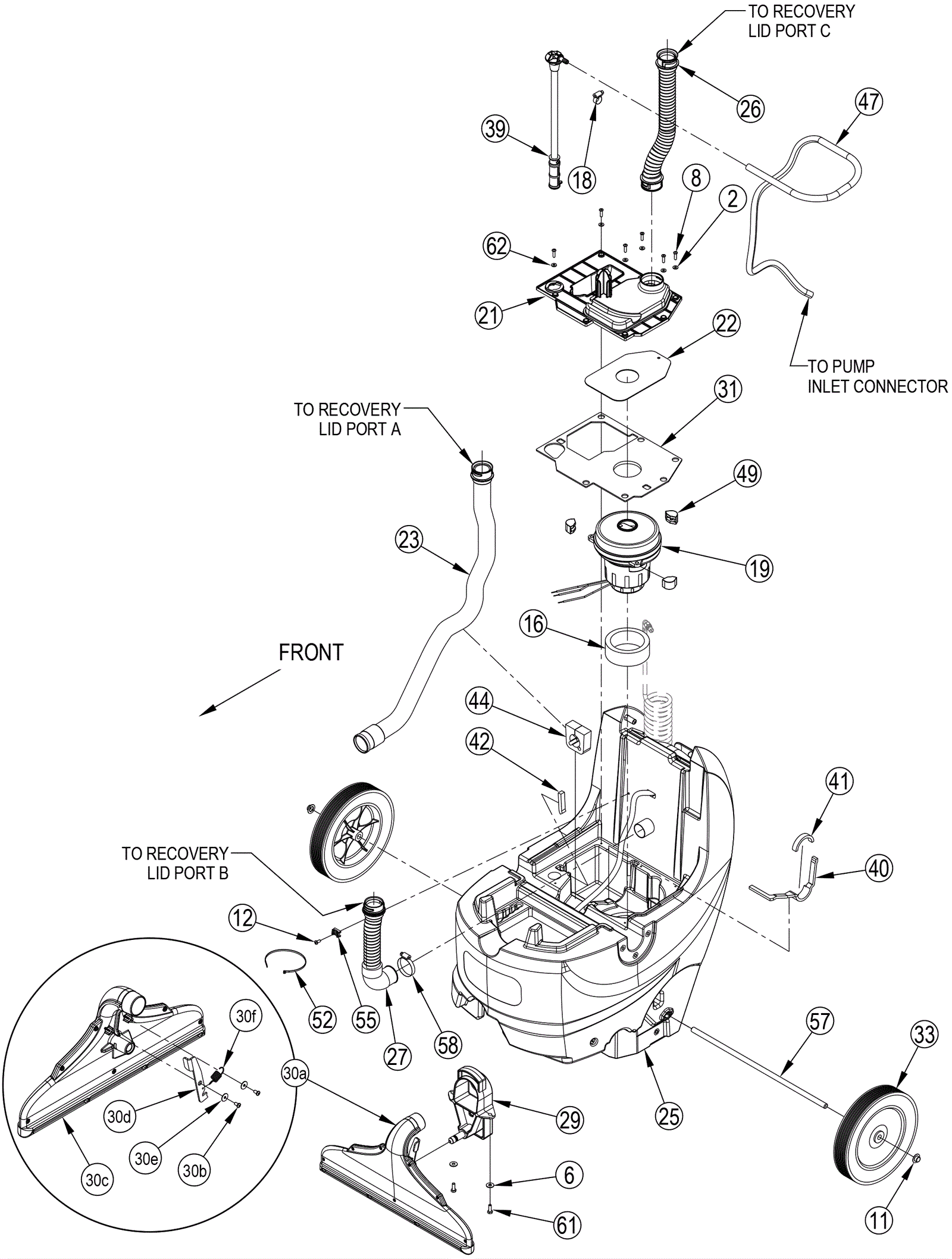

ES400 XLP Solution Assembly 1

#PartDescriptionPriceReqNotesAvailability
2 999-1862 Washer #10 flat SAE stainless steel $0.99 5 ships same day
6 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
8 272-9542 Screw 10-14 x 3/4 pan head plastite $12.89 6 ships same day
11 172-4017 1/2 inch push cap $10.57 2 ships same day
12 272-9978 Screw 10-14 x 1/2 pan head phillips plastite $11.35 4 usually ships 13-18 days
16 472-4970 Inlet seal $64.38 1 usually ships 13-18 days
18 172-8494 #6 hose clamp SAE $11.35 2 usually ships 1-5 days
19a 472-5540 120V vacuum motor $312.82 1 ships same day
19b 472-5587 Carbon brush kit (pkg of 2) $22.58 1 (for 19a) usually ships 13-18 days
21 472-5549 Vacuum motor cover $50.45 1 usually ships 13-18 days
22 472-5550 Vaccum motor plate $22.58 1 usually ships 13-18 days
23 472-5551 Vaccum hose assembly $28.94 1 ships same day
25 472-5559 TANK-SOLUTION-18 $429.31 1 usually ships 13-18 days
26 472-5561 Vacuum hose assembly $19.25 1 ships same day
27 472-5562 Vacuum hose assembly with elbow $22.58 1 ships same day
29 472-5569 Shoe bracket $35.75 1 ships same day
30 472-5576 SHOE/LATCH ASSEMBLY-18 $135.11 1 usually ships 13-18 days
30a 999-1833 Screw 10-14 x 3/8 pan head phillips stainless steel $0.99 1 ships same day
30b 472-5533 Shoe assembly $117.26 2 ships same day
30c 572-3947 Shoe latch $12.56 1 usually ships 13-18 days
30d 572-3948 Washer 10 x 11/1 flat stainless steel Call for price 2 usually ships 13-18 days
30e 272-8226 Extension spring $11.35 1 ships same day
31 472-5577 Vacuum motor cover gasket $14.41 1 ships same day
33 472-5596 Wheel $48.17 2 usually ships 13-18 days
39 472-5618 Solution filter assembly $17.74 1 ships same day
40 472-5621 Vacuum chamber gasket $9.70 1 usually ships 13-18 days
41 472-5622 Vacuum exhaust port gasket $9.70 1 usually ships 13-18 days
42 472-5623 Vaccum chamber side gasket $9.70 1 usually ships 13-18 days
44 472-5627 Vaccum hose gasket $9.70 1 usually ships 13-18 days
47 472-5639 Hose $19.25 1 usually ships 13-18 days
49 272-2108 Vibration mount $14.41 3 ships same day
52 272-7413 Cable tie $12.89 3 usually ships 1-5 days
55 172-4710 Wire tie holder $12.89 1 usually ships 13-18 days
57 209-0356 Axle rod $17.74 1 usually ships 13-18 days
58 172-8493 #24 hose clamp SAE $11.35 1 usually ships 1-5 days
61 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 usually ships 16-20 days
62 172-2311 Washer 9/16 $12.89 1 usually ships 13-18 days
