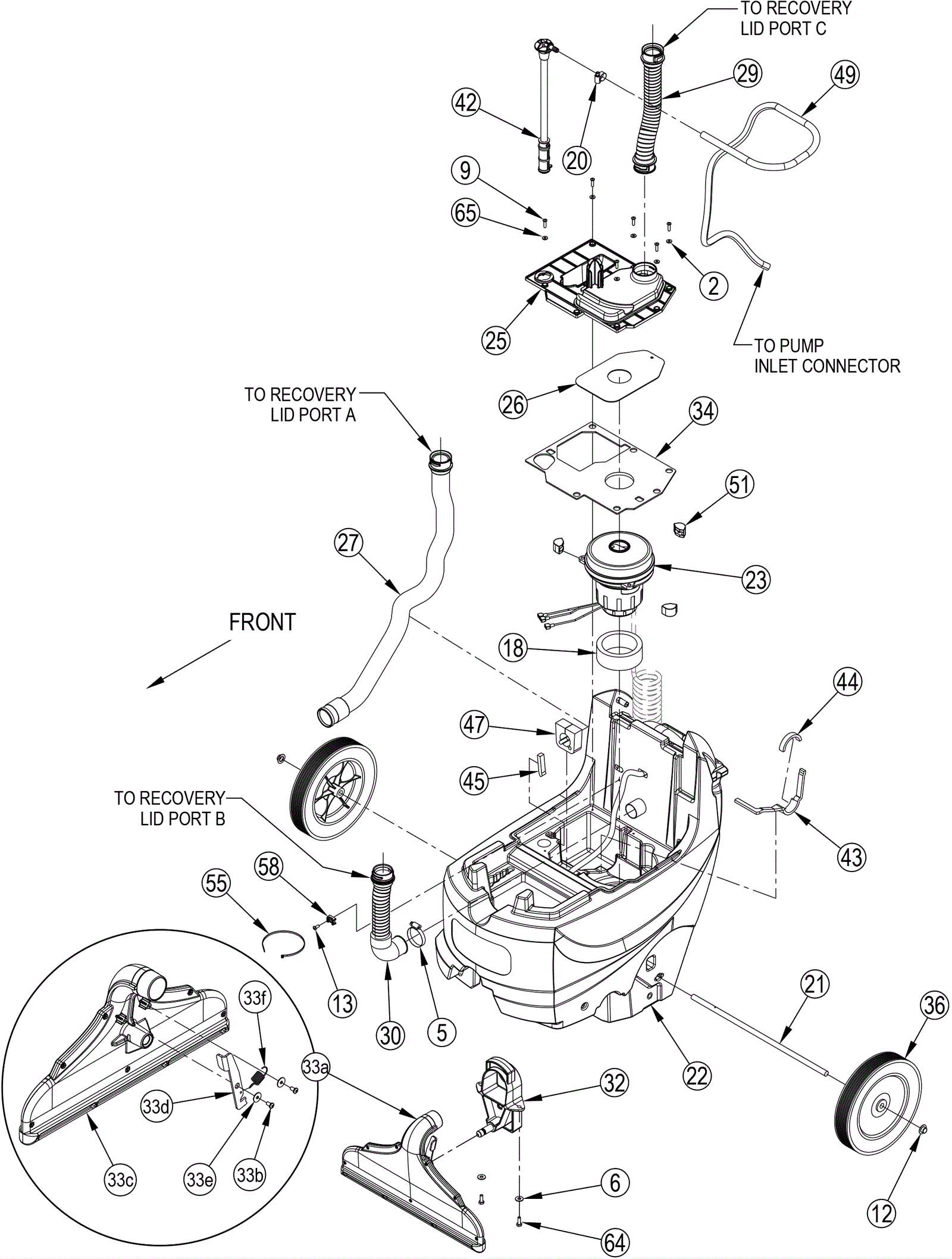

ES300 XP Solution Assembly 1

#PartDescriptionPriceReqNotesAvailability
2 999-1862 Washer #10 flat SAE stainless steel $0.99 6 ships same day
5 172-8493 #24 hose clamp SAE $10.85 1 usually ships 1-5 days
6 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
9 272-9542 Screw 10-14 x 3/4 pan head plastite $12.31 6 ships same day
12 172-4017 1/2 inch push cap $10.57 2 usually ships 1-5 days
13 272-9978 Screw 10-14 x 1/2 pan head phillips plastite $10.85 4 usually ships 13-18 days
18 472-4970 Inlet seal $61.49 1 usually ships 13-18 days
20 172-8494 #6 hose clamp SAE $10.85 2 usually ships 1-5 days
21 272-0533 Axle $13.76 1 usually ships 13-18 days
22 472-5528 TANK-SOLUTION-16 $513.19 1 usually ships 13-18 days
23a 472-5540 120V vacuum motor $298.77 1 ships same day
23b 472-5541 MOTOR-VACUUM-230V $261.02 1 usually ships 13-18 days
23c 472-5587 Carbon brush kit (pkg of 2) $21.57 1 (for 23a) usually ships 13-18 days
25 472-5549 Vacuum motor cover $48.18 1 usually ships 13-18 days
26 472-5550 Vaccum motor plate $21.57 1 usually ships 13-18 days
27 472-5551 Vaccum hose assembly $27.64 1 ships same day
29 472-5561 Vacuum hose assembly $18.38 1 ships same day
30 472-5562 Vacuum hose assembly with elbow $21.57 1 ships same day
32 472-5569 Shoe bracket $34.14 1 ships same day
33a 472-5571 Shoe latch assembly $126.74 1 (includes 33b-33f) usually ships 13-18 days
33b 999-1833 Screw 10-14 x 3/8 pan head phillips stainless steel $0.99 2 ships same day
33c 472-5533 Shoe assembly $111.99 1 ships same day
33d 572-3947 Shoe latch $12.00 1 usually ships 13-18 days
33e 572-3948 Washer 10 x 11/1 flat stainless steel Call for price 2 usually ships 13-18 days
33f 272-8226 Extension spring $10.85 1 ships same day
34 472-5577 Vacuum motor cover gasket $14.91 1 ships same day
36 472-5596 Wheel $46.00 2 usually ships 13-18 days
42 472-5617 Solution filter assembly $40.48 1 ships same day
43 472-5621 Vacuum chamber gasket $9.26 1 usually ships 13-18 days
44 472-5622 Vacuum exhaust port gasket $9.26 1 usually ships 13-18 days
45 472-5623 Vaccum chamber side gasket $9.26 1 usually ships 13-18 days
47 472-5627 Vaccum hose gasket $9.26 1 usually ships 13-18 days
49 472-5639 Hose $18.38 1 usually ships 13-18 days
51 272-2108 Vibration mount $13.76 3 ships same day
55 272-7413 Cable tie $12.31 3 usually ships 1-5 days
58 172-4710 Wire tie holder $12.31 1 usually ships 13-18 days
64 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 usually ships 16-20 days
65 172-2311 Washer 9/16 $12.31 1 usually ships 13-18 days
N/S 572-3950 Vac inlet cover gasket $4.86 1 usually ships 13-18 days
