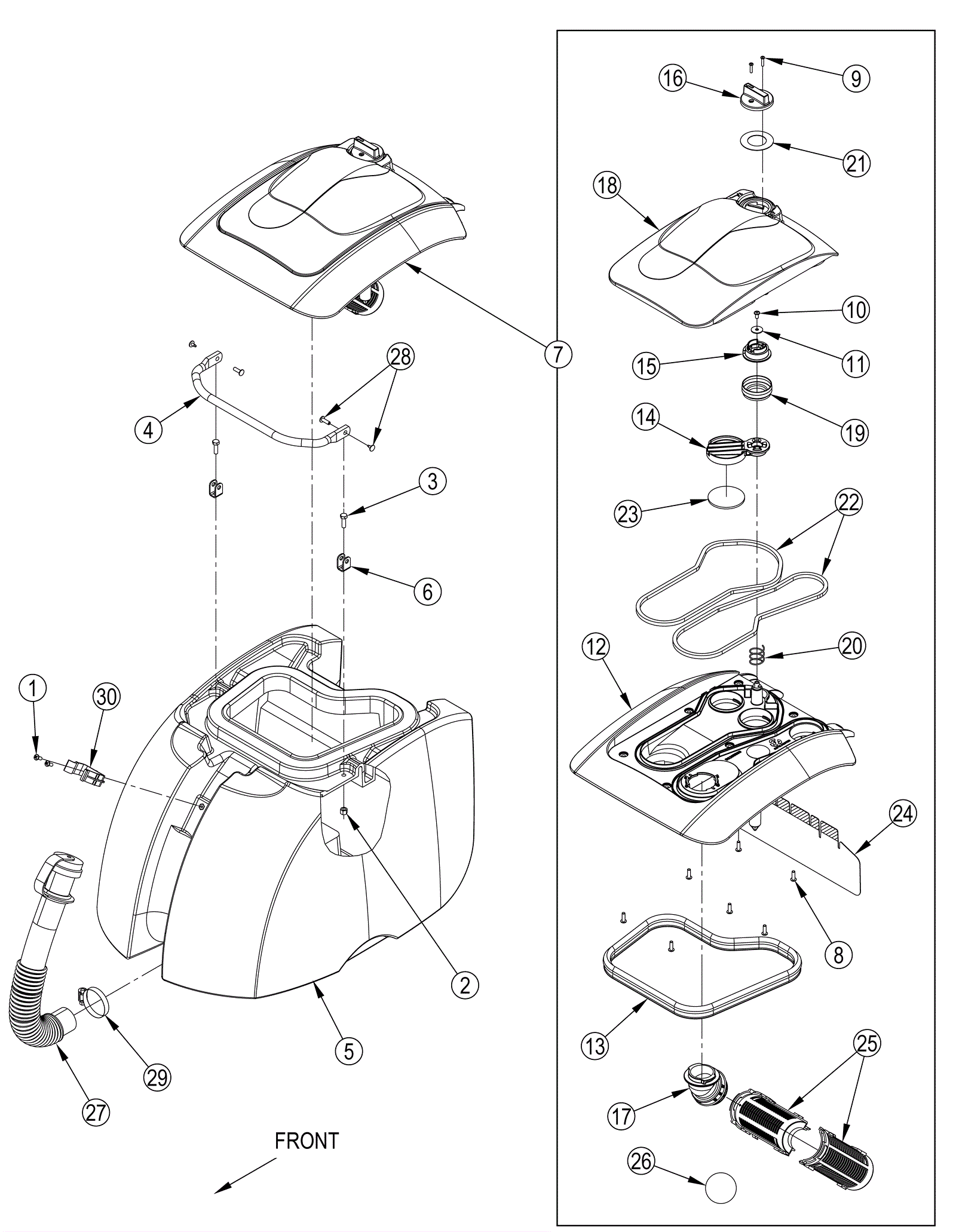

ES300 ST Recovery Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 2 ships same day
2 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
3 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
4 572-3941 Tank handle $7.47 1 usually ships 16-41 days
5 472-5529 RECOVERY TANK-16 $290.92 1 (ES300 ST, ES300 XP) usually ships 16-41 days
6 472-5564 Handle bracket retainer $9.02 2 (ES400 XLP) usually ships 16-41 days
7 N/A Not available Call for price (recovery tank lid assembly) (includes 8-26) usually ships 3-26 days
8 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 7 ships same day
9 999-1362 Screw 6-18 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
10 272-6384 Screw 10-24 x .38 pan head phillips loc SS $9.02 1 usually ships 16-41 days
11 181-0753 Washer 13/64 x 3/4 x 1/2 flat $11.99 1 usually ships 16-41 days
12 472-5553 Recovery tank lid $72.26 1 usually ships 16-41 days
13 472-5555 Recovery tank gasket $19.45 1 usually ships 16-41 days
14 572-3943 Valve paddle $6.05 1 usually ships 16-41 days
15 572-3944 Valve actuator $6.05 1 usually ships 16-41 days
16 572-3945 Valve knob $5.39 1 usually ships 16-41 days
17 472-5572 Ball float adapter $9.02 1 usually ships 16-41 days
18 472-5573 Recovery lid $37.61 1 usually ships 16-41 days
19 472-5585 Diverter valve seal $11.99 1 usually ships 16-41 days
20 472-5607 Compression spring $9.02 1 usually ships 16-41 days
21 472-5608 Selector knob seal $9.02 1 usually ships 16-41 days
22 472-5625 Lid gasket $9.02 2 usually ships 16-41 days
23 472-5626 Paddle gasket $9.02 1 usually ships 16-41 days
24 472-5645 Flexible lid barrier $15.07 1 ships same day
25 172-0517 Float cage half (2 required for full float cage) $17.90 2 usually ships 16-41 days
26 172-0192 Float ball $10.52 1 usually ships 18-27 days
27 472-5589 Drain hose $25.36 1 usually ships 16-41 days
28 472-5631 Binding post $6.05 2 usually ships 16-41 days
29 172-8493 #24 hose clamp SAE $10.56 1 usually ships 1-5 days
30 272-0547 Plastic clamp $22.41 1 ships same day
