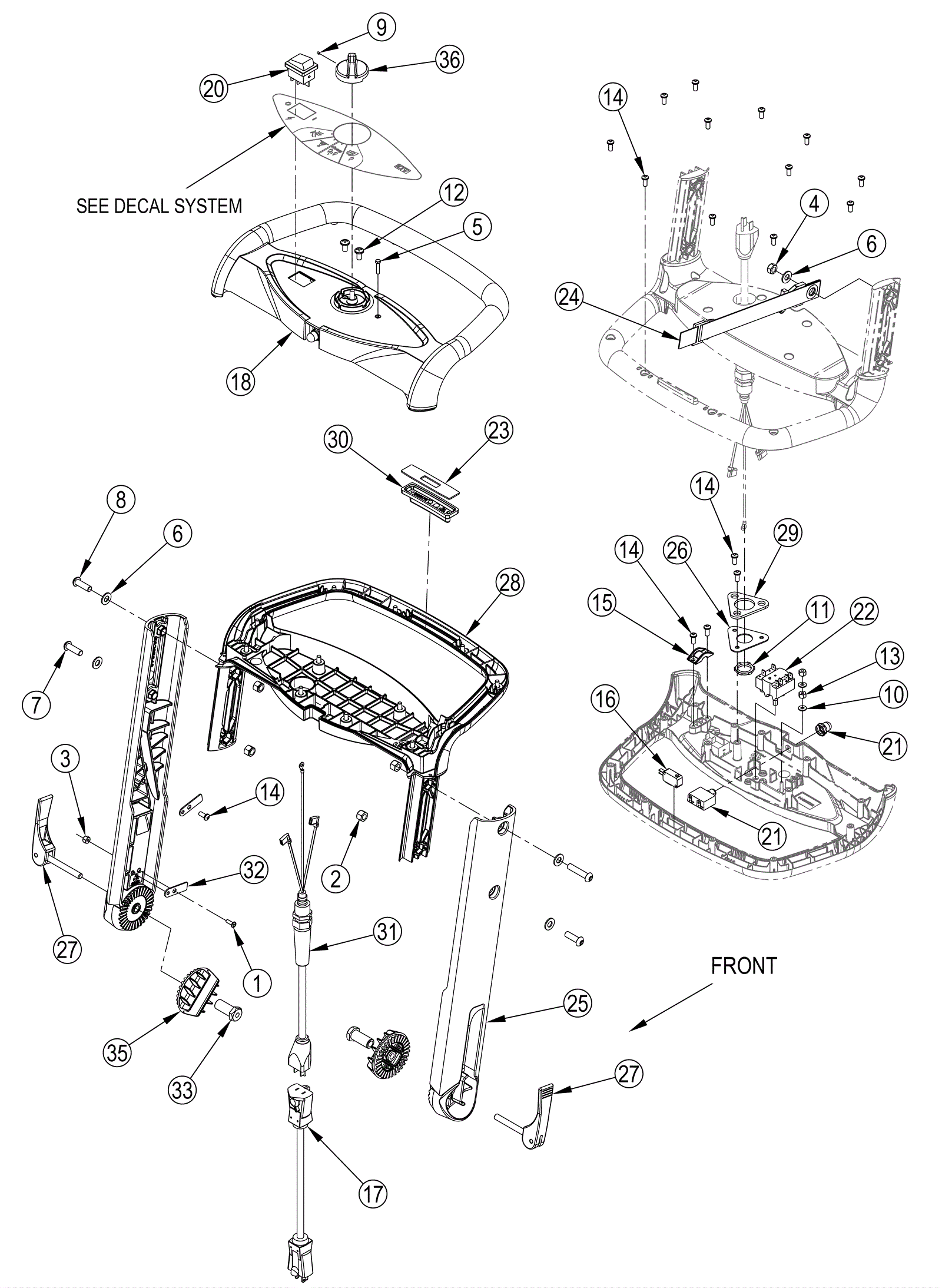

ES300 XP Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel $0.99 1 ships same day
2 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
3 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel $0.99 1 ships same day
4 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 ships same day
5 172-0587 Bolt 8-32 x 3/4 hex head stainless steel $10.85 1 usually ships 12-18 days
6 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 5 ships same day
7 999-1507 Screw 5/16-18 x 1 button head socket stainless steel $1.88 3 ships same day
8 999-0131 Screw 5/16-18 x 1 1/2 socket head stainless steel $2.86 1 ships same day
9 372-1350 Screw M3-.5 x 3mm socket set stainless steel $6.22 1 usually ships 12-18 days
10 999-1083 Washer #8 internal star lock stainless steel $0.99 2 ships same day
11 172-4536 Nut 1/2-14 conduit lock $12.31 1 usually ships 12-18 days
12 172-4973 Screw 6 x 3/8 pan head phillips type B $10.85 2 usually ships 1-5 days
13 999-1819 Nut 8-32 hex stainless steel $0.99 2 usually ships 1-5 days
14 272-9978 Screw 10-14 x 1/2 pan head phillips plastite $10.85 17 usually ships 12-18 days
15 172-1293 Power cord clamp $13.76 1 usually ships 1-5 days
16 272-0503 Snap action switch $13.17 1 usually ships 12-18 days
17a 272-1097 14/3 extension cord 50 foot $127.61 1 (OEM) usually ships 12-18 days
17b 991-5001 14/3 extension cord 50 foot (yellow) $103.23 1 (NON-OEM) ships same day
18 472-5535 HANDLE-TOP COVER $40.08 1 ships same day
20 472-5537 Rocker switch $12.31 1 ships same day
21 472-5538 5A circuit breaker with boot $12.31 1 usually ships 12-18 days
22 472-5539 SWITCH-ROTARY $41.54 1 usually ships 12-18 days
23 472-5545 Switch plate retainer $9.26 1 usually ships 12-18 days
24 472-5567 STRAP/BUCKLE ASSEMBLY $9.26 1 usually ships 12-18 days
25 472-5570 Handle tube ratchet $24.60 2 usually ships 12-18 days
26 472-5575 Cord mounting plate $9.26 1 usually ships 12-18 days
27 472-5586 Lever locking assembly $32.69 2 usually ships 12-18 days
28 472-5593 Bottom handle cover $40.08 1 usually ships 12-18 days
29 472-5597 Cord mount gasket $9.26 1 usually ships 12-18 days
30 472-5611 Handle button $9.26 1 usually ships 12-18 days
31 472-5614 Pigtail cord $14.91 1 ships same day
32 472-5632 Harness retainer $9.26 2 usually ships 12-18 days
33 472-5634 Cam adjustment busing $19.98 2 usually ships 12-18 days
35 572-3934 Handle adjuster ratchet $9.26 2 usually ships 12-18 days
36 272-8643 Knob control $9.26 1 usually ships 12-18 days
N/S 472-5536 Main harness $130.50 1 usually ships 12-18 days
N/S 472-5642 JUMPER-18AWG WIRE $9.26 2 usually ships 12-18 days
