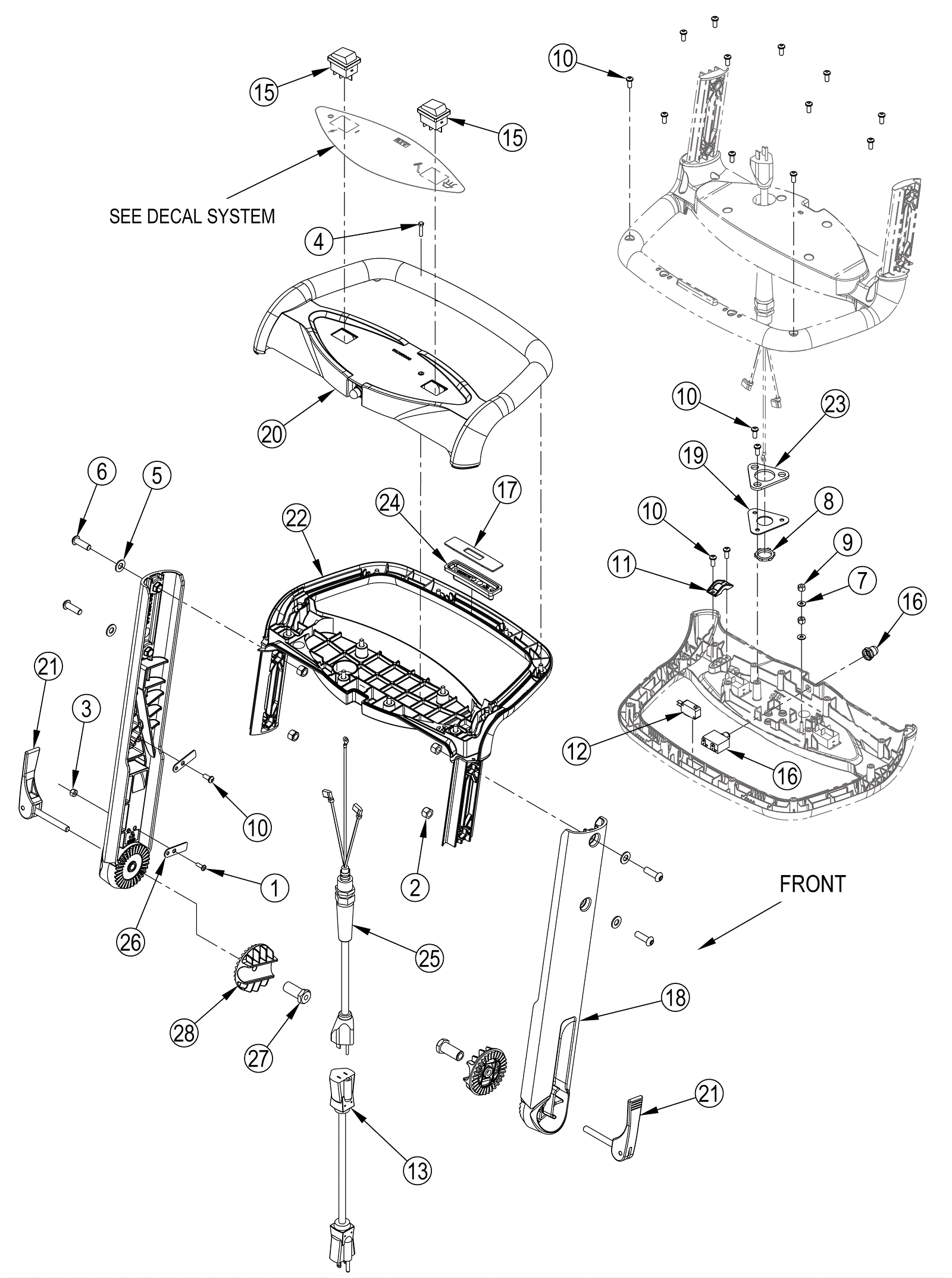

ES300 ST Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel $0.99 1 ships same day
2 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
3 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel $0.99 1 ships same day
4 172-0587 Bolt 8-32 x 3/4 hex head stainless steel $11.35 1 usually ships 13-18 days
5 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
6 999-1507 Screw 5/16-18 x 1 button head socket stainless steel $1.88 4 ships same day
7 999-1083 Washer #8 internal star lock stainless steel $0.99 2 ships same day
8 172-4536 Nut 1/2-14 conduit lock $14.18 1 usually ships 13-18 days
9 999-1819 Nut 8-32 hex stainless steel $0.99 2 usually ships 1-5 days
10 272-9978 Screw 10-14 x 1/2 pan head phillips plastite $11.35 17 usually ships 13-18 days
11 172-1293 Power cord clamp $14.41 1 usually ships 1-5 days
12 272-0503 Snap action switch $13.78 1 usually ships 13-18 days
13a 272-1097 14/3 extension cord 50 foot $133.61 1 (OEM) usually ships 13-18 days
13b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) ships same day
15 372-4035 Rocker switch $12.89 2 ships same day
16 472-5538 5A circuit breaker with boot $12.89 1 usually ships 13-18 days
17 472-5545 Switch plate retainer $9.70 1 usually ships 13-18 days
18 472-5570 Handle tube ratchet $25.75 2 usually ships 13-18 days
19 472-5575 Cord mounting plate $9.70 1 usually ships 13-18 days
20 472-5578 Top handle cover $41.97 1 ships same day
21 472-5586 Lever locking assembly $34.23 2 usually ships 13-18 days
22 472-5593 Bottom handle cover $41.97 1 ships same day
23 472-5597 Cord mount gasket $9.70 1 usually ships 13-18 days
24 472-5611 Handle button $9.70 1 usually ships 13-18 days
25 472-5614 Pigtail cord $15.61 1 ships same day
26 472-5632 Harness retainer $9.70 2 usually ships 13-18 days
27 472-5634 Cam adjustment busing $20.91 2 usually ships 13-18 days
28 572-3934 Handle adjuster ratchet $9.70 2 usually ships 13-18 days
N/S 472-5536 Main harness $136.64 1 usually ships 13-18 days
