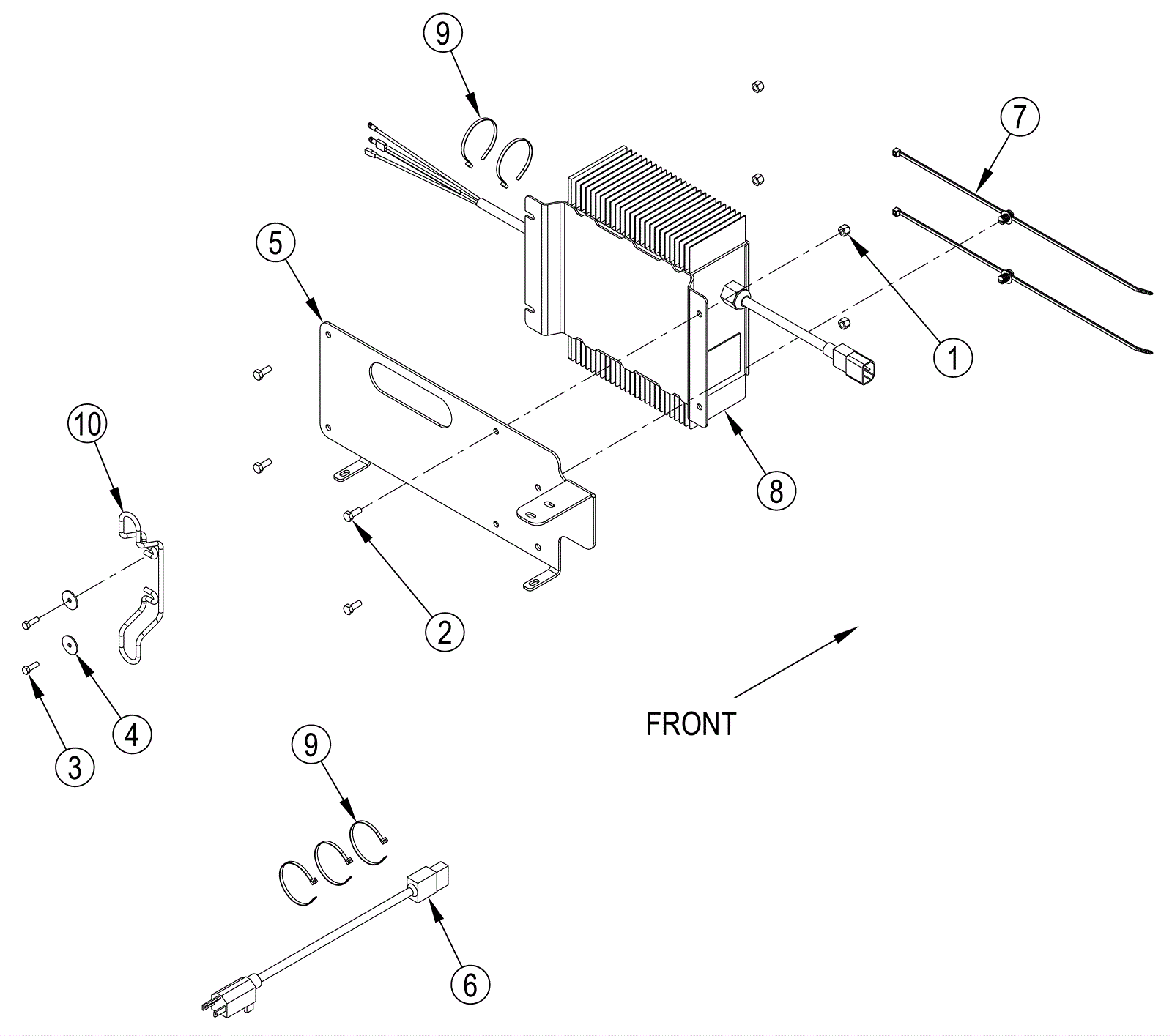

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
4 |
|
|
2 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
4 |
|
|
3 |
472-3552
|
SCR-HEX LOC SS M5-0.8 X 16MM |
2 |
|
|
4 |
999-0588
|
Washer 7/8 flat stainless steel |
2 |
|
|
5 |
472-4911
|
BRACKET-ON BOARD CHARGER |
1 |
|
|
6a |
472-4912
|
CORD-CHARGER-YELLOW-US |
1 |
(OEM) |
|
6b |
164-6477
|
Onboard charger extension cord |
1 |
(NON-OEM) |
|
7 |
472-5079
|
CABLE TIE-MOUNT |
2 |
|
|
8 |
172-0059
|
36V onboard charger |
1 |
|
|
9 |
372-2096
|
Cable tie |
5 |
|
|
10 |
272-0659
|
On-board charger cord wrap |
1 |
|
|
