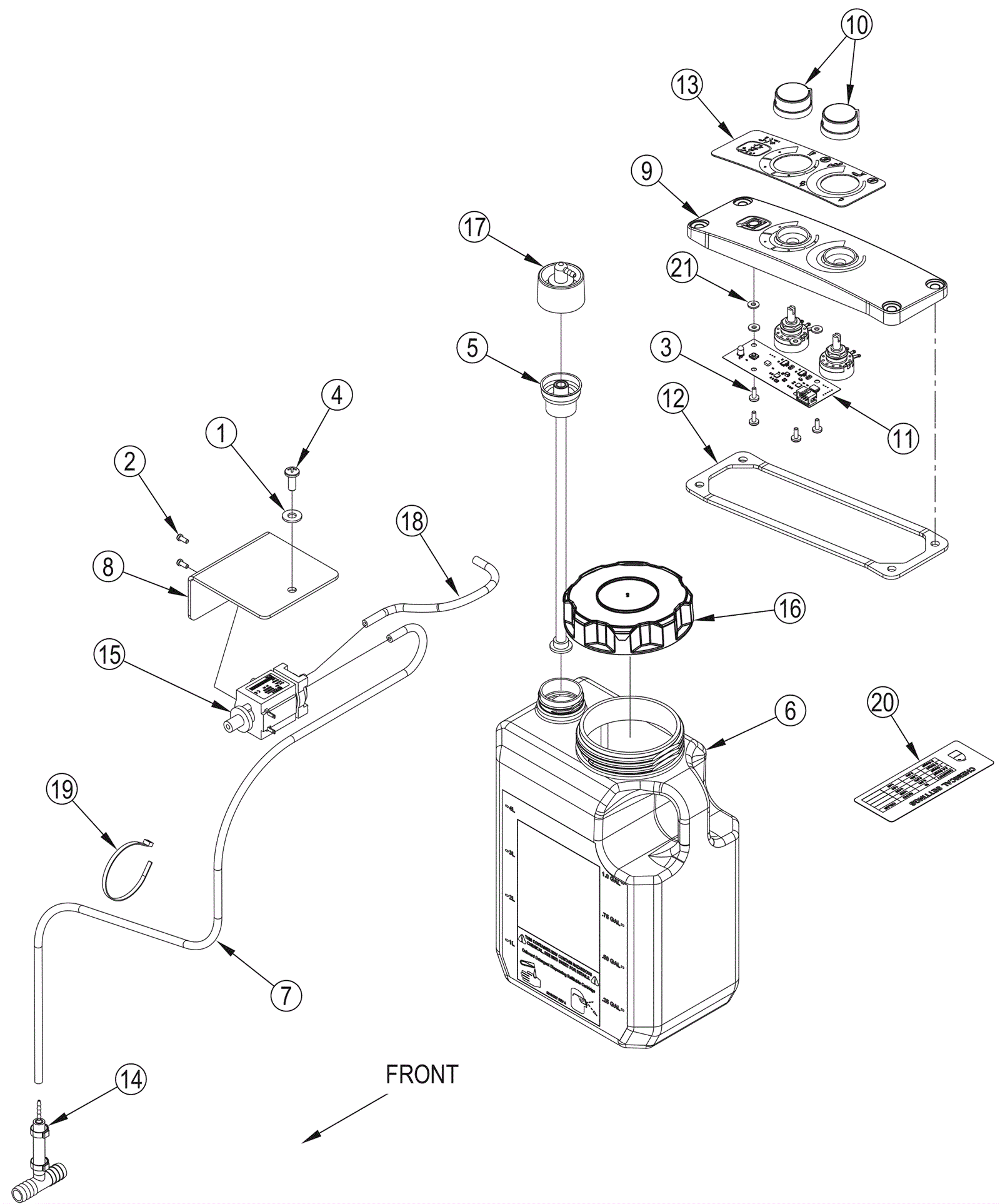

SC900 Detergent Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
2 572-4224 Screw M3 X 7 Self thread torx plastic $6.05 2 usually ships 16-41 days
3 172-4973 Screw 6 x 3/8 pan head phillips type B $10.56 4 usually ships 1-5 days
4 999-1257 Screw M6-1 x 16mm pan head Phillips $1.47 1 ships same day
5 272-6752 Dry brake insert $6.05 1 usually ships 16-41 days
6 272-6762 Chemical bottle assembly $55.65 1 usually ships 16-41 days
7 272-7682 Hose 1/8 x 32 inch $55.65 1 usually ships 1-5 days
8 272-9829 Pump mount bracket $34.66 1 usually ships 1-5 days
9 472-4895 DETERGENT MODULE COVER $16.50 1 usually ships 16-41 days
10 472-4904 KNOB-1.25 X .63 $23.95 2 usually ships 16-41 days
11 472-4905 MODULE-DETERGENT $485.19 1 usually ships 16-41 days
12 472-4913 DETERGENT COVER GASKET $9.02 1 usually ships 16-41 days
13 572-3955 Detergent module decal $7.47 1 usually ships 16-41 days
14 272-8135 Tee assembly $11.99 1 usually ships 1-5 days
15 272-2175 Chemical pump $290.92 1 usually ships 16-41 days
16 272-2180 Solution fill cap $7.47 1 usually ships 16-41 days
17 272-2182 Dry break cap $33.24 1 usually ships 16-41 days
18 272-2183 7 inch chemical resistant hose $10.56 1 ships same day
19 372-2096 Cable tie $11.99 1 usually ships 16-41 days
20 572-3956 Chemical settings label $11.99 1 usually ships 16-41 days
21 999-1215 Washer #6 SAE flat zinc plated $0.99 4 ships same day
