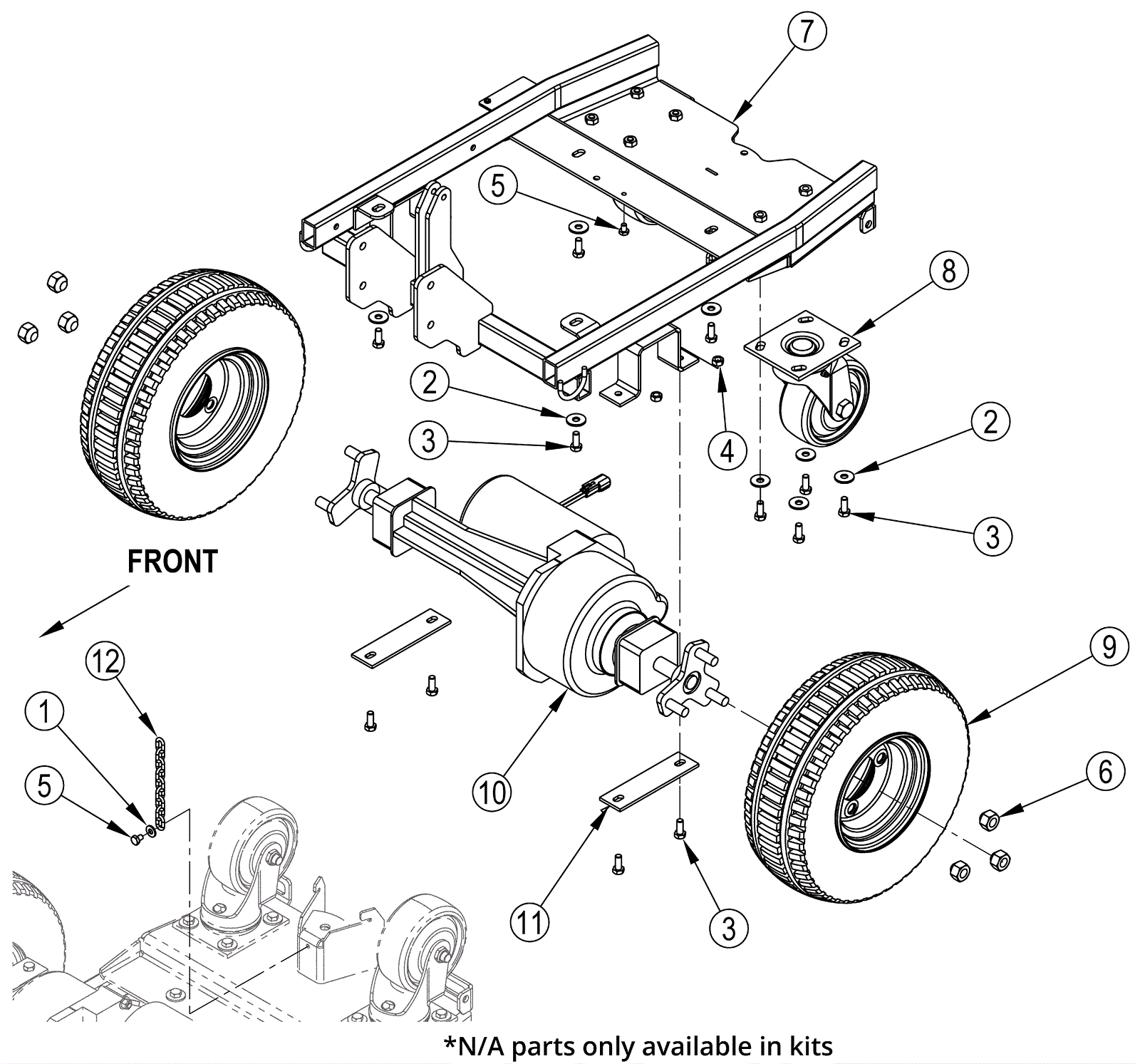

SC900 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-6684 Washer 1/4 flat stainless steel $0.99 1 (included in Kit 1 and Kit 4) ships same day
2 999-9097 Washer M8 flat stainless steel $0.99 12 (included in Kit 1 and Kit 2) ships same day
3 N/A Not available Call for price 16 (Screw) (included in Kit 1 and Kit 2) usually ships 3-26 days
4 999-1424 Nut M8-1.25 hex stainless steel $1.65 4 (included in Kit 1) ships same day
5 N/A Not available Call for price 2 (Screw) (included in Kit 1 and Kit 4) usually ships 3-26 days
6 N/A Not available Call for price 6 (Nut) (included in Kit 1 and Kit 3) usually ships 3-26 days
7 472-4842 CHASSIS WELDMENT $328.53 1 usually ships 16-41 days
8 N/A Not available Call for price 2 (Caster) (included in Kit 2) usually ships 3-26 days
9 N/A Not available Call for price 2 (Drive wheel) (included in Kit 3) usually ships 3-26 days
10a 472-4914 TRANSAXLE-36 VOLT $2,534.96 1 usually ships 16-41 days
10b 272-2271 Motor $1,565.99 1 usually ships 16-41 days
10c 170-3568 Carbon brush (pkg of 4) $30.87 4 ships same day
10d 272-2273 Neoprene mounting sleeve $25.36 2 usually ships 16-41 days
10e 272-7415 Coupling kit $41.84 1 usually ships 1-5 days
10f 272-7414 Transaxle service kit (OBSOLETE) $1,308.35 1 usually ships 1-5 days
11 272-2279 Transaxle mount plate $11.99 2 usually ships 1-5 days
12 572-3953 Grounding chain kit $21.00 1 (included in Kit 4) usually ships 16-41 days
KIT1 572-3952 Chassis hardware kit $25.36 1 (Includes 1-6) usually ships 16-41 days
KIT2 372-1276 Castor wheel kit $425.30 1 (includes 2, 3, 8) ships same day
KIT3 372-1281 Drive wheel kit $425.30 1 (includes 6 and 9) usually ships 16-41 days
KIT4 572-3953 Grounding chain kit $21.00 1 (includes 1, and 5) usually ships 16-41 days
