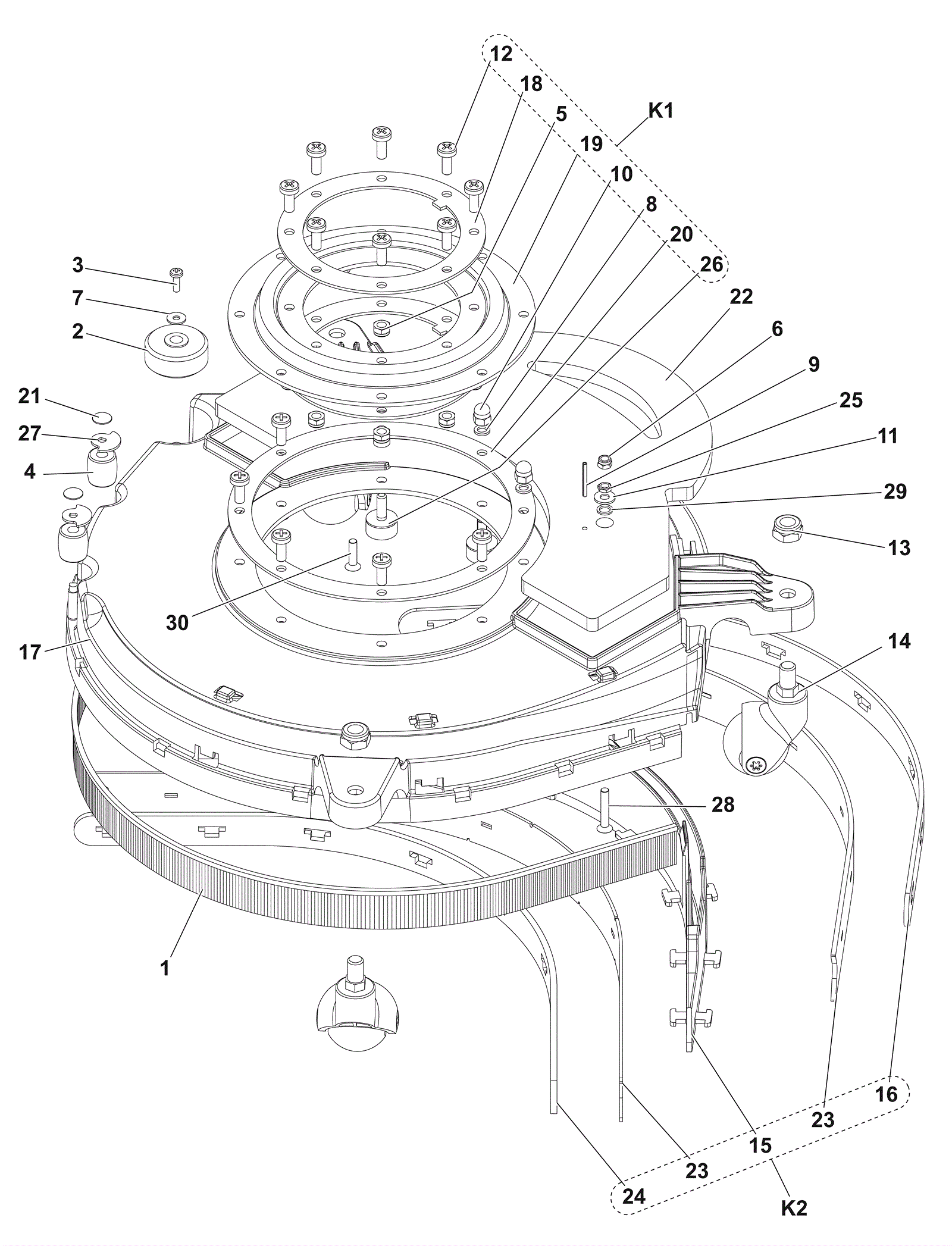

SC350 Brush Deck Skirt Assembly

#PartDescriptionPriceReqNotesAvailability
1 572-3248 BRUSH LINEAR $63.07 1 usually ships 17-28 days
2 172-0700 Bumper roller $12.31 1 usually ships 17-28 days
3 572-3288 HARDWARE COVER DECK KIT (OBSOLETE) $48.85 1 (screw) usually ships 17-28 days
4 572-3892 WHEEL $12.29 2 usually ships 17-28 days
5 572-3286 COUPLING DECK KIT $136.44 13 (nut) usually ships 17-28 days
6 572-3288 HARDWARE COVER DECK KIT (OBSOLETE) $48.85 1 (nut) usually ships 17-28 days
7 572-3288 HARDWARE COVER DECK KIT (OBSOLETE) $48.85 1 (washer) usually ships 17-28 days
8 572-3286 COUPLING DECK KIT $136.44 3 (washer) usually ships 17-28 days
9 572-3288 HARDWARE COVER DECK KIT (OBSOLETE) $48.85 1 (pin) usually ships 17-28 days
10 572-3286 COUPLING DECK KIT $136.44 3 (nut) usually ships 17-28 days
11 572-3288 HARDWARE COVER DECK KIT (OBSOLETE) $48.85 2 (washer) usually ships 17-28 days
12 999-1257 Screw M6-1 x 16mm pan head Phillips $1.47 13 ships same day
13 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 3 ships same day
14 272-7398 Caster wheel $13.17 3 ships same day
15 572-3287 SQUEEGEE KIT $169.11 1 (18 in (455 mm) squeegee weldment) ships same day
16 572-3287 SQUEEGEE KIT $169.11 1 ( 18 inch rear squeegee strap) ships same day
17 572-3230 COVER BRUSH DECK $88.55 1 usually ships 17-28 days
18 572-3286 COUPLING DECK KIT $136.44 2 (flange) usually ships 17-28 days
19 572-3231 COUPLING RUBBER DECK $6.82 1 usually ships 17-28 days
20 572-3286 COUPLING DECK KIT $136.44 1 (flange) usually ships 17-28 days
21 272-7525 Cover pin $10.85 2 usually ships 17-28 days
22 572-3249 COUNTERWEIGHT $221.54 1 usually ships 17-28 days
23 572-3287 SQUEEGEE KIT $169.11 1 ships same day
24 572-3287 SQUEEGEE KIT $169.11 1 (18 in (455 mm) rear squeegee strap) ships same day
25 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
26 572-3286 COUPLING DECK KIT $136.44 3 usually ships 17-28 days
27 572-3262 PLATE BUMPER FIX $8.25 2 usually ships 17-28 days
28 572-3288 HARDWARE COVER DECK KIT (OBSOLETE) $48.85 1 (screw) usually ships 17-28 days
29 572-3288 HARDWARE COVER DECK KIT (OBSOLETE) $48.85 2 (washer) usually ships 17-28 days
30 572-3288 HARDWARE COVER DECK KIT (OBSOLETE) $48.85 1 (screw) usually ships 17-28 days
KIT 1 572-3286 COUPLING DECK KIT $136.44 (includes 4, 8,10, 12, 18-20 and 26) usually ships 17-28 days
KIT 2 572-3287 SQUEEGEE KIT $169.11 (Includes 15,16, 23 and 24) ships same day
N/S 572-3288 HARDWARE COVER DECK KIT (OBSOLETE) $48.85 (includes 3,6,7,9,11,13,25 and 28-30) usually ships 17-28 days
