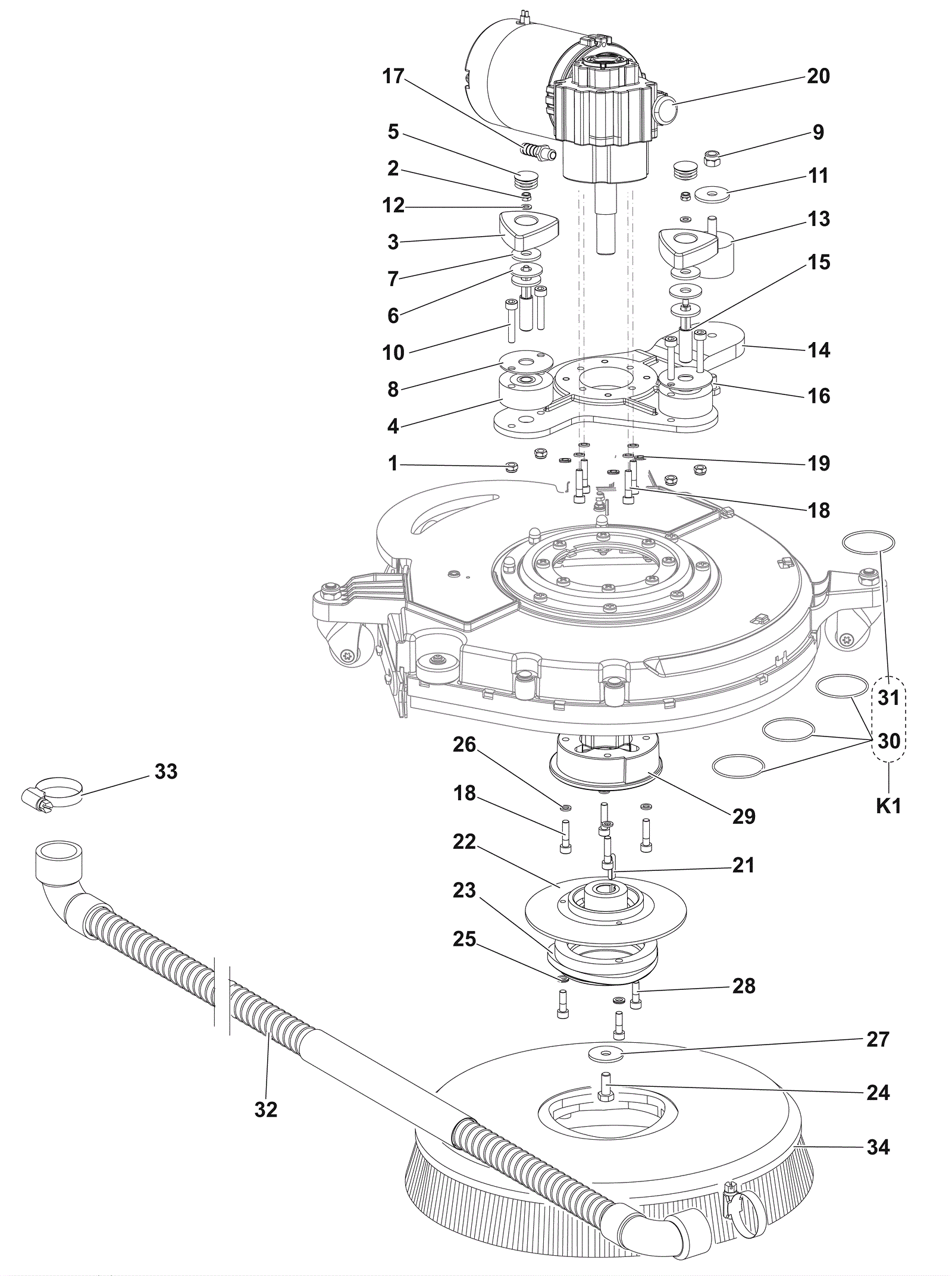

SC350 Brush Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 4 (nut) ships same day
2 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 2 ships same day
3 272-1931 Knob $12.31 2 ships same day
4 272-7135 Buffer $26.04 4 ships same day
5 272-8031 Plug $12.31 2 usually ships 17-28 days
6 572-3285 HARDWARE DECK KIT (OBSOLETE) $107.25 2 (washer) usually ships 17-28 days
7 572-3285 HARDWARE DECK KIT (OBSOLETE) $107.25 4 (washer) usually ships 17-28 days
8 272-1939 Vibration damping plate $13.76 2 usually ships 17-28 days
9 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
10 999-1409 Screw M8-1.25 x 12mm socket head stainless steel $1.57 4 usually ships 1-5 days
11 572-3285 HARDWARE DECK KIT (OBSOLETE) $107.25 1 (washer) usually ships 17-28 days
12 572-3285 HARDWARE DECK KIT (OBSOLETE) $107.25 2 (washer) usually ships 17-28 days
13 272-1919 Vibration damping M8 (set of 2) $49.63 1 ships same day
14 572-3209 SUPPORT BRUSH DECK (OBSOLETE) $45.65 1 usually ships 17-28 days
15 272-7574 Brush plate fixing pin $27.64 2 usually ships 17-28 days
16 999-1409 Screw M8-1.25 x 12mm socket head stainless steel $1.57 1 usually ships 1-5 days
17 272-1978 Rubber barb $11.57 1 usually ships 17-28 days
18 999-1300 Screw M6-1 x 25mm socket head stainless steel $1.10 8 usually ships 1-5 days
19 572-3285 HARDWARE DECK KIT (OBSOLETE) $107.25 4 (washer) usually ships 17-28 days
20 572-3204 REDUCTION GEARMOTOR KIT 12V (OBSOLETE) $1,297.48 1 usually ships 17-28 days
21 172-3730 Square keyway $49.63 1 usually ships 17-28 days
22 272-1924 Polygonal flange $78.58 1 usually ships 17-28 days
23 172-0469 Brush hub $38.62 1 ships same day
24 999-1648 Screw M8-1.25 x 20mm socket head stainless steel $2.07 1 usually ships 12-18 days
25 999-6678 Washer M6 nord lock $8.53 3 ships same day
26 572-3285 HARDWARE DECK KIT (OBSOLETE) $107.25 4 (washer) usually ships 17-28 days
27 572-3285 HARDWARE DECK KIT (OBSOLETE) $107.25 1 (screw) usually ships 17-28 days
28 999-1320 Screw M6-1 x 20mm socket head stainless steel $0.99 3 ships same day
29 572-3229 FLANGE (OBSOLETE) $11.75 1 usually ships 17-28 days
30 272-6783 Cable tie (black) (pkg of 10) $9.26 3 (spring) usually ships 17-28 days
31 272-6783 Cable tie (black) (pkg of 10) $9.26 1 (spring) usually ships 17-28 days
32 572-3258 SQUEEGEE HOSE $58.62 1 usually ships 17-28 days
33 572-3285 HARDWARE DECK KIT (OBSOLETE) $107.25 2 (clamp) usually ships 17-28 days
34 272-6790 14 inch pad driver $154.22 ships same day
35 272-6783 Cable tie (black) (pkg of 10) $9.26 (includes 30 and 31) usually ships 17-28 days
N/S 572-3285 HARDWARE DECK KIT (OBSOLETE) $107.25 (includes 1, 2, 6,7, 9-12, 16, 18, 19, 24-28 and 33) usually ships 17-28 days
