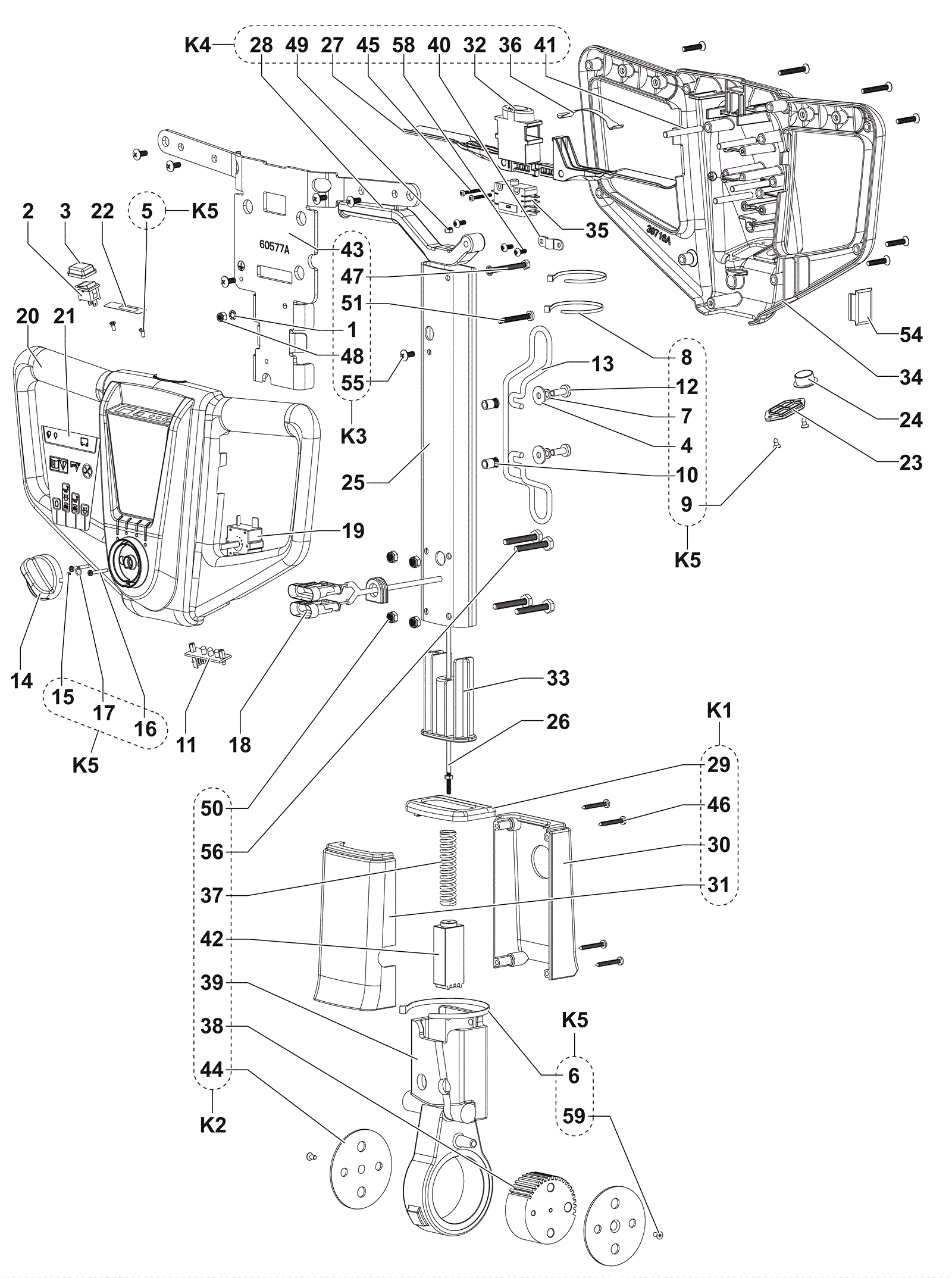

SC350 Handle Bar Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-8651 Handle support kit $98.68 3 (washer) usually ships 1-5 days
2 272-7561 Pump switch (OBSOLETE) $15.48 1 usually ships 17-28 days
3 272-8642 Protection cap $12.31 1 usually ships 1-5 days
4 272-7559 Handle bar harware assembly $60.06 2 (washer) usually ships 1-5 days
5 272-7559 Handle bar harware assembly $60.06 2 (screw) usually ships 1-5 days
6 272-7559 Handle bar harware assembly $60.06 1 (clamp) usually ships 1-5 days
7 272-7559 Handle bar harware assembly $60.06 2 (washer) usually ships 1-5 days
8 272-7559 Handle bar harware assembly $60.06 2 (clamp) usually ships 1-5 days
9 272-7559 Handle bar harware assembly $60.06 2 (screw) usually ships 1-5 days
10 272-7559 Handle bar harware assembly $60.06 2 (insert) usually ships 1-5 days
11 272-7562 LED Board $12.00 1 ships same day
12 272-7559 Handle bar harware assembly $60.06 2 (screw) usually ships 1-5 days
13 272-0659 On-board charger cord wrap $5.50 1 ships same day
14 272-8643 Knob control $9.26 1 usually ships 17-28 days
15 272-7559 Handle bar harware assembly $60.06 1 (screw) usually ships 1-5 days
16 272-7559 Handle bar harware assembly $60.06 2 (screw) usually ships 1-5 days
17 272-7559 Handle bar harware assembly $60.06 1 (seal) usually ships 1-5 days
18 572-3227 HARNESS HANDLE BAR $104.50 1 usually ships 17-28 days
19 572-3232 SWITCH ROTATIVE 4 POSITION SW1 (OBSOLETE) $10.56 1 usually ships 17-28 days
20 272-7564 Handle cover assembly $143.09 1 usually ships 1-5 days
21 572-3259 DECAL CONTROL PANEL $10.31 1 usually ships 17-28 days
22 272-8645 Battery decal $10.85 1 usually ships 1-5 days
23 272-8635 Cap $16.17 1 usually ships 1-5 days
24 272-8636 Cap (black) $10.85 1 usually ships 1-5 days
25 272-7566 Handle tube $22.23 1 ships same day
26 272-7567 Index rod $34.87 1 usually ships 1-5 days
27 272-8652 Handle switch lever kit $31.10 2 (lever switch) usually ships 17-28 days
28 272-8652 Handle switch lever kit $31.10 1 (lever) usually ships 17-28 days
29 272-8649 Lower cover kit $21.42 1 (cap) usually ships 1-5 days
30 272-8649 Lower cover kit $21.42 1 (rear cover) usually ships 1-5 days
31 272-8649 Lower cover kit $21.42 1 (front cover) usually ships 1-5 days
32 272-8652 Handle switch lever kit $31.10 1 (interlock button) usually ships 17-28 days
33 272-7568 Retainer $9.98 1 usually ships 1-5 days
34 272-7564 Handle cover assembly $143.09 1 usually ships 1-5 days
35 272-8640 Switch $27.92 1 ships same day
36 272-8652 Handle switch lever kit $31.10 1 (interlock spring) usually ships 17-28 days
37 272-7558 Lower housing assembly $133.53 1 (compression spring) usually ships 1-5 days
38 272-7558 Lower housing assembly $133.53 1 (gear) usually ships 1-5 days
39 272-7558 Lower housing assembly $133.53 1 (gear housing) usually ships 1-5 days
40 272-8652 Handle switch lever kit $31.10 1 (cord clamp) usually ships 17-28 days
41 272-8652 Handle switch lever kit $31.10 4 (pin) usually ships 17-28 days
42 272-7558 Lower housing assembly $133.53 1 (index gear) usually ships 1-5 days
43 272-8651 Handle support kit $98.68 1 (supprt handle) usually ships 1-5 days
44 272-7558 Lower housing assembly $133.53 2 (plate) usually ships 1-5 days
45 272-8652 Handle switch lever kit $31.10 2 (screw) usually ships 17-28 days
46 272-8649 Lower cover kit $21.42 4 (screw) usually ships 1-5 days
47 272-8651 Handle support kit $98.68 1 (screw) usually ships 1-5 days
48 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 1 ships same day
49 999-0955 Nut M4-.7 hex nylon lock $1.52 1 ships same day
50 999-1308 Nut M6-1 hex stainless steel $0.99 4 ships same day
51 272-8651 Handle support kit $98.68 1 (screw) usually ships 1-5 days
54 272-8641 Handle plug $14.91 1 usually ships 1-5 days
55 999-1517 Screw M5-.8 x 12mm truss head stainless steel $1.58 6 ships same day
56 272-7558 Lower housing assembly $133.53 4 (screw) usually ships 1-5 days
58 999-9101 Screw M4-.7 x 10mm pan head stainless steel $0.99 3 usually ships 12-18 days
59 272-7559 Handle bar harware assembly $60.06 2 (screw) usually ships 1-5 days
KIT 1 272-8649 Lower cover kit $21.42 (Includes 29-31 and 46) usually ships 1-5 days
KIT 2 272-7558 Lower housing assembly $133.53 (includes 37-39,42.44,50 and 56) usually ships 1-5 days
KIT 3 272-8651 Handle support kit $98.68 (includes 1,43,47,48,51 and 55) usually ships 1-5 days
KIT 4 272-8652 Handle switch lever kit $31.10 (includes 27,28,36,40,41,45 and 58) usually ships 17-28 days
KIT 5 272-7559 Handle bar harware assembly $60.06 (includes 4-10, 12,15-17 and 59) 7 and 59) usually ships 1-5 days
