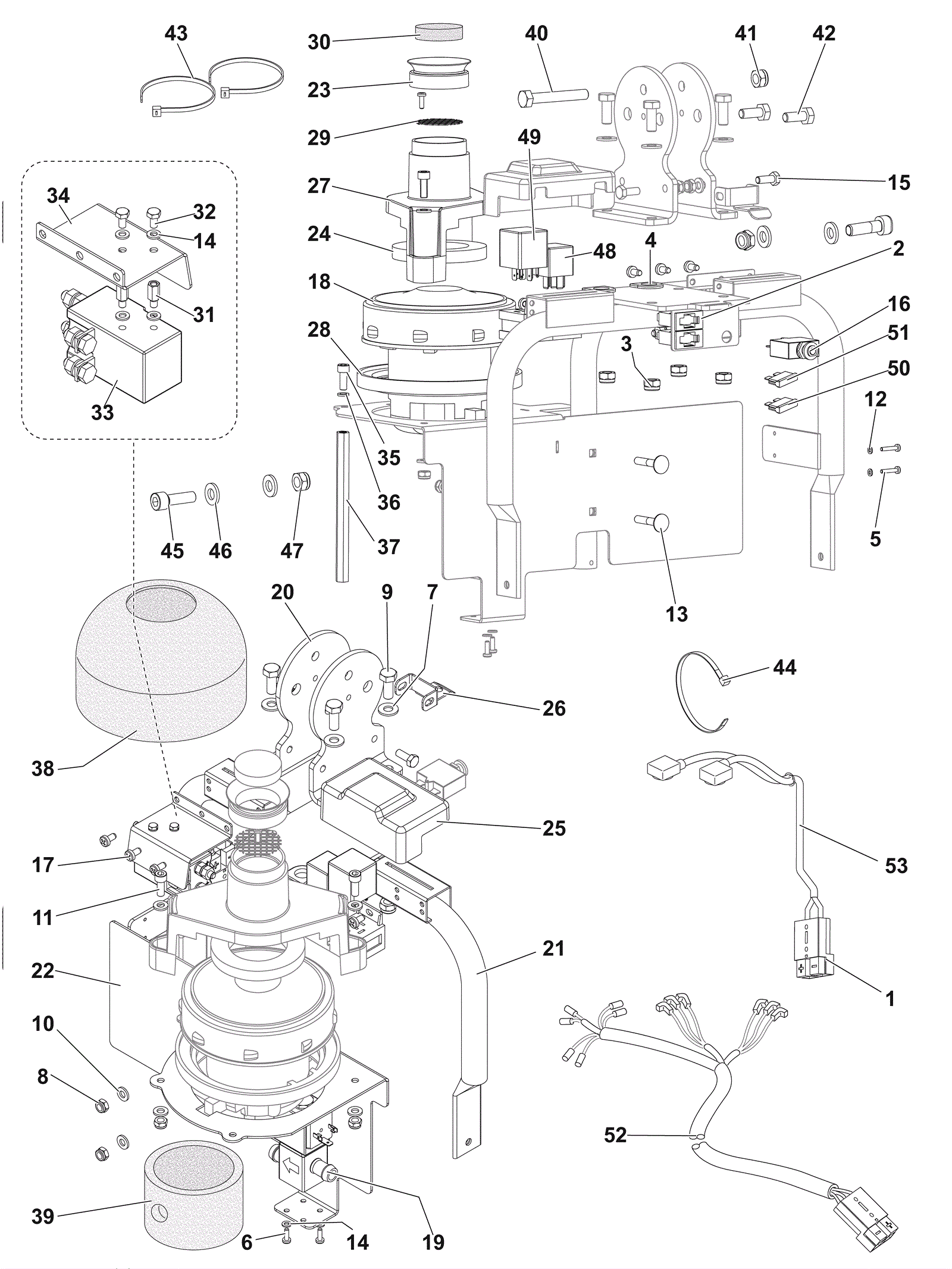

SC350 Handle Support Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-7537 50amp connector (grey) $26.04 1 usually ships 1-5 days
2 272-7538 Fuse holder $10.85 2 usually ships 17-28 days
3 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 ships same day
4 N/A Not available Call for price 2 usually ships 3-26 days
5 572-3284 HARDWARE HANDLE BAR SUPP. KIT $95.66 2 (screw) usually ships 17-28 days
6 572-3284 HARDWARE HANDLE BAR SUPP. KIT $95.66 3 (screw) usually ships 17-28 days
7 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
8 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 6 ships same day
9 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 4 ships same day
11 572-3284 HARDWARE HANDLE BAR SUPP. KIT $95.66 2 (screw) usually ships 17-28 days
12 572-3284 HARDWARE HANDLE BAR SUPP. KIT $95.66 2 (washer) usually ships 17-28 days
13 572-3284 HARDWARE HANDLE BAR SUPP. KIT $95.66 2 (screw) usually ships 17-28 days
14 572-3284 HARDWARE HANDLE BAR SUPP. KIT $95.66 6 (washer) usually ships 17-28 days
15 572-3284 HARDWARE HANDLE BAR SUPP. KIT $95.66 2 (screw) usually ships 17-28 days
16 272-2572 30amp circuit breaker $81.60 1 usually ships 17-28 days
17 999-0250 Bolt M5-.8 x 10mm hex head full thread $0.99 5 ships same day
18 272-7541 12V vacuum motor $284.00 1 usually ships 17-28 days
19a 272-7542 Solenoid valve $176.52 1 (before SN 3510145009117) ships same day
19b 572-3374 SOLENOID VALVE 12V EV $131.95 1 (after SN3510145009118) usually ships 17-28 days
20 272-7543 Handle bracket $10.85 2 usually ships 1-5 days
21 272-7544 Support handle $134.98 1 usually ships 1-5 days
22 272-7545 Vacuum motor support (OBSOLETE) $85.47 1 usually ships 1-5 days
23 272-7532 Gasket $15.48 1 ships same day
24 272-7546 Vacuum motor gasket $13.76 1 usually ships 17-28 days
25 272-7547 Relay cover $15.48 1 usually ships 1-5 days
26 272-7548 Plunger block bracket $84.49 1 usually ships 1-5 days
27 272-7549 Vacuum motor cover $12.31 1 usually ships 17-28 days
28 272-7550 Vacuum motor gasket $37.05 1 usually ships 1-5 days
30 372-1233 Vacuum motor filter $7.67 1 ships same day
31 572-3284 HARDWARE HANDLE BAR SUPP. KIT $95.66 2 (spacer) usually ships 17-28 days
32 999-1315 Screw M4-.7 x 8mm hex head stainless steel $0.99 2 usually ships 1-5 days
33 572-3243 BRUSH MOTOR CONTACTOR (OBSOLETE) $111.86 1 usually ships 17-28 days
34 572-3256 PLATE SUPPORT ELECTR.SWITCH $6.71 1 usually ships 17-28 days
35 572-3284 HARDWARE HANDLE BAR SUPP. KIT $95.66 2 (screw) usually ships 17-28 days
36 572-3284 HARDWARE HANDLE BAR SUPP. KIT $95.66 3 (washer) usually ships 17-28 days
37 572-3284 HARDWARE HANDLE BAR SUPP. KIT $95.66 1 usually ships 17-28 days
38 272-7554 Vacuum motor casing $44.58 1 usually ships 17-28 days
39 272-7555 Vacuum motor lower casing $32.69 1 usually ships 17-28 days
40 999-0788 Screw M8-1.25 x 55mm hex head stainless steel $1.54 1 ships same day
41 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
42 572-3284 HARDWARE HANDLE BAR SUPP. KIT $95.66 2 (screw) usually ships 17-28 days
43 572-3284 HARDWARE HANDLE BAR SUPP. KIT $95.66 2 (clamp) usually ships 17-28 days
44 572-3284 HARDWARE HANDLE BAR SUPP. KIT $95.66 4 (clamp) usually ships 17-28 days
45 999-1647 Screw M6-1 x 16mm socket head stainless steel $0.99 2 ships same day
46 572-3284 HARDWARE HANDLE BAR SUPP. KIT $95.66 4 (washer) usually ships 17-28 days
47 999-9131 Nut M6 x 1 nylon lock stainless steel $0.99 2 ships same day
48 272-7539 12V relay $32.69 1 usually ships 17-28 days
49 272-7551 Cyclical timer $69.01 1 usually ships 17-28 days
50 272-7144 30amp fuse $12.31 1 ships same day
51 181-0962 5 amp fuse $5.50 1 usually ships 17-28 days
52 572-3228 HARNESS MACHINE (OBSOLETE) $850.49 1 usually ships 17-28 days
53 272-7557 Battery harness $222.53 1 usually ships 17-28 days
KIT 1 572-3284 HARDWARE HANDLE BAR SUPP. KIT $95.66 (includes 3, 5-15,17,31,32,35,36 and 40-47) usually ships 17-28 days
