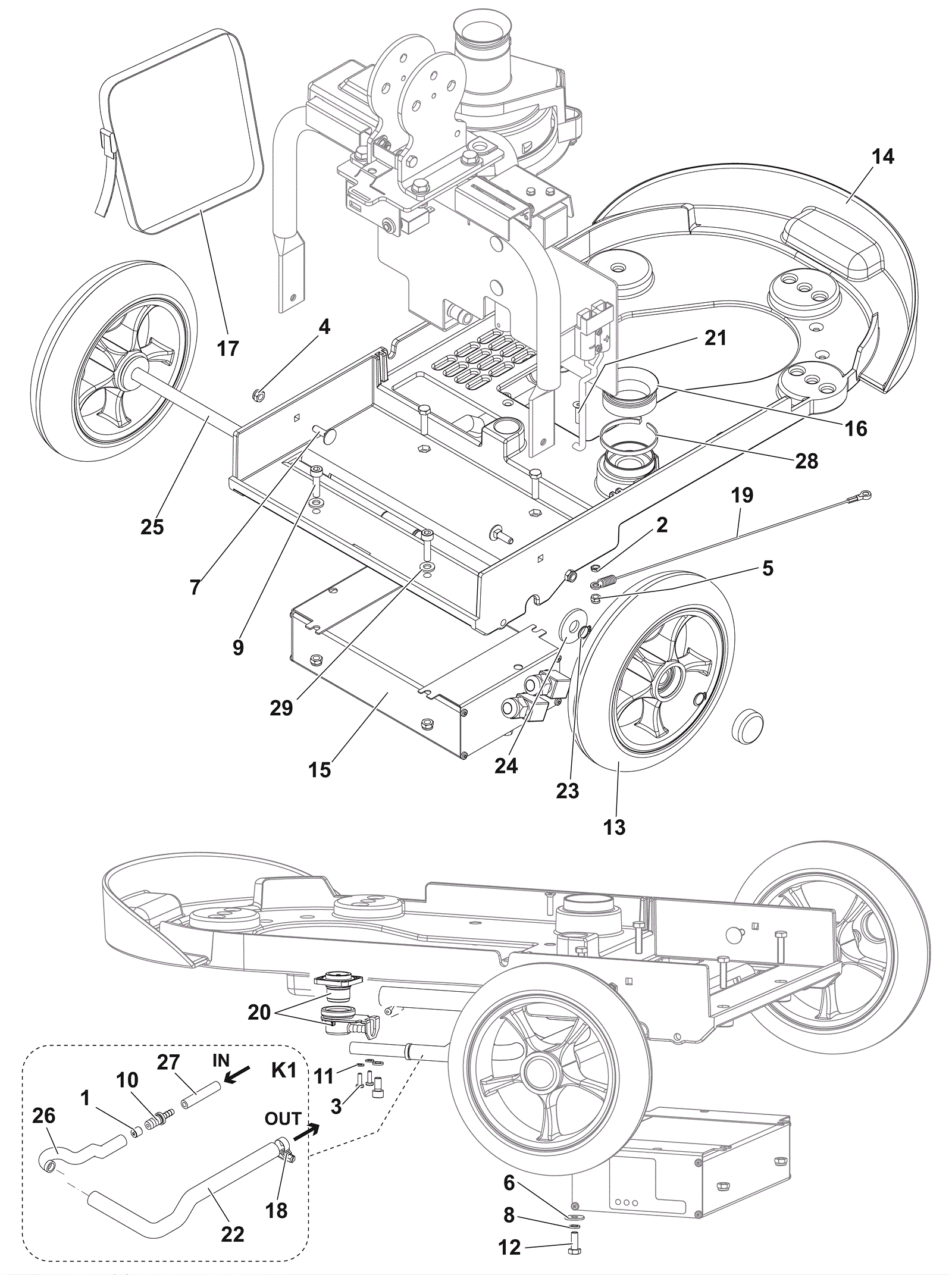

SC350 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-7529 Pipe kit $87.54 1 (reduction water) usually ships 17-28 days
2 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
3 572-3283 HARDWARE FRAME KIT (OBSOLETE) $64.23 2 (screw) usually ships 17-28 days
4 572-3283 HARDWARE FRAME KIT (OBSOLETE) $64.23 7 (nut) usually ships 17-28 days
5 572-3283 HARDWARE FRAME KIT (OBSOLETE) $64.23 2 (nut) usually ships 17-28 days
6 572-3283 HARDWARE FRAME KIT (OBSOLETE) $64.23 2 (washer) usually ships 17-28 days
7 572-3283 HARDWARE FRAME KIT (OBSOLETE) $64.23 2 (screw) usually ships 17-28 days
8 572-3283 HARDWARE FRAME KIT (OBSOLETE) $64.23 3 (washer) usually ships 17-28 days
9 572-3283 HARDWARE FRAME KIT (OBSOLETE) $64.23 4 (screw) usually ships 17-28 days
10 272-7529 Pipe kit $87.54 1 (fitting) usually ships 17-28 days
11 572-3283 HARDWARE FRAME KIT (OBSOLETE) $64.23 2 (washer) usually ships 17-28 days
12 572-3283 HARDWARE FRAME KIT (OBSOLETE) $64.23 2 (screw) usually ships 17-28 days
13 572-3217 WHEEL D.200MM (OBSOLETE) $74.65 2 usually ships 17-28 days
14 572-3354 CHASSIS KIT $261.02 1 usually ships 17-28 days
15a 572-3824 CHARGER BATT O/B 12V 12A 100-2 $1,148.62 1 usually ships 17-28 days
15b 272-9290 Onboard charger cord $26.04 1 ships same day
16 272-7532 Gasket $15.48 1 ships same day
17 272-8552 Battery strap $16.50 1 usually ships 1-5 days
18 572-3283 HARDWARE FRAME KIT (OBSOLETE) $64.23 1 (clamp) usually ships 17-28 days
19 572-3292 DECK CABLE $35.60 1 usually ships 17-28 days
20 272-7534 Water valve assembly $27.64 1 usually ships 17-28 days
21 572-3283 HARDWARE FRAME KIT (OBSOLETE) $64.23 1 (screw) usually ships 17-28 days
22 272-7529 Pipe kit $87.54 1 (hose) usually ships 17-28 days
23 572-3283 HARDWARE FRAME KIT (OBSOLETE) $64.23 4 (ring) usually ships 17-28 days
24 572-3283 HARDWARE FRAME KIT (OBSOLETE) $64.23 2 (washer) usually ships 17-28 days
25 572-3218 PIN WHEEL (OBSOLETE) $85.80 1 usually ships 17-28 days
26 572-3283 HARDWARE FRAME KIT (OBSOLETE) $64.23 1 (hose) usually ships 17-28 days
27 272-7529 Pipe kit $87.54 1 (pipe) usually ships 17-28 days
28 572-3283 HARDWARE FRAME KIT (OBSOLETE) $64.23 1 (clamp) usually ships 17-28 days
29 572-3283 HARDWARE FRAME KIT (OBSOLETE) $64.23 4 (washer) usually ships 17-28 days
KIT1 272-7529 Pipe kit $87.54 (includes 1,10,18,22,26 and 27) usually ships 17-28 days
