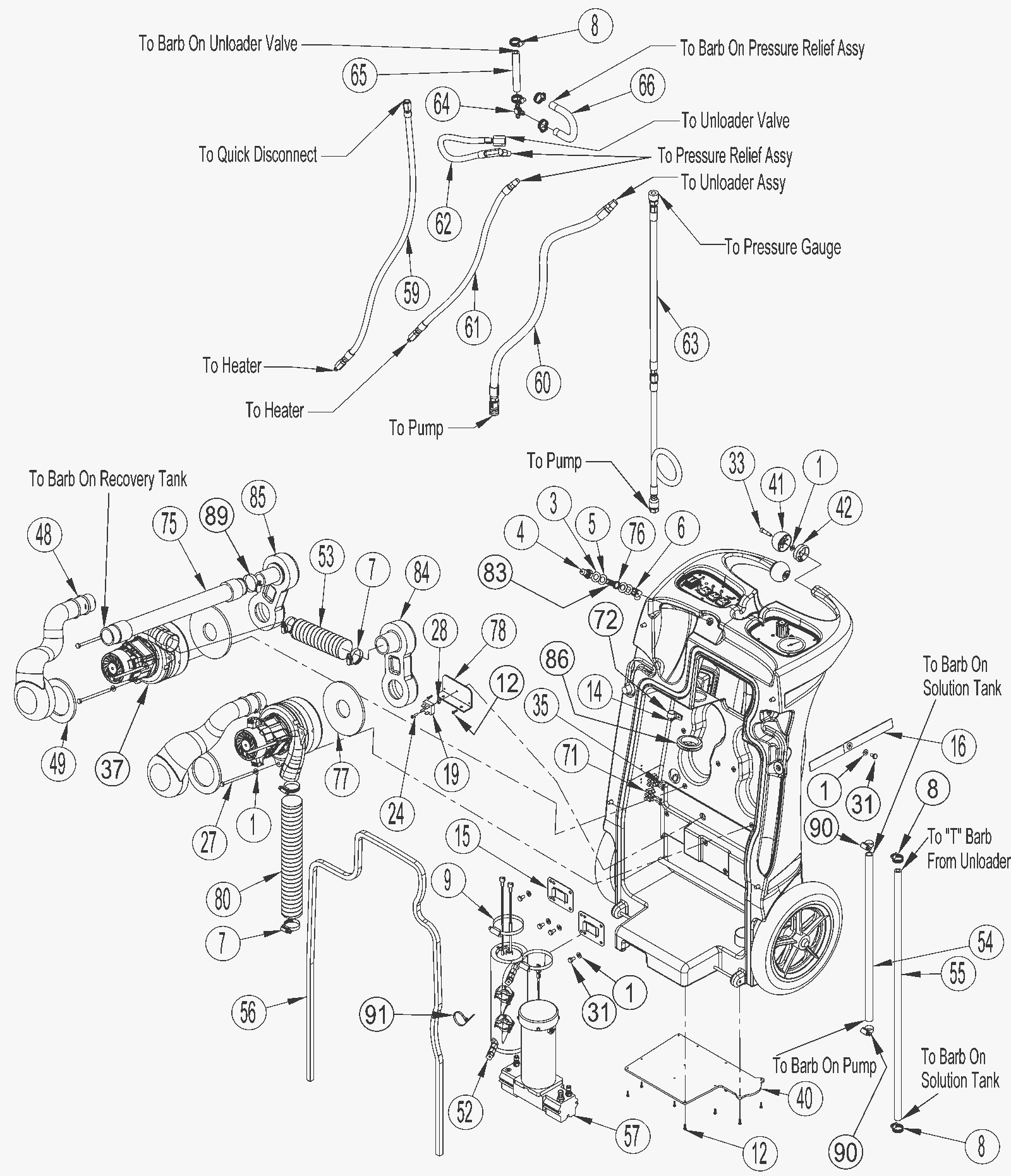

Pump and Vacuum Motor Assembly

#PartDescription ReqNotesAvailability
1 372-1305 Hardware kit 20 (washer)
3 209-6081 Washer 1
4 209-0336 Male quick disconnect 1
5 209-0628 Washer 3
6 209-2040 ELBOW 45DEG.ANGLE 1/4 MALE X 1 1
7 209-0657 Hose clamp 4
8 997-2001 Hose clamp 6
9 209-0405 Hose clamp 2
12 372-1305 Hardware kit 24 (screw)
14 372-1305 Hardware kit 4 (screw)
15 209-0621 Heat exchanger mount 2
16 209-0269 Cord strap (OBSOLETE) 2
19 209-0452 15amp bridge rectifier (OBSOLETE) 1
24 372-1305 Hardware kit 1 (screw)
27 372-1305 Hardware kit 6 (screw)
28 372-1305 Hardware kit 1 (nut)
31 372-1305 Hardware kit 9 (screw)
33 372-1305 Hardware kit 2 (screw)
35 372-1305 Hardware kit 2 (screw)
37a 472-4655 VAC MTR-6.5A-120V-3 STAGE-CSA 2
37b 209-0658 Carbon brush kit 1
40 472-4589 COVER-EXHAUST CHAMBER 1
41 472-4590 ROLLER BALL-PALLET 2
42 472-4591 ROLLER BALL BUSHING-PALLET (OBSOLETE) 2
48 272-5679 Vacuum motor intake tube 2
49 272-5678 Vacuum motor gasket 2
52a 572-3916 120V heat exchange assembly 1
52b 272-7417 PEX heater repair kit 1
53 472-4649 VAC HOSE RUBBER 7.75 X 2.0 ID 1
54 172-9036 Solution hose (OBSOLETE) 1
55 472-4612 HOSE 3/8 ID 1
56 472-4613 GASKET-PALLET 1
57a 372-1267 120V 500PSI pump 1
57b 372-1306 500PSI pump head kit 1
57c 472-4635 KIT-PUMP MOTOR 120V 1
59 472-4621 HOSE-1/4 ID 1/8MNPT 1/4FNPT 1
60 472-4622 HOSE-3/8 ID 1/4QD 3/8MNPT 1
61 472-4623 HOSE-1/4 ID 1/8MNPT 1/4FNPT 1
62 472-4624 HOSE-1/4ID 3/8FNPT 90-1/4MNPT 1
63 472-4640 HOSE-ASSY 1
64 472-4627 UNION TEE-BARB 3/8ID HOSE 1
65 472-4628 HOSE-3/8 ID 1
66 472-4629 HOSE-3/8 ID 1
71 172-4094 Terminal block 2
72 172-2071 P clamp 1
75 472-4647 VACUUM HOSE 1
76 209-0125 Fiber bushing 1
77 209-0632 Adhesive gasket 2
78 209-2089 HEAT SINK PLATE BRIDGE RECTIFI 1
79 170-5410 Axle cap (OBSOLETE) 2
80 209-0344 Vacuum hose 1
83 209-0665 Brass nipple 1
84 209-0132 Vacuum manifold 1
85 572-3917 Manifold (black) 1
86 172-3223 Grommet 1
89 270-8636 Hose clamp 3/4 x 1 3/4 SS 1
90 172-8494 #6 hose clamp SAE 2
91 272-6806 4 inch tie 1
N/S 472-4605 HARNESS-MAIN 1
