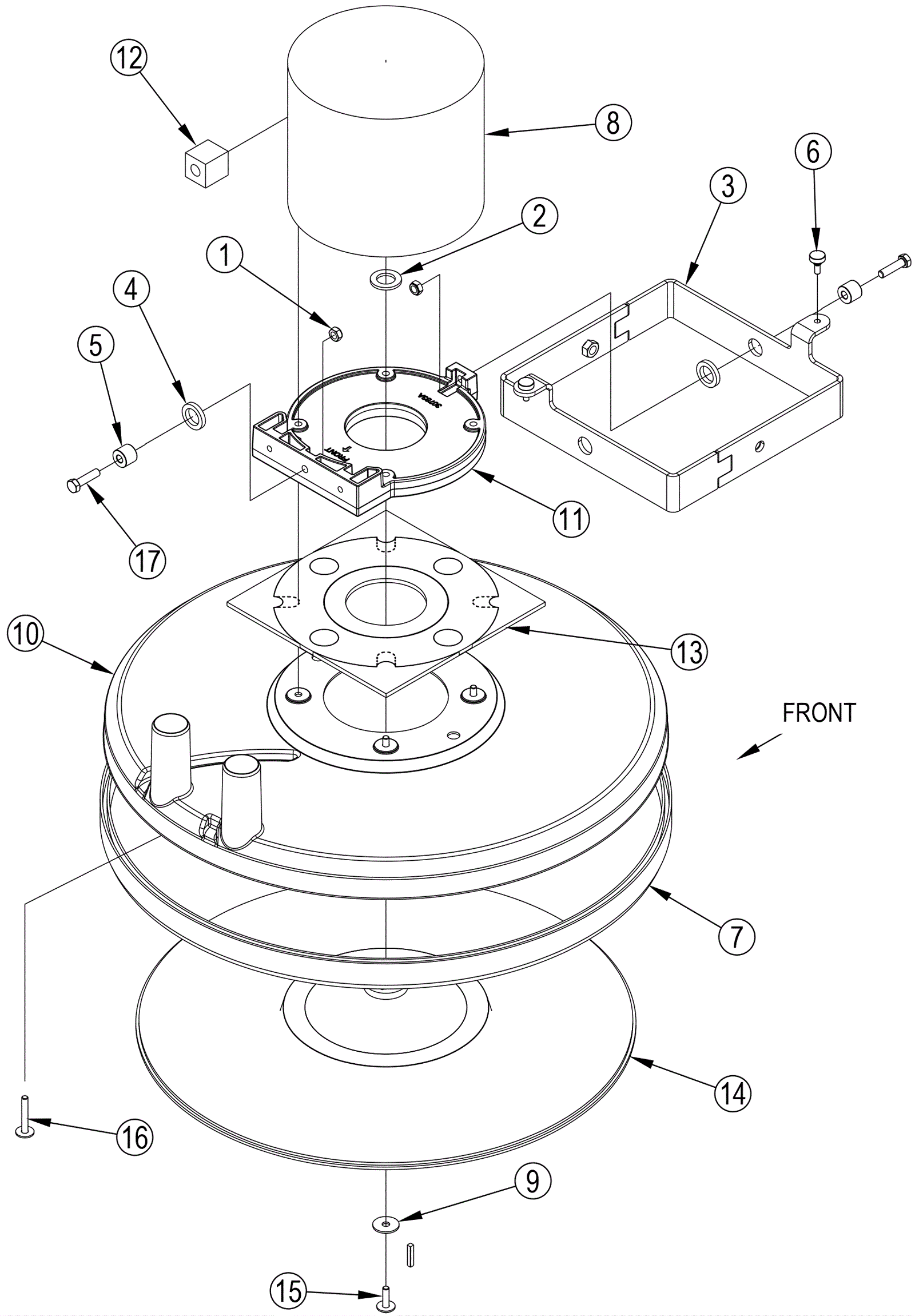

BU800 Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
2 272-7427 Washer 3/4 x 1 1/4 x 1/8 flat $10.56 1 usually ships 16-41 days
3 272-7338 Motor mount weldment $98.89 1 usually ships 16-41 days
4 272-7339 Rubber washer $9.02 2 usually ships 16-41 days
5 272-7340 Spacer $9.02 2 usually ships 16-41 days
6 272-7428 Bumper button $9.02 2 usually ships 1-5 days
7a 172-3072 20 inch skirt assembly $72.26 1 ships same day
7b 272-8566 24 inch skirt assembly $97.47 1 ships same day
8a 372-3747 Motor $761.45 1 (20B and 20BT) usually ships 16-41 days
8b 272-8938 Motor $2,485.42 1 (24B and 24BT) usually ships 1-5 days
9 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 1 ships same day
10a 272-8225 20 inch dust shroud $89.61 1 ships same day
10b 272-7207 24 inch dust shroud (OBSOLETE) $39.03 1 usually ships 16-41 days
11 272-8496 Motor mount $44.79 1 usually ships 16-41 days
12 272-3574 Suppressor split $30.28 1 usually ships 1-5 days
13 272-8224 Gasket $11.99 1 usually ships 16-41 days
14a 170-2201 Pad driver $276.53 1 usually ships 16-41 days
14b 272-5332 24 inch pad driver (OBSOLETE) $410.09 1 ships same day
15 272-8200 Button head screw $5.28 1 ships same day
16 999-1247 Screw 1/4-20 x 1 3/4 button head socket cap zinc plated $0.99 4 ships same day
17 170-3357 Screw 5/16-18x1 1/4 hex head $7.49 2 usually ships 4-15 days
N/S 172-2818 Carbon brush (pkg of 4) $261.33 1 usually ships 16-41 days
N/S 991-2203 Big mouth pad holder male thread portion $27.25 1 usually ships 8-23 days
