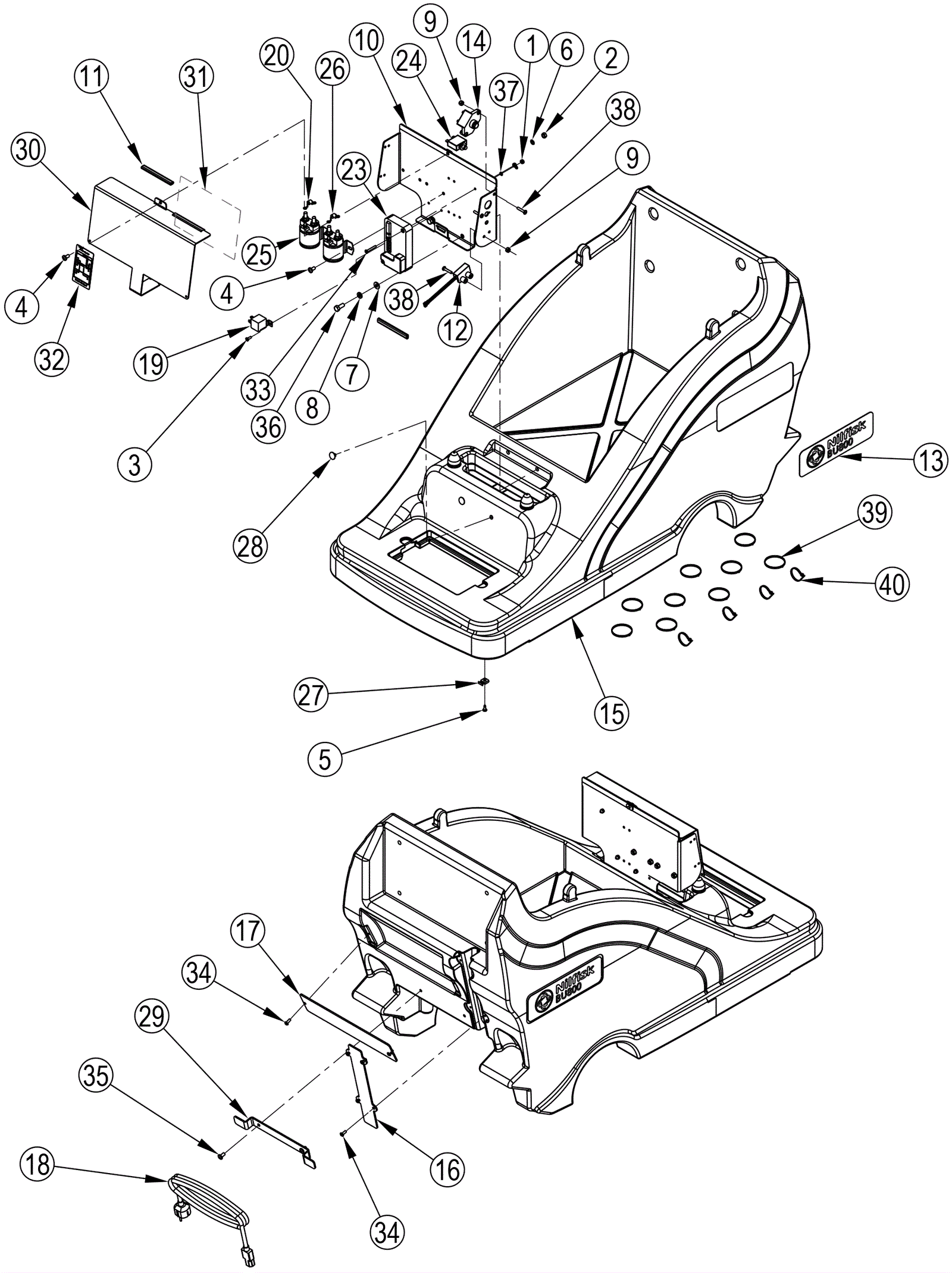

BU800 Body Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel $0.99 3 ships same day
2 999-0190 Nut 1/4-20 hex plain finish $0.99 4 ships same day
3 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated $0.99 1 (20BT and 24BT) ships same day
4 999-0323 Screw 1/4-20 x 1/2 pan head slotted zinc plated $0.99 5 ships same day
5 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling $0.99 3 ships same day
6 999-0017 Washer 1/4 external star lock $0.99 4 ships same day
7 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
8 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
9 999-0460 Nut 10-32 hex $0.99 3 (20B and 20BT) ships same day
10 272-7425 Electrical plate weldment $68.62 1 usually ships 16-41 days
11 272-7426 4 inch trim lock $9.02 3 usually ships 1-5 days
12 272-7443 Tilt switch $73.68 1 usually ships 16-41 days
13 472-7910 DECAL-BU800-NILFISK $16.50 2 usually ships 16-41 days
14a 181-1355 70amp circuit breaker $313.32 1 (20B and 20BT) usually ships 16-41 days
14b 272-8567 90amp circuit breaker $201.47 1 (24B and 24BT) usually ships 16-41 days
15a 272-8488 Lower cover $1,028.83 1 (20B and 20BT) usually ships 16-41 days
15b 272-8935 Advolution 24B body $638.00 1 (24B and 24BT) usually ships 1-5 days
16a 272-8491 Harness cover $36.07 1 (20B and 20BT) usually ships 16-41 days
16b 272-8934 Harness cover $41.67 1 (24B and 24BT) usually ships 1-5 days
17 272-8490 Retention strap (for dust bags) $21.00 1 usually ships 1-5 days
18a 370-1944 CORD CHARGER EURO WB FOCUS $55.65 1 usually ships 16-41 days
18b 170-7385 Onboard charger cord $28.74 1 (20B and 20BT) usually ships 16-41 days
19 270-0624 Traverse power relay $51.28 1 (20BT and 24BT) usually ships 1-5 days
20 270-0622 Avalanche diode assembly $86.65 1 (20BT and 24BT) usually ships 1-5 days
23 270-0623 36V traverse I-Drive controller $671.43 1 (20BT and 24BT) usually ships 16-41 days
24 991-1625 30amp circuit breaker $12.61 1 (20BT and 24BT) ships same day
25 172-2805 36V contactor $97.47 2 ships same day
26 170-0062 Diode $16.50 1 (20BT and 24BT) usually ships 16-41 days
27 170-7388 1/4 tab $11.99 3 usually ships 1-5 days
28 272-8489 Fastener ratchet $10.56 2 usually ships 1-5 days
29 170-7386 Cord wrapping bracket $12.83 1 usually ships 1-5 days
30 272-8482 Front electric plate cover $44.79 1 usually ships 16-41 days
31a 270-0621 Connection diagram decal $19.45 1 usually ships 1-5 days
31b 272-8483 Connection diagram decal $11.99 1 (20B) usually ships 1-5 days
32 272-8484 Battery connection decal $16.50 1 usually ships 1-5 days
33 272-8590 Screw 8-32 x 1 1/4 pan head $10.56 2 (20BT and 24BT) usually ships 1-5 days
34 999-0723 Screw 10-32 x 1/2 pan head slotted stainless steel $0.99 6 ships same day
35 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 2 ships same day
36 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 2 ships same day
37 999-0092 Washer #8 internal star lock zinc plated $0.99 3 ships same day
38 170-1463 Screw 10-32 x 1 $11.99 3 usually ships 1-5 days
39 170-0080 Wire tie $11.99 9 (20B and 20BT) usually ships 16-41 days
40 372-2096 Cable tie $11.99 4 (20B and 20BT) usually ships 16-41 days
N/S 272-7444 Decal $10.31 2 usually ships 1-5 days
N/S 272-8492 20 inch power harness $156.64 1 (20B) usually ships 1-5 days
N/S 999-0016 Washer 1/4 flat plain finish $0.99 4 (24BT) ships same day
N/S 999-0060 Washer 1/4 split lock plain finish $0.99 4 (24BT) ships same day
N/S 272-8937 Power harness $148.50 1 (24BT) usually ships 1-5 days
N/S 272-8931 Screw M6-1 x 10mm pan head $12.83 2 (24B and 24BT) usually ships 1-5 days
N/S 170-1544 Screw $1.39 6 (24BT) usually ships 4-15 days
