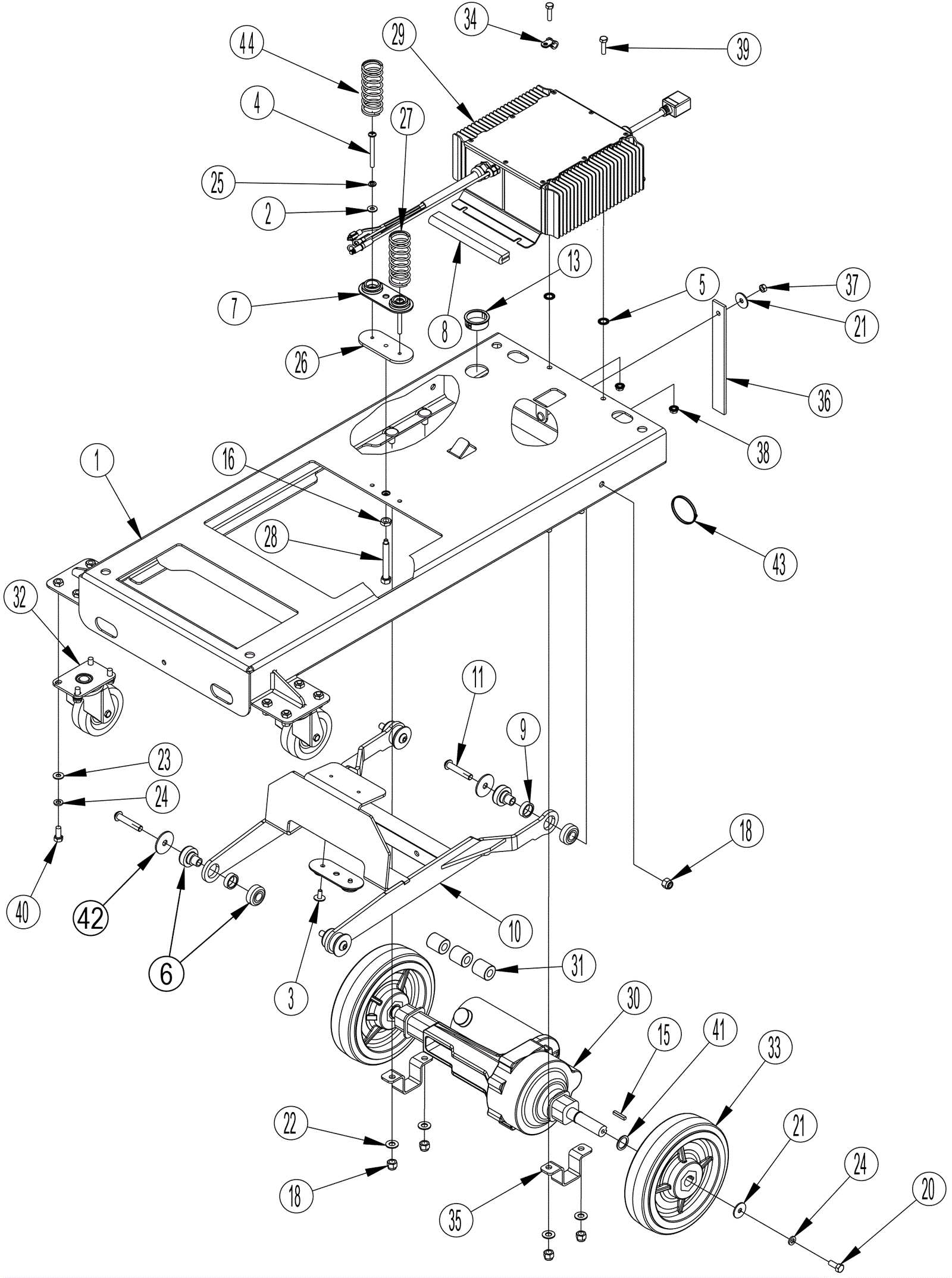

BU800 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (chassis weldment) usually ships 3-26 days
2 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
3 999-0395 Screw 1/4-20 x 5/8 button head socket plain finish $0.99 2 ships same day
4a 170-3815 Screw $13.40 2 (20B and 20BT) usually ships 1-5 days
4b 172-4344 Screw 1/4-20 x 2.50 pan phillips $11.69 2 (24B and 24BT) usually ships 1-5 days
5 172-0814 Washer 10M serrated external stainless steel $10.56 2 usually ships 1-5 days
6 272-7341 Vibration damping mount $23.95 4 usually ships 16-41 days
7 272-7421 Seat soft spring $9.02 2 usually ships 16-41 days
8 272-7422 Charger gasket $9.02 1 usually ships 1-5 days
9 272-7342 Steel spacer $9.02 4 usually ships 16-41 days
10 272-7418 Head lift weldment $201.47 1 ships same day
11 999-1462 Screw 3/8-16 x 2 button socket head stainless steel $5.50 4 ships same day
13 272-8466 Insulating bushing $9.59 1 ships same day
15 170-1679 Square keyway $3.01 2 (20B and 24B) usually ships 4-15 days
16 999-0247 Nut 3/8-16 hex jam plain finish $0.99 1 ships same day
18 999-0170 Nut 3/8-16 hex plain finish $0.99 6 ships same day
19 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 4 ships same day
20 999-1186 Screw 5/16-24 x 3/4 hex head $11.99 2 ships same day
21 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 2 ships same day
22 999-0032 Washer 3/8 USS flat plain finish $2.42 4 ships same day
23 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 8 ships same day
24 999-0028 Washer 5/16 split lock plain finish $0.99 10 ships same day
25 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
26 172-0816 Spring base plate $7.17 1 ships same day
27a 472-7584 SPRING COMPRESSION $41.84 2 (20B and 24B) usually ships 16-41 days
27b 272-9953 Compression spring $10.56 2 (20BT and 24BT) usually ships 16-41 days
28 172-0818 Pressure adjustment screw $7.05 1 usually ships 16-41 days
29 272-2224 36V onboard battery charger $1,149.42 1 ships same day
30 270-0631 36V transaxle $2,162.34 1 (20B and 24B) usually ships 1-5 days
31 170-1747 Suppressor $11.99 3 usually ships 1-5 days
32 272-8474 3 1/2 inch swivel caster $40.45 2 ships same day
33a 272-8472 8 inch wheel $85.24 2 (20B and 24B) ships same day
33b 270-0099 8 inch wheel $132.86 2 (20BT and 204BT) usually ships 16-41 days
34 272-8471 P clamp $11.99 1 usually ships 1-5 days
35 170-1323 Clamp $31.83 2 (20BT and 204BT) usually ships 1-5 days
36 170-7146 Static strap $13.40 1 usually ships 16-41 days
37 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
38 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 2 ships same day
39 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 2 ships same day
40 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 8 ships same day
41 170-1754 Washer M1 flat nylon $11.99 2 usually ships 16-41 days
42 272-7343 Snubbing washer $9.02 4 usually ships 1-5 days
43 170-0080 Wire tie $11.99 4 usually ships 16-41 days
44 172-0817 Compression spring (OBSOLETE) $12.54 2 (24B and 24BT) usually ships 16-41 days
N/S 170-1324 Snap ring $9.58 2 usually ships 4-15 days
N/S 272-8473 Non-traverse axle weldment $192.02 1 usually ships 1-5 days
