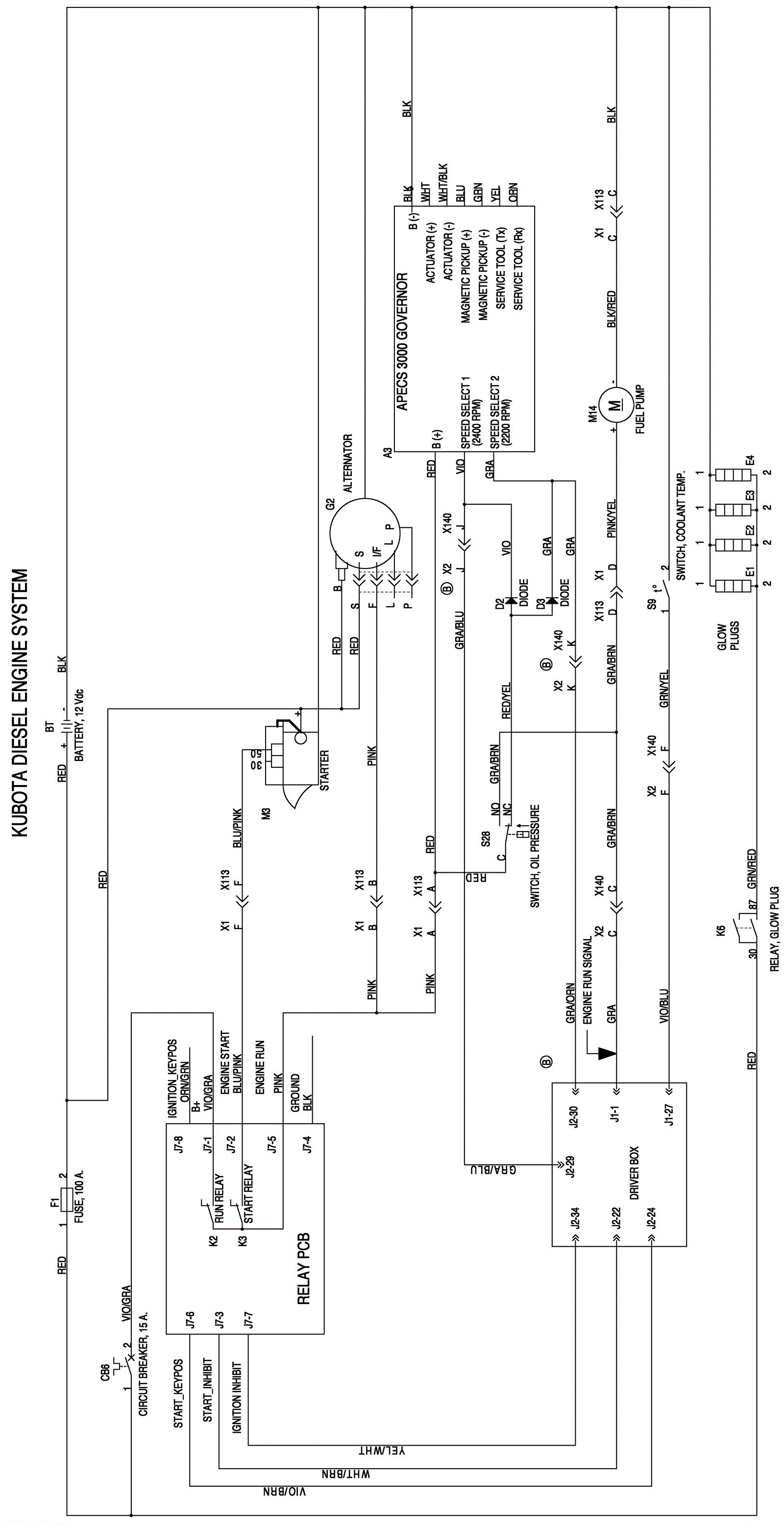

CONDOR XL Wiring Diagram - Diesel Engine Assembly

#PartDescriptionPriceReqNotesAvailability
0a 272-7816 Governor controller $2,373.51 1 usually ships 17-28 days
0b 172-0826 Relay assembly $199.52 1 usually ships 1-5 days
BT 272-7720 12 volt battery $482.66 1 usually ships 17-28 days
CB6 272-9755 15amp circuit breaker $15.48 1 usually ships 17-28 days
D2 N/A Not available Call for price 1 usually ships 3-26 days
D3 N/A Not available Call for price 1 usually ships 3-26 days
E1 N/A Not available Call for price 1 usually ships 3-26 days
E2 N/A Not available Call for price 1 usually ships 3-26 days
E3 N/A Not available Call for price 1 usually ships 3-26 days
E4 N/A Not available Call for price 1 usually ships 3-26 days
F1 272-7716 100amp fuse $72.63 1 usually ships 1-5 days
G2 272-7751 105amp alternator $498.29 1 usually ships 1-5 days
K6 272-7725 12V 75amp relay $86.09 1 usually ships 17-28 days
M3 272-7812 Starter motor $1,684.68 1 usually ships 1-5 days
M14 272-7818 Electronic fuel pump $321.78 1 usually ships 1-5 days
S9 272-7814 Temperature switch $169.11 1 usually ships 17-28 days
S28 272-4028 Oil pressure switch $92.09 1 usually ships 1-5 days
