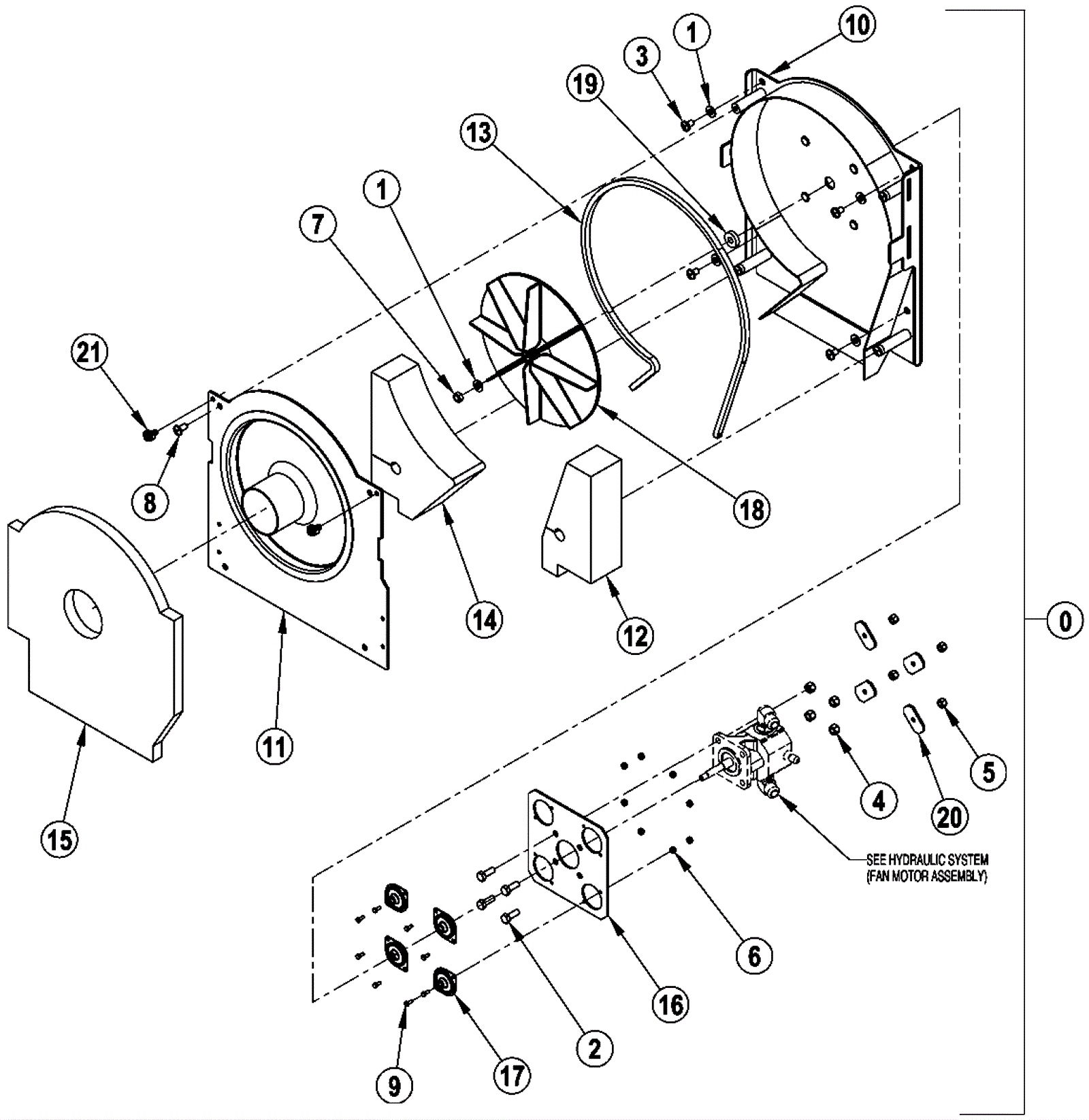

CONDOR XL Vacuum Fan Assembly

#PartDescriptionPriceReqNotesAvailability
0 272-3793 Vacuum fan assembly $1,423.63 1 (includes 1-21) usually ships 16-41 days
1 999-0024 Washer 5/16 flat stainless steel $1.34 5 ships same day
2 181-0983 Screw 5/16-18 x 7/8 hex head $10.90 4 usually ships 1-5 days
3 999-1891 Screw 5/16-18 x 1/2 pan head phillips stainless steel $0.99 4 usually ships 1-5 days
5 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
6 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 8 ships same day
7 999-0340 Nut 5/16-24 nylon insert lock zinc plated $0.99 1 ships same day
8 999-1454 Bolt 5/16-18 x 5/8 pan head stainless steel $2.00 4 usually ships 1-5 days
9 172-4377 Screw 6-32 x .38 hex head $10.90 8 usually ships 1-5 days
10 272-4012 Scroll weldment $488.33 1 usually ships 1-5 days
11 272-4013 Vacuum fan cover weldment $454.27 1 usually ships 1-5 days
12 272-4014 Sound reduction foam $10.90 1 usually ships 16-41 days
13 272-4015 Seal $36.77 1 usually ships 16-41 days
14 272-4016 Sound reduction foam $13.70 1 usually ships 16-41 days
15 272-4017 Sound foam $28.94 1 usually ships 16-41 days
16 272-4018 Motor mount plate $25.87 1 usually ships 1-5 days
17 272-4019 Vibration isolator $42.65 4 usually ships 1-5 days
18 272-4020 Impeller $73.82 1 usually ships 16-41 days
19 272-4021 Spacer $12.18 1 usually ships 1-5 days
20 272-4022 Snubbing washer $12.18 4 usually ships 1-5 days
21 272-2177 Conduit clip $10.90 2 usually ships 16-41 days
