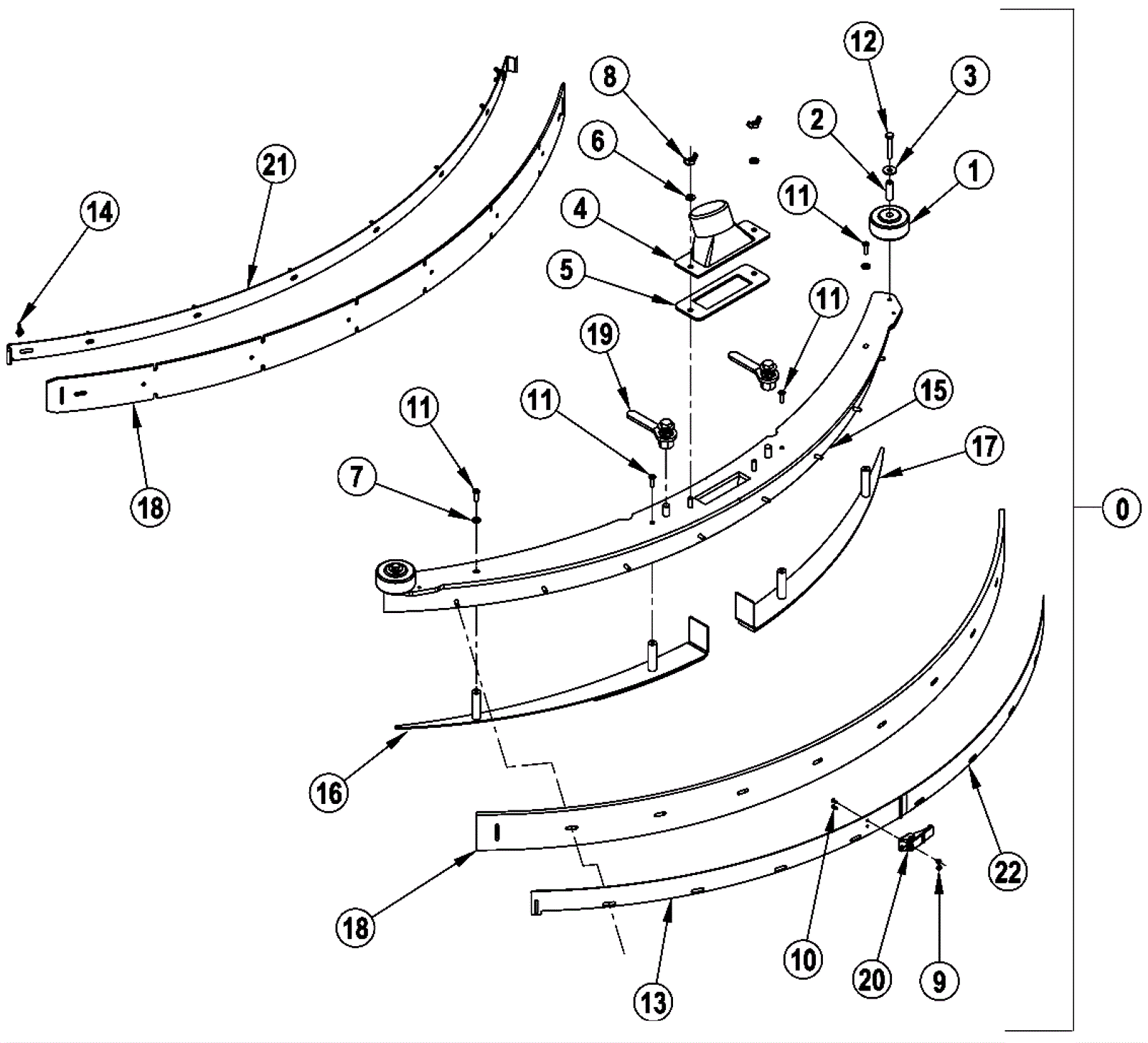

CONDOR XL Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
0 272-3987 Squeegee assembly $1,830.00 1 (includes 1-22) usually ships 16-41 days
1 272-7402 Wheel $38.04 2 usually ships 16-41 days
2 272-3997 Bushing $30.22 2 usually ships 1-5 days
3 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
4 272-6642 Adaptor $237.57 1 usually ships 16-41 days
5 272-6643 Inlet gasket $46.62 1 usually ships 16-41 days
6 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
7 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
8 999-0133 Nut 5/16-18 wing zinc plated $0.99 2 ships same day
9 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 2 ships same day
10 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 2 ships same day
11 172-3137 Screw 1/4-20 x 7/8 pan head phillips stainless steel $10.90 4 usually ships 1-5 days
12 999-1297 Screw M8 x 50mm hex head stainless steel $2.86 2 ships same day
13 272-3998 Rear H strap $30.22 1 ships same day
14 999-0603 Nut 1/4-20 wing stainless steel $7.33 8 ships same day
15 272-6480 Squeegee weldment $643.95 1 usually ships 1-5 days
16 272-3999 Left hand plate weldment $196.98 1 usually ships 1-5 days
17 272-4000 Right hand plate weldment $203.49 1 usually ships 1-5 days
18a 272-7216 Squeegee blade kit gum rubber (red) $190.31 1 (standard) usually ships 16-41 days
18b 272-7217 Squeegee blade kit gum rubber $112.96 1 usually ships 16-41 days
18c 272-7218 Squeegee blade kit polyurethane $494.86 1 usually ships 1-5 days
19 272-4004 Crank assembly $70.95 2 usually ships 1-5 days
20 172-0094 Latch $39.46 1 ships same day
21 272-4007 Strap kit $190.31 1 usually ships 1-5 days
22 272-4006 Rear H strap $69.56 1 ships same day
