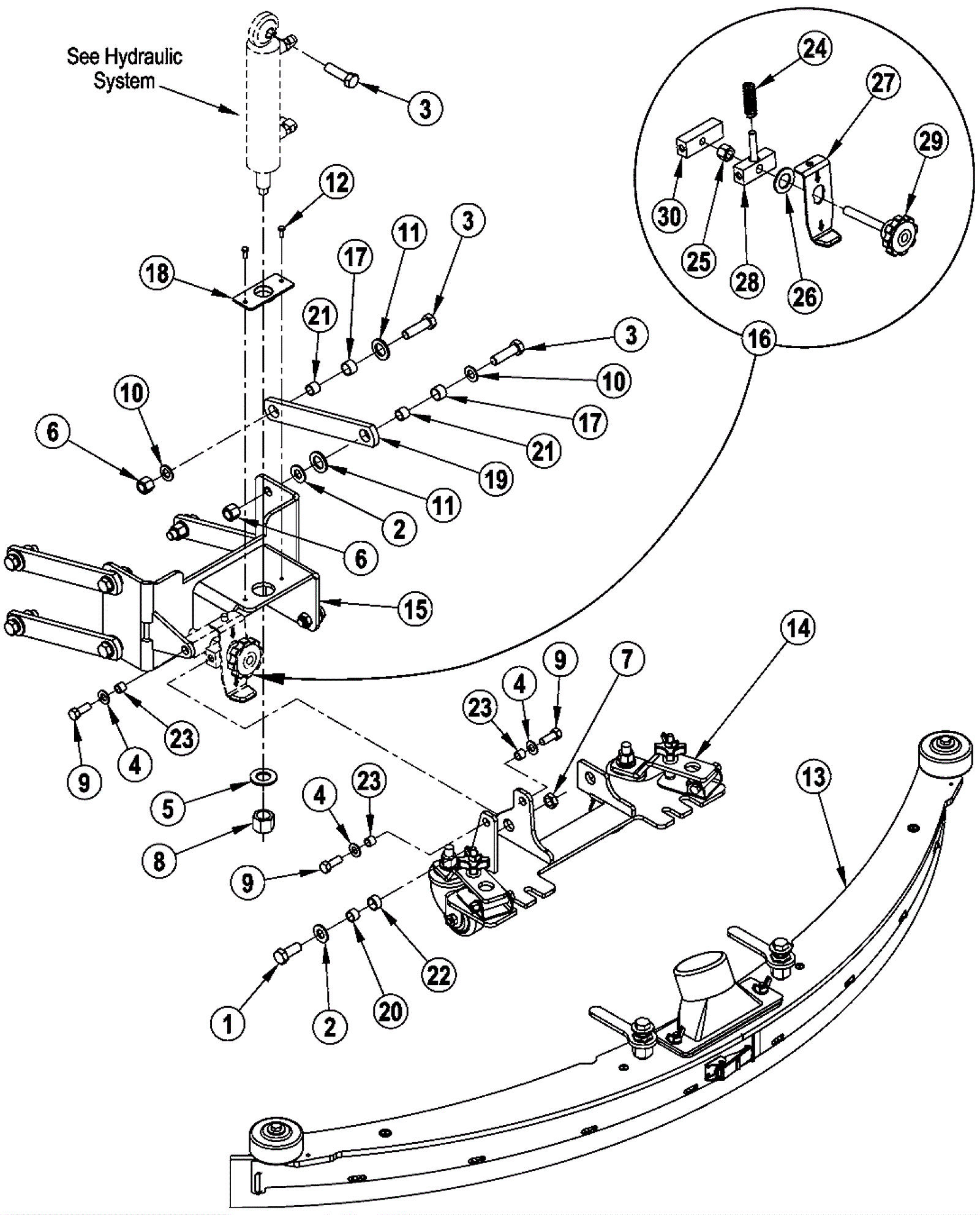

CONDOR XL Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0200 Bolt 1/2-13 x 1 1/4 hex head $2.68 26 ships same day
2 999-0114 Washer 1/2 SAE flat $0.99 9 ships same day
3 999-0372 Bolt 1/2-13 x 1 3/4 hex head $0.99 4 ships same day
4 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
5 999-0630 Washer 3/4 SAE flat $0.99 8 ships same day
6 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 2 ships same day
7 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 1 ships same day
8 172-4883 Nut 3/4-10 hex nylok $10.90 4 usually ships 1-5 days
9 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 8 ships same day
10 172-0550 Washer 33/64 x 3/4 flat $9.60 8 usually ships 16-41 days
11 272-7427 Washer 3/4 x 1 1/4 x 1/8 flat $9.60 2 usually ships 16-41 days
12 999-1369 Screw 10-24 x 1/2 hex head thread cutting stainless steel $0.99 1 ships same day
13 272-3987 Squeegee assembly $1,830.00 1 (see Squeegee Assembly -2) usually ships 16-41 days
14 272-3988 Squeegee mount assembly $867.69 1 (see Squeegee Mount Assembly) usually ships 16-41 days
15 272-3989 Squeegee lift weldment $183.15 1 usually ships 16-41 days
16 272-3990 Adjuster assembly $210.68 1 (includes 24-30) usually ships 16-41 days
17 272-8609 Bearing $12.18 8 usually ships 1-5 days
18 272-3991 Guide plate $15.00 1 usually ships 16-41 days
19 272-8607 Parallel arm $72.23 4 usually ships 1-5 days
20 172-0072 Bushing $39.46 2 usually ships 16-41 days
21 172-0024 Bushing $12.18 8 usually ships 16-41 days
22 272-5599 Sleeve bearing $12.18 2 usually ships 16-41 days
23 172-3101 Bushing $31.51 4 usually ships 1-5 days
24 172-0377 Spring $12.46 1 usually ships 1-5 days
25 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 1 ships same day
26 272-3992 Washer 7/8 x 1 1/2 x 7/64 flat stainless steel $10.90 1 usually ships 1-5 days
27 272-3993 Adjuster lock $43.93 1 usually ships 1-5 days
28 272-3994 Pivot weldment $77.49 1 usually ships 1-5 days
29 272-3995 Knob assembly $55.83 1 usually ships 16-41 days
30 272-3996 Squeegee adjuster bar $36.77 1 usually ships 1-5 days
