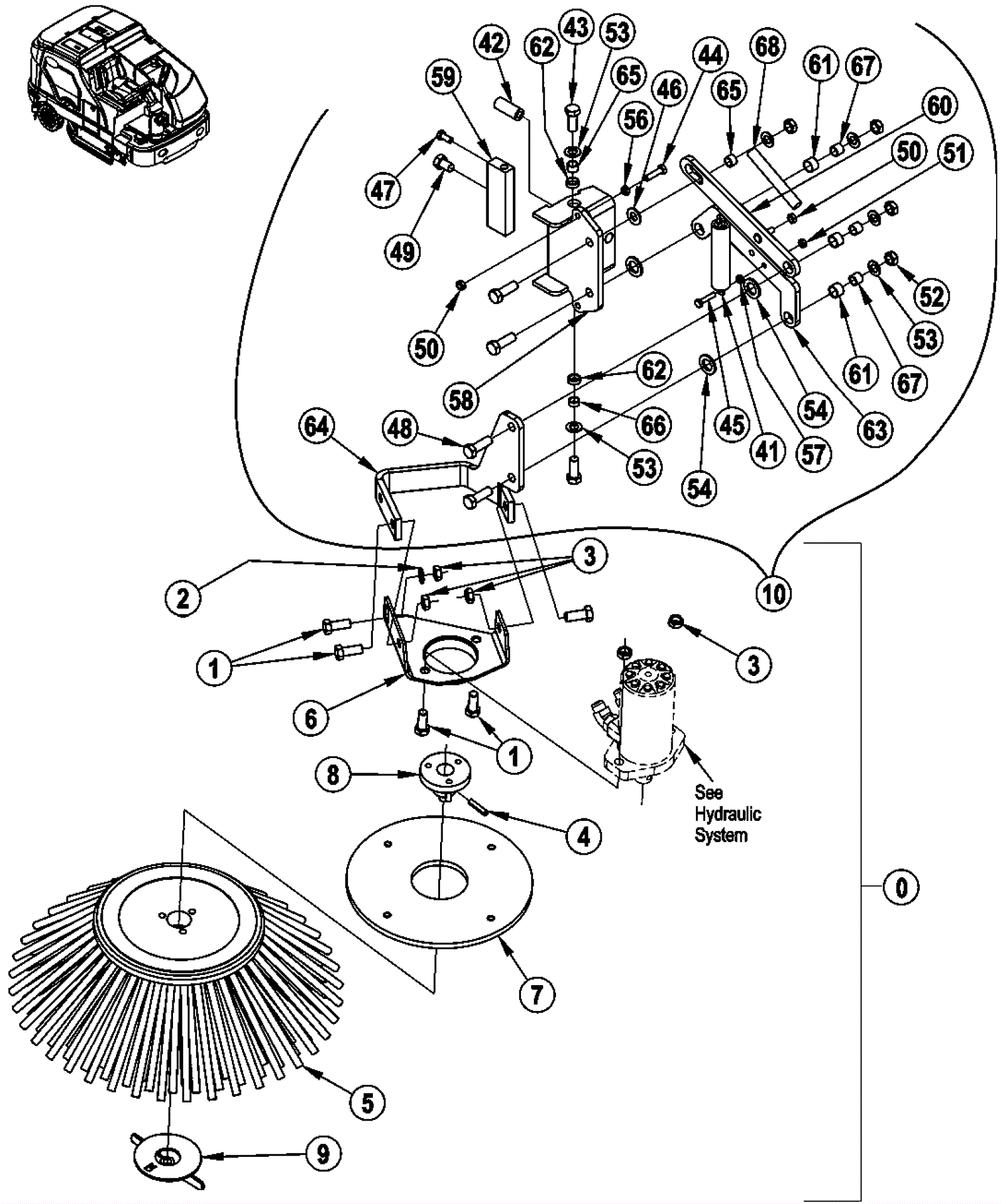

CONDOR XL Side Broom Sub Assembly - Right

#PartDescriptionPriceReqNotesAvailability
0 272-3938 Right hand side broom assembly $1,830.00 1 (includes 1-10) usually ships 1-5 days
1 999-0200 Bolt 1/2-13 x 1 1/4 hex head $2.68 5 ships same day
2 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
3 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 5 ships same day
4 172-4440 Spring pin $10.90 1 usually ships 1-5 days
5 272-7262 Poly side broom $83.16 1 ships same day
6 272-3955 Motor bracket weldment $96.44 1 usually ships 1-5 days
7 272-6478 Side broom guard $57.12 1 usually ships 1-5 days
8 272-3018 Side broom hub assembly $231.05 1 usually ships 1-5 days
9 272-3956 Right hand thumb nut $116.80 1 usually ships 1-5 days
10 272-3957 Right hand arm assembly $1,111.91 1 (includes 41-68) usually ships 1-5 days
41 172-9385 Chain assembly $43.93 1 usually ships 1-5 days
42 272-3027 Spring $66.98 1 usually ships 1-5 days
43 999-0200 Bolt 1/2-13 x 1 1/4 hex head $2.68 2 ships same day
44 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
45 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
46 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
47 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 1 ships same day
48 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel $1.67 4 ships same day
49 999-0815 Screw 1/2-13 x 3/4 hex hot dipped galvanized $0.99 1 usually ships 1-5 days
50 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
51 999-0190 Nut 1/4-20 hex plain finish $0.99 1 ships same day
52 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 4 ships same day
53 172-0550 Washer 33/64 x 3/4 flat $9.60 6 usually ships 16-41 days
54 272-7427 Washer 3/4 x 1 1/4 x 1/8 flat $9.60 3 usually ships 16-41 days
56 999-0430 Nut 5/16-18 hex jam plain finish $0.99 1 ships same day
57 999-0971 Nut 1/4-20 jam stainless steel $0.99 1 ships same day
58 272-3950 Hinge weldment $156.25 1 usually ships 1-5 days
59 272-3951 Pivot block $87.35 1 usually ships 1-5 days
60 272-3952 Upper side broom arm $85.94 1 usually ships 1-5 days
61 272-8609 Bearing $12.18 3 usually ships 1-5 days
62 272-3828 Sleeve bearing $13.70 2 usually ships 1-5 days
63 272-3954 Lower side broom arm $82.73 1 usually ships 1-5 days
64 272-3958 Side broom bracket $118.20 1 usually ships 1-5 days
65 172-0072 Bushing $39.46 2 usually ships 16-41 days
66 172-0139 Bushing $12.18 1 usually ships 1-5 days
67 172-0024 Bushing $12.18 3 usually ships 16-41 days
68 172-2341 Extension spring $12.18 1 usually ships 16-41 days
