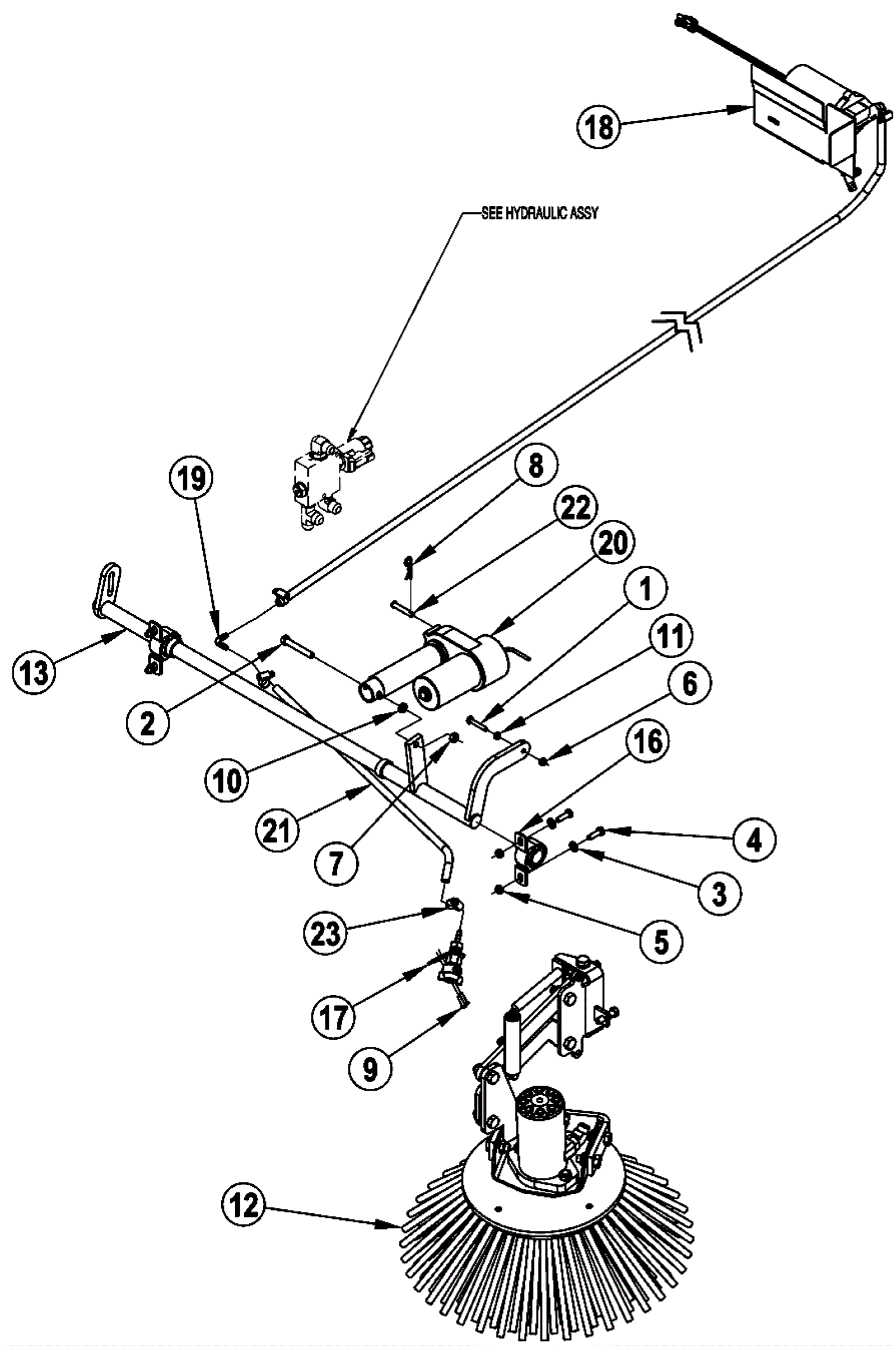

CONDOR XL Side Broom Assembly - Left

#PartDescriptionPriceReqNotesAvailability
1 999-1260 Screw 1/4-20 x 1 1/2 hex cap stainless steel $0.99 1 ships same day
2 999-0390 Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated $1.19 1 ships same day
3 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
4 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 4 ships same day
5 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
6 999-0190 Nut 1/4-20 hex plain finish $0.99 1 ships same day
7 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 1 ships same day
8 272-9987 Cotter pin $8.30 1 usually ships 1-5 days
9 999-0898 Screw 10-16 x 3/4 pan head phillips stainless steel type B $0.99 2 ships same day
10 999-0247 Nut 3/8-16 hex jam plain finish $0.99 1 ships same day
11 999-0971 Nut 1/4-20 jam stainless steel $0.99 1 ships same day
12 272-3935 Left hand side broom assembly $1,897.50 1 (see Side Broom Assembly - Left) usually ships 1-5 days
13 272-3936 Side broom lift weldment $244.24 1 usually ships 1-5 days
16 272-3939 Pillow block bearing $96.44 2 usually ships 1-5 days
17 272-3940 Nozzle assembly $237.57 1 (see Side Broom Sub Assembly - Pump) usually ships 1-5 days
18 N/A Not available Call for price 1 (Pump Assembly)(see Side Broom Sub Assembly - Pump) usually ships 3-26 days
19 272-6476 90 degree barbed elbow $10.90 1 usually ships 1-5 days
20 272-3941 Actuator motor $596.69 1 usually ships 1-5 days
21 272-9367 Hose 1/4 x 25 inches $10.90 1 usually ships 16-41 days
22 172-6089 Clevis pin $46.62 1 usually ships 1-5 days
23 997-2001 Hose clamp $2.42 2 ships same day
N/S 272-3814 Side scrub harness $156.25 1 usually ships 1-5 days
