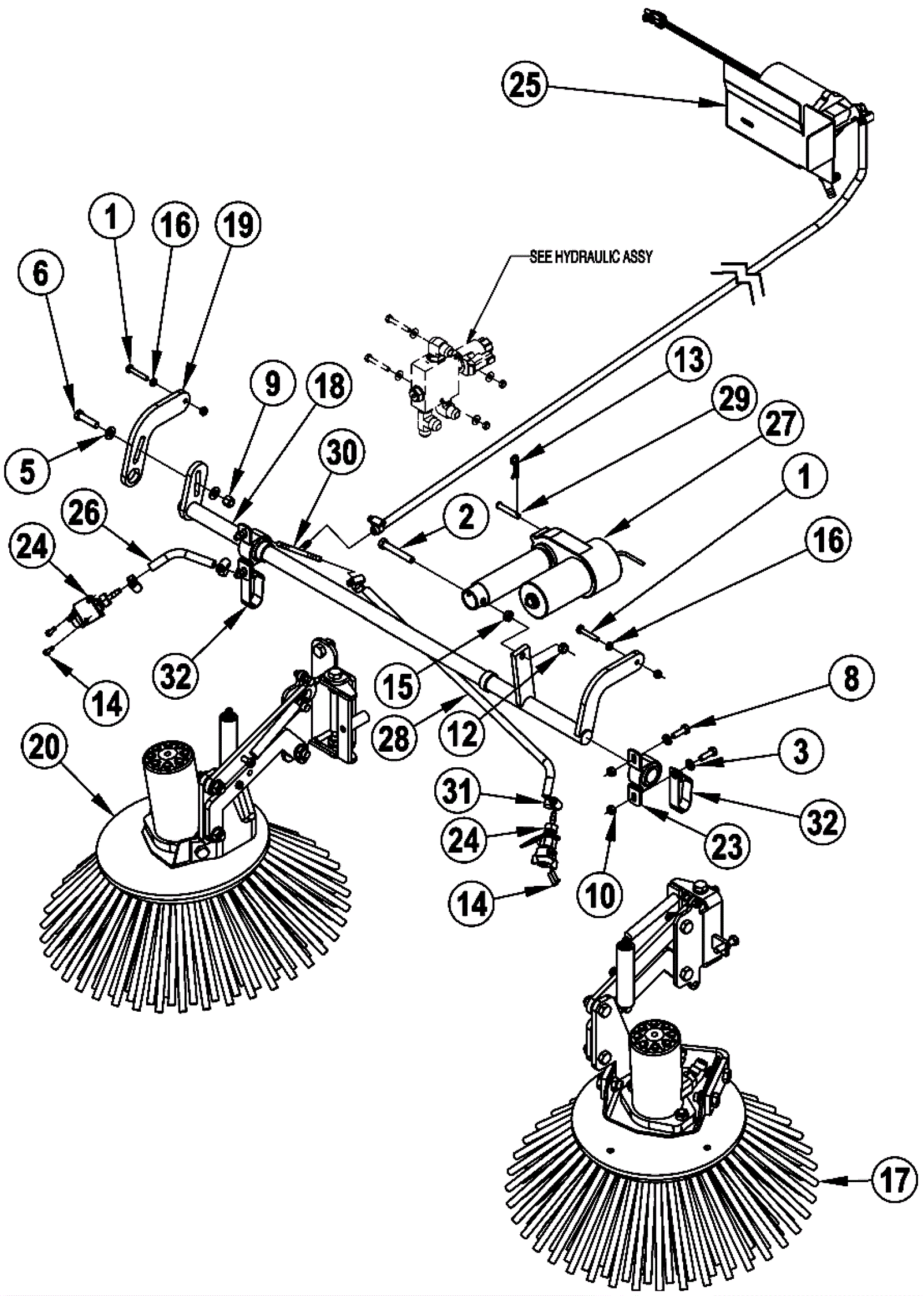

# | Part | Description | Price | Req | Notes | Availability |
1 |
999-1260
|
Screw 1/4-20 x 1 1/2 hex cap stainless steel |
$0.99
|
2 |
|
ships same day |
2 |
999-0390
|
Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated |
$1.19
|
1 |
|
ships same day |
3 |
999-0024
|
Washer 5/16 flat stainless steel |
$1.34
|
4 |
|
ships same day |
5 |
999-0120
|
Washer 3/8 SAE flat |
$0.99
|
2 |
|
ships same day |
6 |
999-0649
|
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
$7.56
|
1 |
|
ships same day |
8 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
$0.99
|
4 |
|
ships same day |
9 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
$0.99
|
1 |
|
ships same day |
10 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
$0.99
|
4 |
|
ships same day |
12 |
999-0324
|
Nut 3/8-16 nylon insert lock jam zinc plated |
$0.99
|
1 |
|
ships same day |
13 |
272-9987
|
Cotter pin |
$8.30
|
1 |
|
usually ships 1-5 days |
14 |
999-0898
|
Screw 10-16 x 3/4 pan head phillips stainless steel type B |
$0.99
|
4 |
|
ships same day |
15 |
999-0247
|
Nut 3/8-16 hex jam plain finish |
$0.99
|
1 |
|
ships same day |
16 |
999-0971
|
Nut 1/4-20 jam stainless steel |
$0.99
|
2 |
|
ships same day |
17 |
272-3935
|
Left hand side broom assembly |
$1,897.50
|
1 |
(see Side Broom Assembly -Left) |
usually ships 1-5 days |
18 |
272-3936
|
Side broom lift weldment |
$244.24
|
1 |
|
usually ships 1-5 days |
19 |
272-3937
|
Lever |
$32.79
|
1 |
|
usually ships 1-5 days |
20 |
272-3938
|
Right hand side broom assembly |
$1,830.00
|
1 |
(see Side Broom Assembly -Right) |
usually ships 1-5 days |
23 |
272-3939
|
Pillow block bearing |
$96.44
|
2 |
|
usually ships 1-5 days |
24 |
272-3940
|
Nozzle assembly |
$237.57
|
2 |
(see Side Broom Sub Assembly - Pump) |
usually ships 1-5 days |
25 |
N/A
|
Not available |
Call for price
|
1 |
(Pump Assembly)(see Side Broom Sub Assembly - Pump) |
usually ships 3-26 days |
26 |
172-1335
|
Hose |
$10.90
|
1 |
|
usually ships 16-41 days |
27 |
272-3941
|
Actuator motor |
$596.69
|
1 |
|
usually ships 1-5 days |
28 |
272-9367
|
Hose 1/4 x 25 inches |
$10.90
|
1 |
|
usually ships 16-41 days |
29 |
172-6089
|
Clevis pin |
$46.62
|
1 |
|
usually ships 1-5 days |
30 |
272-7496
|
Barb hose tee |
$9.60
|
1 |
|
usually ships 1-5 days |
31 |
997-2001
|
Hose clamp |
$2.42
|
4 |
|
ships same day |
32 |
272-7769
|
3/4 inch double wire clamp |
$10.90
|
2 |
|
usually ships 1-5 days |
N/S |
272-3814
|
Side scrub harness |
$156.25
|
1 |
|
usually ships 1-5 days |
