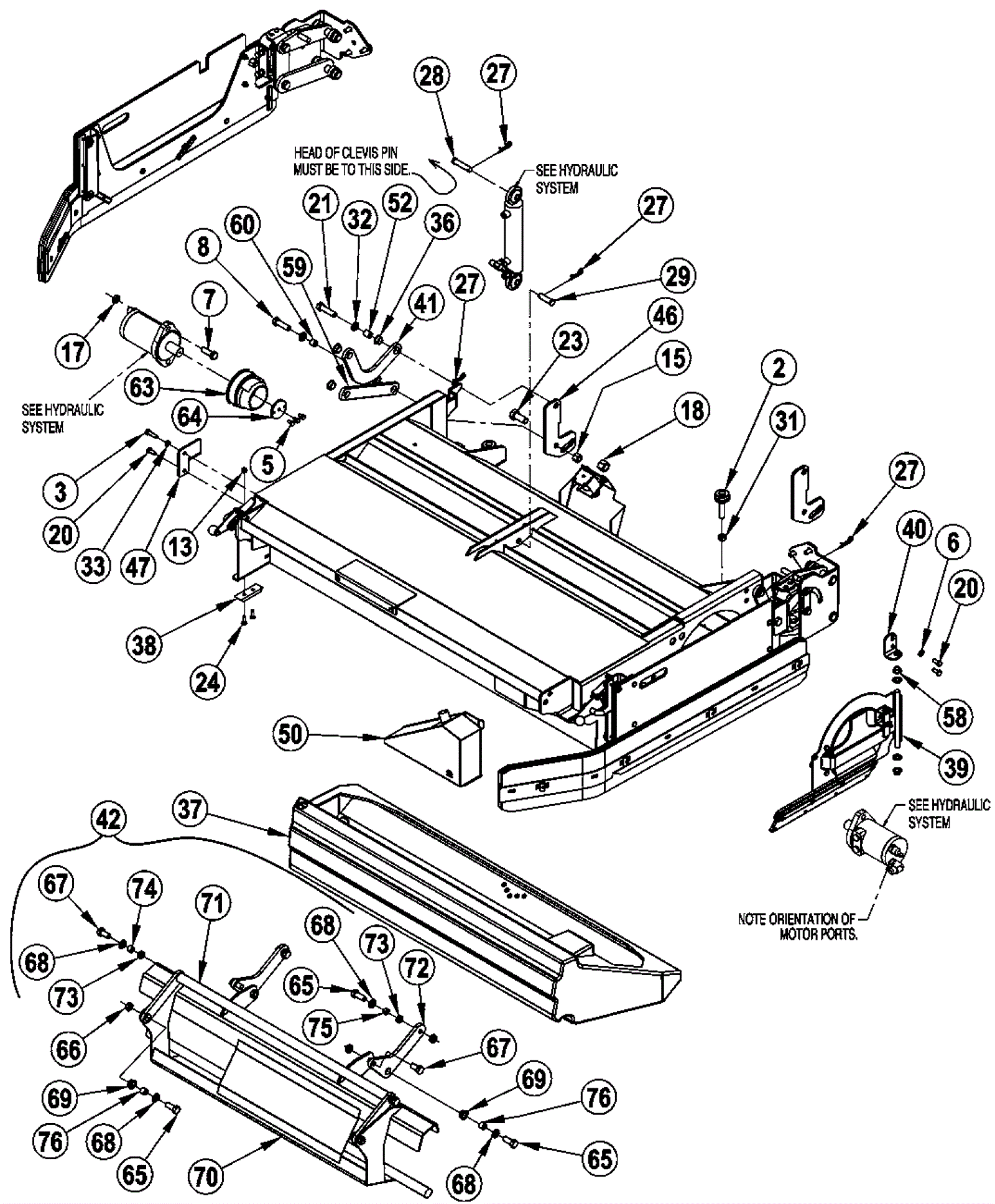

CONDOR XL Scrub Assembly - 1

#PartDescriptionPriceReqNotesAvailability
2 172-9507 Leveler $4.78 2 usually ships 1-5 days
3 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
5 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel $0.99 6 ships same day
6 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
7 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel $1.67 4 ships same day
8 999-0372 Bolt 1/2-13 x 1 3/4 hex head $0.99 2 ships same day
13 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
15 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 2 ships same day
17 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 4 ships same day
18 181-0988 Nut 5/8-18 hex jam lock $10.90 2 usually ships 1-5 days
20 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 3 ships same day
21 999-0261 Bolt 1/2-13 x 2 hex head grade 5 $1.58 2 ships same day
23 999-1894 Screw 5/8-18 x 1 1/2 hex cap stainless steel $14.97 2 usually ships 1-5 days
24 999-1895 Screw 1/4-20 x 7/8 flat head phillips stainless steel $0.99 4 usually ships 1-5 days
27 272-9987 Cotter pin $8.30 6 usually ships 1-5 days
28 172-4463 Clevis pin $10.90 1 usually ships 1-5 days
29 272-3868 Clevis pin 1/2 x 1 3/4 inch $10.90 1 usually ships 1-5 days
31 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 2 ships same day
32 172-0550 Washer 33/64 x 3/4 flat $9.60 8 usually ships 16-41 days
33 999-0430 Nut 5/16-18 hex jam plain finish $0.99 1 ships same day
36 272-3829 Flange bearing $12.18 8 usually ships 1-5 days
37 272-3871 Hopper $413.55 1 usually ships 16-41 days
38 272-3872 Skid $21.77 2 usually ships 1-5 days
39 272-3873 Idler assembly $908.41 2 usually ships 1-5 days
40 272-3874 Top hinge $17.68 1 usually ships 1-5 days
41 272-3875 Brush arm $57.12 2 usually ships 1-5 days
42 272-3876 Tray hanger assembly $786.36 1 (includes 65-76) usually ships 1-5 days
46 272-3880 Brush bracket $40.72 2 usually ships 1-5 days
47 272-3881 Left hand hinge $24.47 1 usually ships 1-5 days
50 272-3884 Screen weldment $271.13 1 usually ships 1-5 days
52 272-3886 Bushing $12.18 2 usually ships 1-5 days
58 272-3891 Flange bearing $13.70 4 usually ships 1-5 days
59 272-8607 Parallel arm $72.23 2 usually ships 1-5 days
60 172-0024 Bushing $12.18 2 usually ships 16-41 days
63 272-3893 Broom driver hub $488.33 2 usually ships 1-5 days
64 272-3894 Broom driver locking plate $36.77 2 usually ships 1-5 days
65 999-0200 Bolt 1/2-13 x 1 1/4 hex head $2.68 6 ships same day
66 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 6 ships same day
67 272-1659 Bolt 1/2-13 X 1 lock $10.90 4 usually ships 1-5 days
68 172-0550 Washer 33/64 x 3/4 flat $9.60 8 usually ships 16-41 days
69 272-3829 Flange bearing $12.18 4 usually ships 1-5 days
70 272-3895 Tray hanger weldment $339.39 1 usually ships 1-5 days
71 272-3896 Tray hanger weldment $124.74 1 usually ships 1-5 days
72 272-3897 Lever $24.47 2 usually ships 1-5 days
73 272-3828 Sleeve bearing $13.70 4 usually ships 1-5 days
74 172-0072 Bushing $39.46 2 usually ships 16-41 days
75 172-0139 Bushing $12.18 2 usually ships 1-5 days
76 172-0024 Bushing $12.18 4 usually ships 16-41 days
