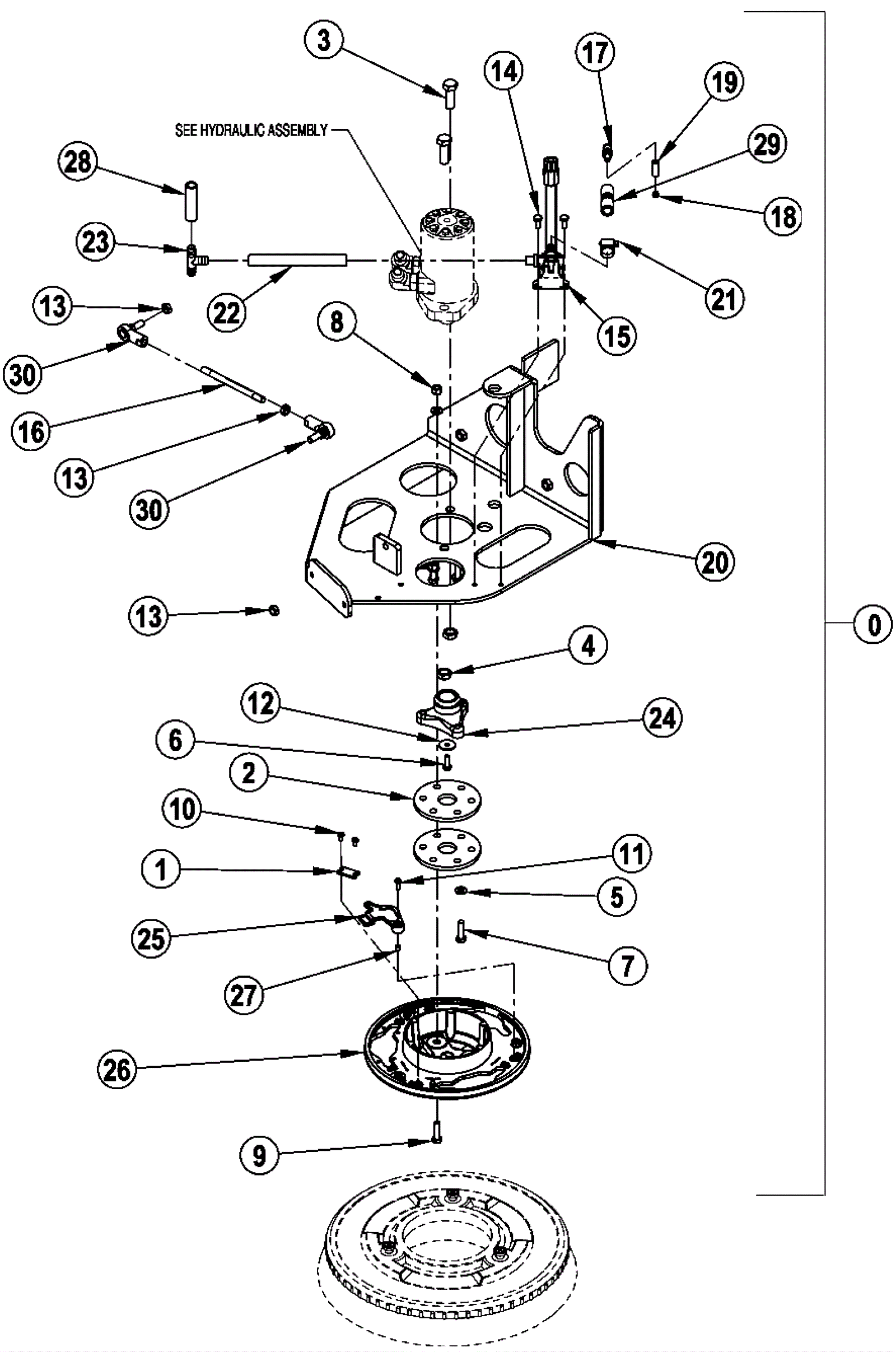

CONDOR XL Right Scrub Assembly - 3

#PartDescriptionPriceReqNotesAvailability
0 272-3822 Brush drive assembly $1,206.44 1 (includes 1-30) usually ships 1-5 days
1 172-0155 Stop plate $10.90 1 usually ships 16-41 days
2 172-2070 Thermoid disk $8.20 2 ships same day
3 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel $1.67 2 ships same day
4 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 2 ships same day
5 999-9004 Washer 5/16 SAE flat stainless steel $1.69 6 ships same day
6 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 ships same day
7 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 3 ships same day
8 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 3 ships same day
9 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 3 ships same day
10 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc $0.99 2 ships same day
11 999-0193 Screw 10-24 x 5/8 pan head slotted thread cutting zinc $0.99 1 ships same day
12 172-0548 Washer 17/64 x 47/64 flat stainless steel $9.60 1 usually ships 16-41 days
13 999-0169 Nut 3/8-24 hex jam plain finish $0.99 3 ships same day
14 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 2 ships same day
15 272-3839 Solenoid valve assembly $231.05 1 usually ships 1-5 days
16 272-3840 Rod $30.00 1 usually ships 1-5 days
17 272-3841 Barbed elbow $10.90 1 usually ships 1-5 days
18 272-3842 Orifice plug $12.75 1 usually ships 1-5 days
19 272-3843 PVC hose $10.90 1 usually ships 1-5 days
20 272-3844 Motor bracket weldment $827.08 1 usually ships 1-5 days
21 172-8494 #6 hose clamp SAE $9.60 1 usually ships 1-5 days
22 272-3845 Clear PVC hose $9.60 1 usually ships 1-5 days
23 172-4114 Tee barb $10.90 1 usually ships 16-41 days
24 272-3846 Drive hub $112.96 1 usually ships 1-5 days
25 272-6474 Right hand brush lock $8.20 1 usually ships 1-5 days
26 172-2089 Drive plate $74.16 1 usually ships 16-41 days
27 172-8164 Bushing $13.70 1 usually ships 1-5 days
28 172-7747 Insulated tubing $10.90 1 usually ships 1-5 days
29 154-0037 Tubing 1/2 x 5/8 (clear) (sold by the foot) $2.12 1 ft (cut to 4 inches) ships same day
30 172-2140 Squeegee pivot kit $28.72 2 (kit includes 1 ball joint, 3 washers, and instructions) usually ships 16-41 days
