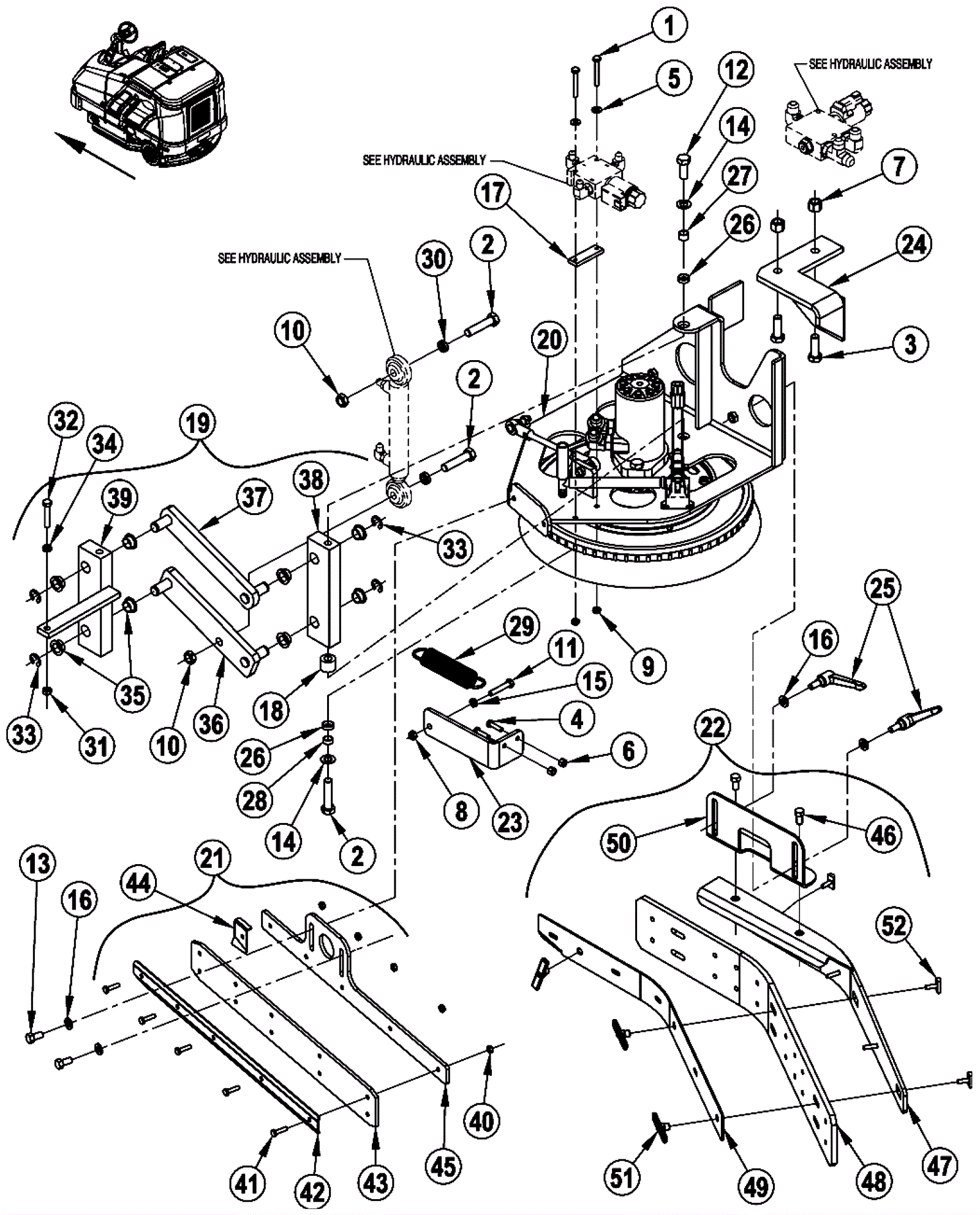

CONDOR XL Right Scrub Assembly - 2

#PartDescriptionPriceReqNotesAvailability
1 999-1892 Screw 1/4-20 x 2 hex cap stainless steel $1.52 2 ships same day
2 999-0691 Bolt 1/2-13 x 2 1/4 hex head grade 5 $1.50 3 ships same day
3 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel $1.67 2 ships same day
4 999-0830 Screw 1/4-20 x 1 hex head plain finish $0.99 2 ships same day
5 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
6 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
7 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 2 ships same day
8 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
9 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
10 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 2 ships same day
11 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel $1.63 1 ships same day
12 999-0200 Bolt 1/2-13 x 1 1/4 hex head $3.45 1 ships same day
13 272-5257 Bolt 3/8-16 x 3/4 hex head lock $12.31 2 usually ships 1-5 days
14 172-0550 Washer 33/64 x 3/4 flat $10.85 2 usually ships 17-28 days
15 999-0430 Nut 5/16-18 hex jam plain finish $0.99 1 ships same day
16 181-0015 Washer flat $9.26 4 usually ships 17-28 days
17 272-3819 Nut plate $55.17 1 usually ships 1-5 days
18 272-3820 Spacer $18.38 1 usually ships 1-5 days
19 272-3821 Brush arm assembly $541.85 1 (includes 31-39) usually ships 1-5 days
20 272-3822 Brush drive assembly $1,362.91 1 usually ships 1-5 days
21 272-3823 Skirt assembly $413.78 1 (includes 40-45) usually ships 1-5 days
22 272-3824 Right hand scrub skirt assembly $658.46 1 (includes 46-52) usually ships 1-5 days
23 272-3825 Spring bracket $23.01 1 usually ships 1-5 days
24 272-3826 Stop weldment $100.10 1 usually ships 1-5 days
25 272-3827 Locking handle $57.16 2 usually ships 1-5 days
26 272-3828 Sleeve bearing $15.48 2 usually ships 1-5 days
27 172-0072 Bushing $44.58 1 usually ships 17-28 days
28 172-0139 Bushing $13.76 1 usually ships 1-5 days
29 172-9090 Extension spring $65.97 1 usually ships 17-28 days
30 272-8765 Bushing $51.21 2 usually ships 17-28 days
31 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
32 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel $1.63 1 ships same day
33 172-4038 Retaining ring $10.85 4 usually ships 1-5 days
34 999-0430 Nut 5/16-18 hex jam plain finish $0.99 1 ships same day
35 272-3829 Flange bearing $13.76 8 usually ships 1-5 days
36 272-3830 Lower arm weldment $160.86 1 usually ships 1-5 days
37 272-3831 Upper arm weldment $137.90 1 usually ships 1-5 days
38 272-7224 Side broom pivot $106.46 1 usually ships 1-5 days
39 272-3832 Pivot weldment $123.12 1 usually ships 1-5 days
40 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 5 ships same day
42 272-3833 Skirt strap $55.56 1 usually ships 1-5 days
43a 272-7239 Right side scrub head blade kit gum rubber (red) $111.99 1 (blade kits include 2 blades, one of each needed for the right scrub assembly) usually ships 17-28 days
43b 272-7240 Right side scrub head blade kit gum rubber (tan) $84.49 1 (optional)(blade kits include 2 blades, one of each needed for the right scrub assembly) usually ships 1-5 days
43c 272-7241 Right side scrub head blade kit polyurethane $261.02 1 (optional)(blade kits include 2 blades, one of each needed for the right scrub assembly) usually ships 1-5 days
44 272-3834 Tab $24.60 1 usually ships 1-5 days
45 272-3835 Skirt bracket $54.11 1 usually ships 1-5 days
46 272-5257 Bolt 3/8-16 x 3/4 hex head lock $12.31 2 usually ships 1-5 days
47 272-3836 Skirt mount weldment $169.11 1 usually ships 1-5 days
48a 272-7239 Right side scrub head blade kit gum rubber (red) $111.99 1 (blade kits include 2 blades, one of each needed for the right scrub assembly) usually ships 17-28 days
48b 272-7240 Right side scrub head blade kit gum rubber (tan) $84.49 1 (optional)(blade kits include 2 blades, one of each needed for the right scrub assembly) usually ships 1-5 days
48c 272-7241 Right side scrub head blade kit polyurethane $261.02 1 (optional)(blade kits include 2 blades, one of each needed for the right scrub assembly) usually ships 1-5 days
49 272-3837 Skirt strap $70.47 1 usually ships 1-5 days
50 272-3838 Skirt bracket $64.53 1 usually ships 1-5 days
51 272-3520 Thumb nut $23.01 3 usually ships 17-28 days
52 272-3519 Skirt retainer (screw) $32.69 3 usually ships 17-28 days
