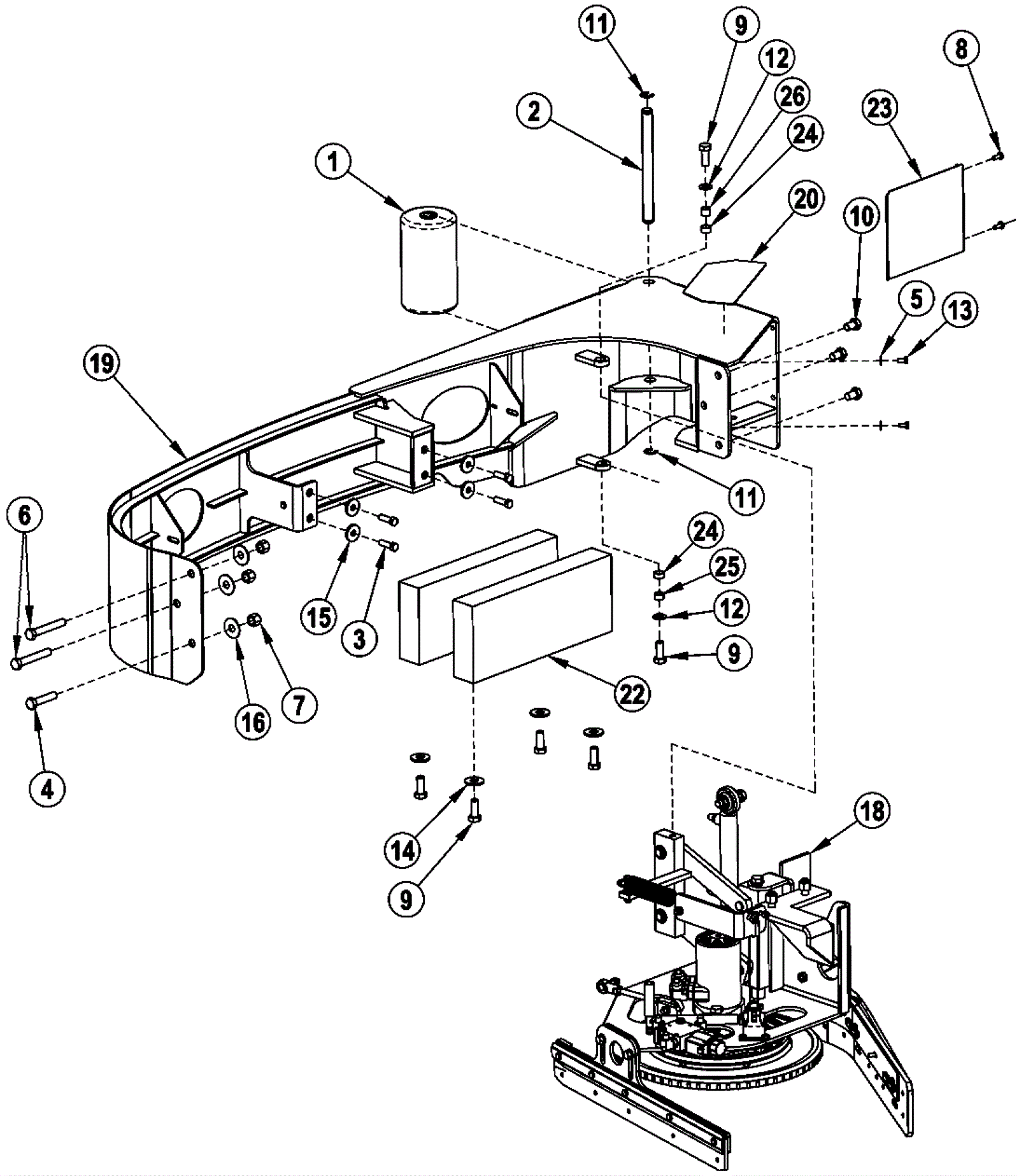

CONDOR XL Right Scrub Assembly - 1

#PartDescriptionPriceReqNotesAvailability
1 172-9509 Roller bumper $99.13 1 usually ships 1-5 days
2 172-9508 Pin $40.72 1 usually ships 1-5 days
3 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.56 4 ships same day
4 999-0691 Bolt 1/2-13 x 2 1/4 hex head grade 5 $1.50 1 ships same day
5 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
6 999-0930 Bolt 1/2-13 x 3 1/4 hex cap grade 8 plain finish $2.79 2 usually ships 1-5 days
7 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 3 ships same day
8 272-1465 Screw 1/4-20 X 5/8 hex head lock $10.90 2 usually ships 1-5 days
9 999-0200 Bolt 1/2-13 x 1 1/4 hex head $2.68 6 ships same day
10 999-0815 Screw 1/2-13 x 3/4 hex hot dipped galvanized $0.99 3 usually ships 1-5 days
11 172-9513 Retaining ring $10.90 2 usually ships 1-5 days
12 172-0550 Washer 33/64 x 3/4 flat $9.60 2 usually ships 16-41 days
13 272-9677 Screw 1/4-20 x 1/2 hex head $10.90 2 usually ships 1-5 days
14 172-4569 Washer 19/32 x 1 3/8 x 1/8 flat hardened $10.90 4 usually ships 1-5 days
15 172-1939 Washer 13/32 x 1 1/4 x 5/32 $10.90 4 usually ships 16-41 days
16 272-1539 Washer .53 x 1 1/2 x .07 plated $10.90 3 usually ships 1-5 days
18 N/A Not available Call for price 1 (Right Scrub Assembly)(see Right Scrub Assembly -2) usually ships 3-26 days
19 272-3815 Bumper weldment $2,101.01 1 usually ships 1-5 days
20 272-7666 Step mat $15.00 1 usually ships 1-5 days
22 272-3816 Weight $447.62 2 usually ships 1-5 days
23 272-3817 Right hand scrub cover $46.62 1 usually ships 1-5 days
24 272-3818 Bearing $12.18 2 usually ships 1-5 days
25 172-0072 Bushing $39.46 1 usually ships 16-41 days
26 172-0024 Bushing $12.18 1 usually ships 16-41 days
N/S 272-3814 Side scrub harness $156.25 1 usually ships 1-5 days
