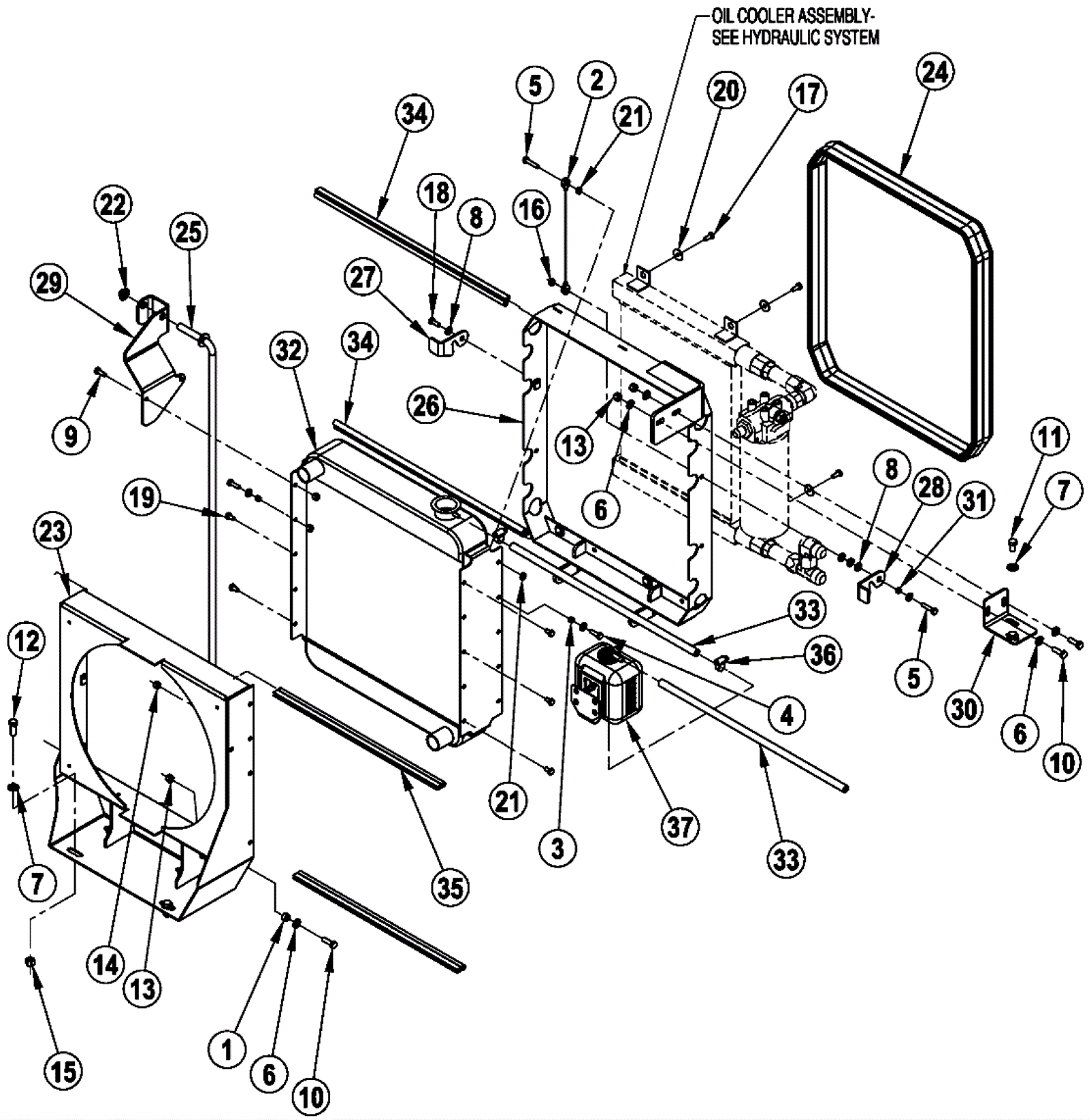

Radiator Assembly

#PartDescription ReqNotesAvailability
1 172-2631 Bushing 2
2 172-8221 Wire rope assembly 1
3 172-0186 Bushing 2
4 999-0822 Screw 1/4-20 x 7/8 hex head plain finish 2
5 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 2
6 999-0024 Washer 5/16 flat stainless steel 6
7 999-0120 Washer 3/8 SAE flat 10
8 999-0123 Washer 1/4 SAE flat zinc plated 10
9 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
10 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 4
11 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 2
12 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 4
14 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4
15 999-0188 Nut 3/8-16 nylon insert lock zinc plated 4
16 999-0190 Nut 1/4-20 hex plain finish 1
17 272-1465 Screw 1/4-20 X 5/8 hex head lock 4
18 272-1596 Bolt 1/4-20 x 3/4 hex head lock 1
19 272-9727 Screw 1/4-20 x 1/2 hex head lock 5
20 172-0553 Washer 17/64 x 1/16 flat 4
21 999-0971 Nut 1/4-20 jam stainless steel 2
22 172-4017 1/2 inch push cap 1
23 272-7984 Fan shroud weldment 1
24 272-7985 Radiator gasket 1
25 272-7986 Prop rod weldment 1
26 272-7987 Oil cooler mount weldment 1
27 272-7988 Right hand oil cooler latch 1
28 272-7989 Left hand oil cooler latch 1
29 272-7990 Hood prop bracket 1
30 272-7991 Oil filter bracket 1
31 172-2657 Bushing 2
32a 272-7992 Radiator 1
32b 272-7993 Radiator cap 1
33 272-7994 20 inch hose 2
34 272-7995 Raw seal trim 2
35 472-9102 GASKET 2
36 997-2001 Hose clamp 2
37 272-7997 Overflow bottle assembly 1
