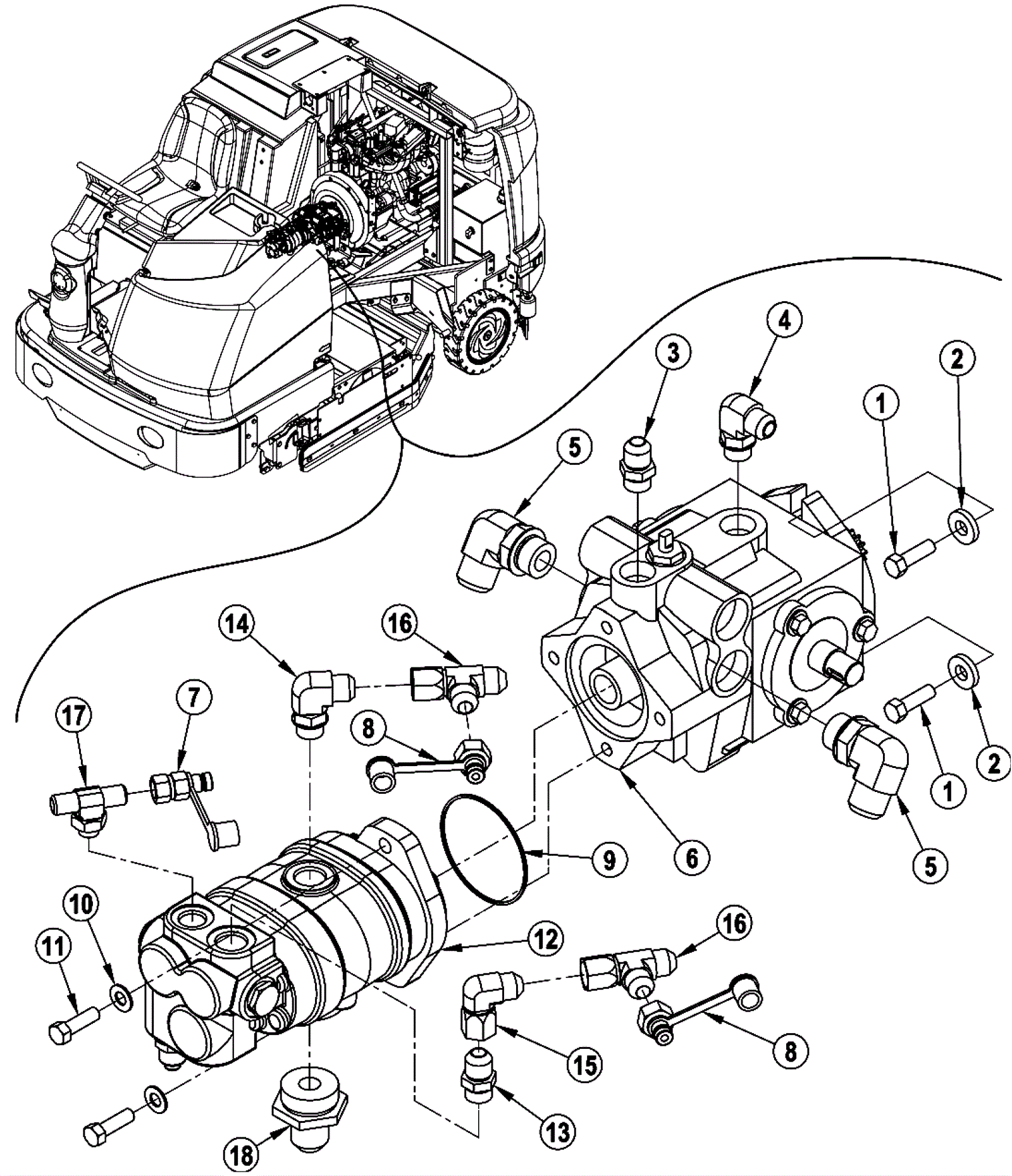

CONDOR XL Hydraulic Pump Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-4373 Screw 3/8-16 x 1.25 $10.90 2 usually ships 1-5 days
2 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
3 272-3186 Connector $10.24 1 usually ships 16-41 days
4 272-7937 90 degree elbow $42.65 1 usually ships 1-5 days
5 272-3177 90 degree elbow $64.29 2 usually ships 1-5 days
6a 272-7974 Piston pump $2,710.75 1 usually ships 1-5 days
6b 272-7975 Piston pump seal kit $378.39 usually ships 1-5 days
6c 272-7976 Relief valve $840.79 usually ships 1-5 days
7 272-3201 #6 test port coupling $58.39 1 usually ships 1-5 days
8 272-7977 Coupling $49.18 2 usually ships 1-5 days
9 272-3173 O-ring $10.90 1 usually ships 1-5 days
10 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
11 172-4373 Screw 3/8-16 x 1.25 $10.90 2 usually ships 1-5 days
12a 272-7978 Dual low speed pump $1,762.39 1 usually ships 1-5 days
12b 272-7979 Seal kit $351.20 usually ships 1-5 days
12c 272-7980 Relief cartridge $576.33 usually ships 1-5 days
13 272-3186 Connector $10.24 1 usually ships 16-41 days
14 272-7937 90 degree elbow $42.65 1 usually ships 1-5 days
15 272-3860 90 degree elbow with nut $39.46 1 usually ships 1-5 days
16 272-7981 Run tee with nut $55.83 2 usually ships 1-5 days
17 272-7982 Branch tee $20.37 1 usually ships 1-5 days
18 272-7939 Connector $32.79 1 usually ships 1-5 days
