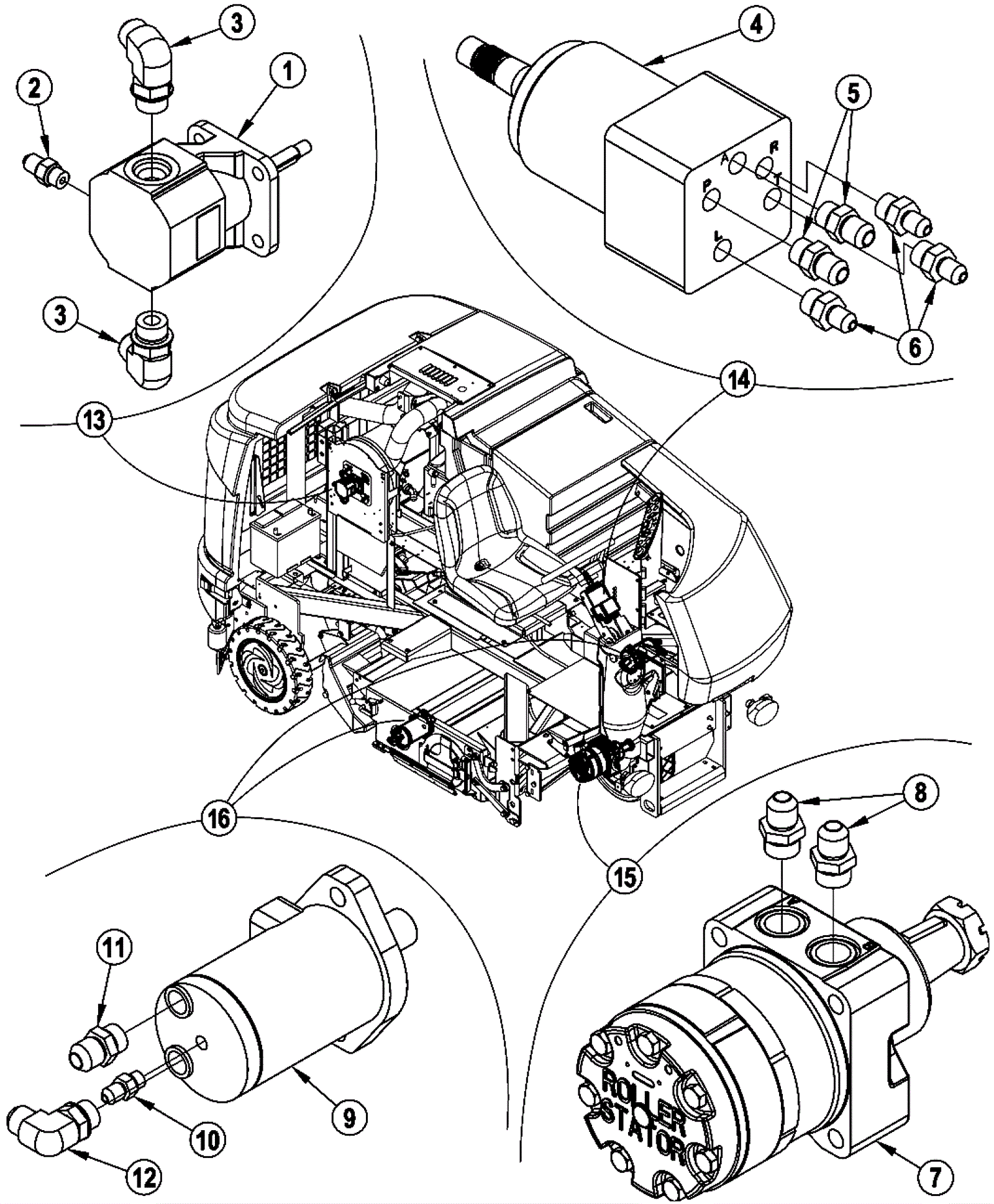

CONDOR XL Hydraulic Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1a 272-7121 Clamp $10.01 1 usually ships 1-5 days
1b 272-3099 Shaft seal $46.00 1 usually ships 17-28 days
2 272-3192 Connector $13.17 1 usually ships 1-5 days
3 272-7937 90 degree elbow $48.18 2 usually ships 1-5 days
4a 272-7968 Steering pump $1,684.68 1 usually ships 1-5 days
4b 272-7969 Steering pump seal kit $321.78 1 usually ships 1-5 days
5 272-3170 Connector $13.17 2 usually ships 17-28 days
6 272-3163 Connector $33.43 3 usually ships 1-5 days
7a 272-7970 Traction drive motor $1,408.91 1 usually ships 1-5 days
7b 272-7971 Traction drive motor seal kit $137.90 1 usually ships 17-28 days
8 272-3100 Connector $26.04 2 usually ships 1-5 days
9a 272-3059 Main broom motor $1,270.87 1 usually ships 1-5 days
9b 272-3060 Seal kit $298.77 1 usually ships 1-5 days
9c 272-7973 Main broom motor seal kit $298.77 1 usually ships 1-5 days
10 272-3192 Connector $13.17 1 usually ships 1-5 days
11 272-3186 Connector $11.57 1 usually ships 17-28 days
12 272-7937 90 degree elbow $48.18 1 usually ships 1-5 days
13 N/A Not available Call for price 1 (Fan Motor Assembly)(includes 1-3) usually ships 3-26 days
15 N/A Not available Call for price 1 (Drive Motor Assembly)(includes 7 and 8) usually ships 3-26 days
