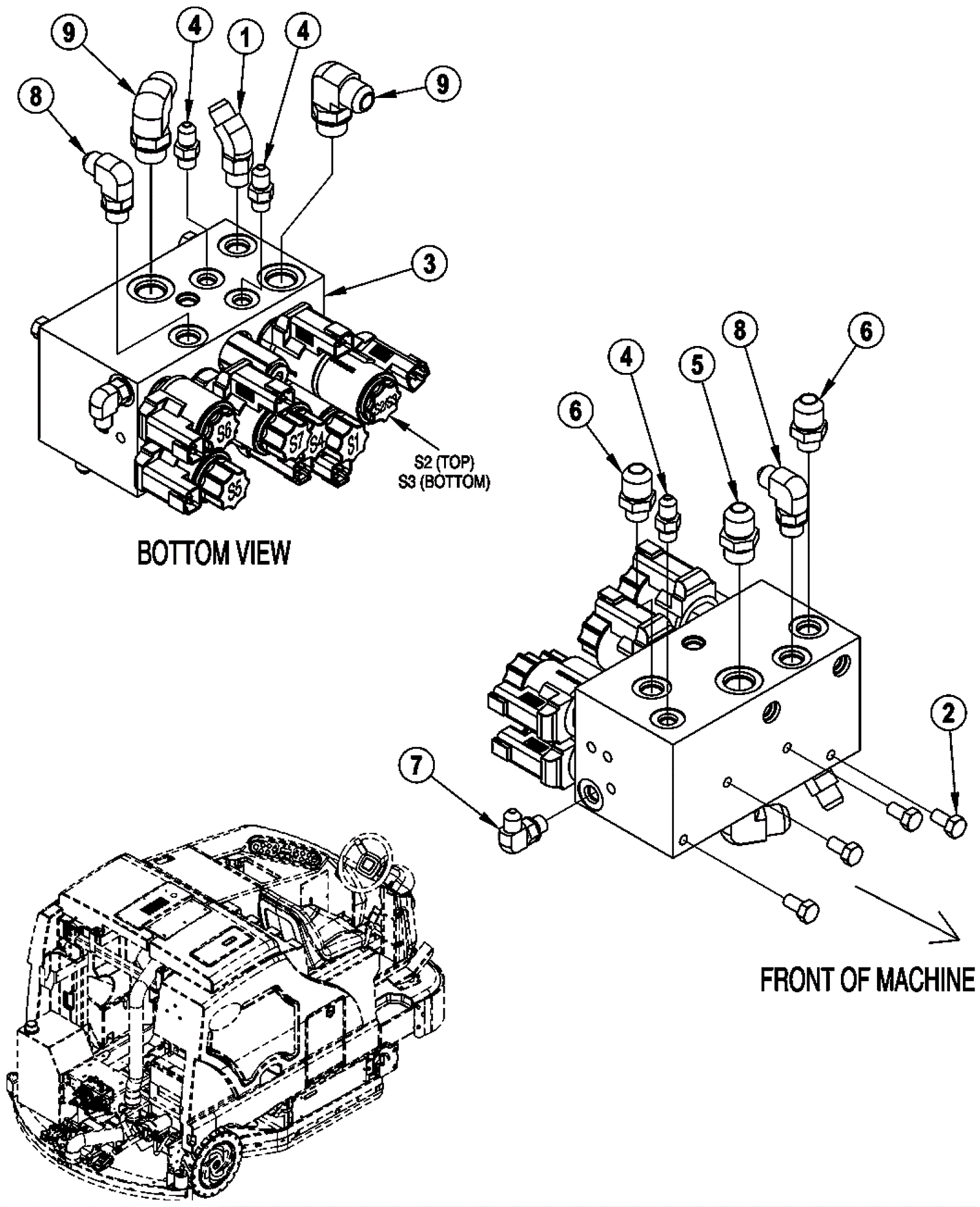

CONDOR XL Hydraulic Manifold Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-7950 45 degree elbow with nut $55.83 1 usually ships 1-5 days
2 272-9785 Screw 5/16-18 x 5/8 hex head lock $10.90 4 usually ships 16-41 days
3a 272-7951 Hydraulic valve block $3,388.75 1 usually ships 1-5 days
3b 272-7952 Valve cartridge $311.73 usually ships 1-5 days
3c 272-7953 Valve cartridge $131.91 usually ships 1-5 days
3d 272-7954 Valve cartridge $190.31 usually ships 1-5 days
3e 272-7955 Proportioning cartridge $461.44 usually ships 1-5 days
3f 272-7956 Proportioning relieving cartridge $359.75 usually ships 1-5 days
3g 272-7957 Relief valve cartridge $244.24 usually ships 1-5 days
3h 272-7958 Coil $124.74 usually ships 1-5 days
3i 272-7959 Coil $78.77 usually ships 1-5 days
3j 272-7960 Coil replacement $77.49 usually ships 1-5 days
3k 272-7961 Seal kit $25.87 usually ships 1-5 days
3l 272-7962 Seal kit $17.68 usually ships 16-41 days
3m 272-7963 Seal kit $16.27 usually ships 1-5 days
3n 272-7964 Seal kit $27.53 usually ships 1-5 days
3o 272-7965 Seal kit $35.48 usually ships 1-5 days
4 272-3192 Connector $11.66 3 usually ships 1-5 days
5 272-3186 Connector $10.24 1 usually ships 16-41 days
6 272-7966 O-ring connector $19.09 2 usually ships 1-5 days
7 272-2983 90 degree elbow $30.87 1 usually ships 1-5 days
8 272-3188 90 degree elbow $32.15 2 usually ships 1-5 days
9 272-7937 90 degree elbow $42.65 2 usually ships 1-5 days
