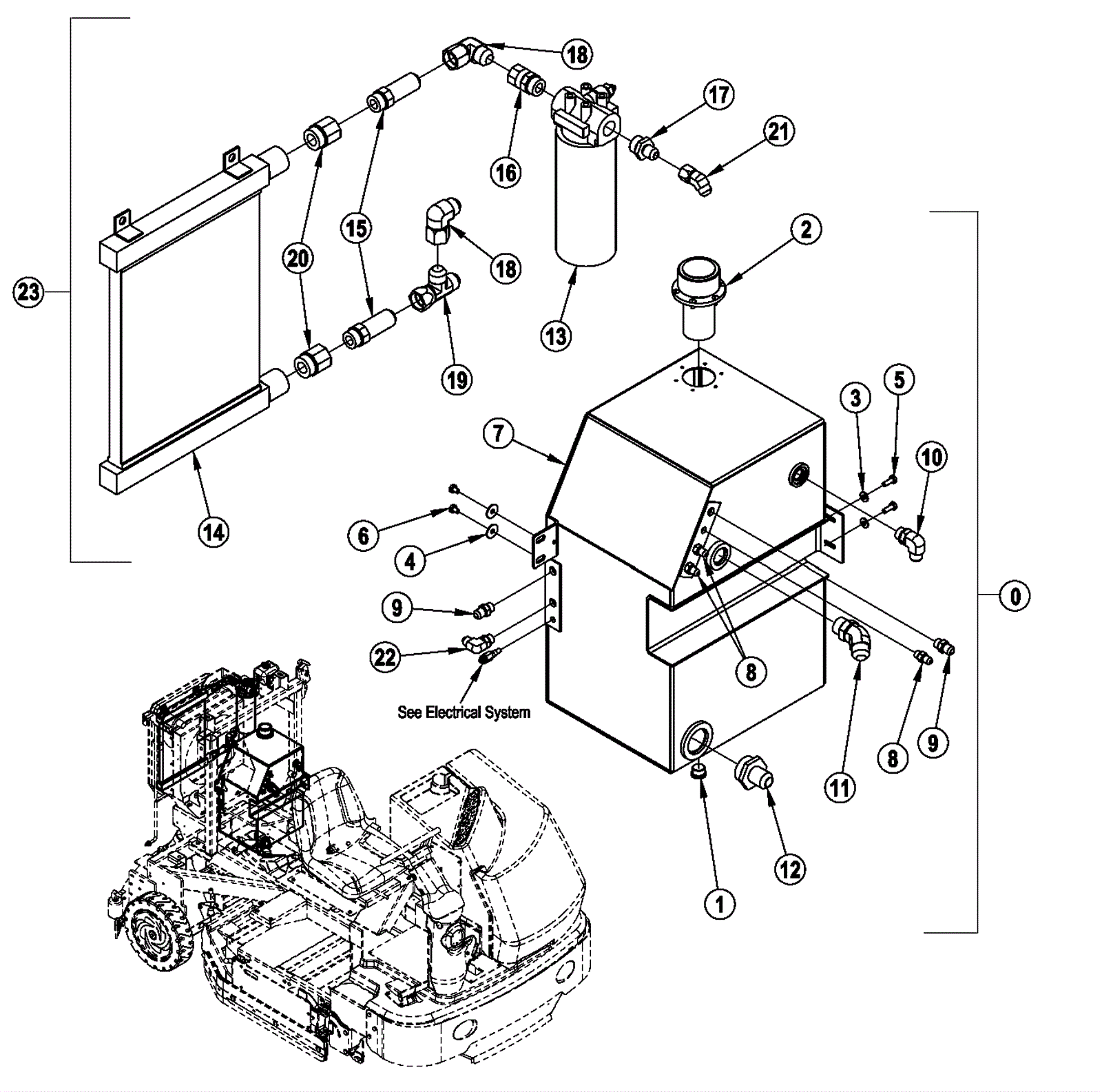

CONDOR XL Hydraulic Oil Cooler/Reservoir Assembly

#PartDescriptionPriceReqNotesAvailability
0 N/A Not available Call for price 1 (Reservoir Assembly)(includes 1-12 and 22) usually ships 3-26 days
1 272-3152 O-ring hex plug $10.90 1 usually ships 1-5 days
3 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
4 172-0553 Washer 17/64 x 1/16 flat $9.60 2 usually ships 16-41 days
5 999-0275 Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling $0.99 2 ships same day
7 272-7936 Reservoir weldment $1,193.24 1 usually ships 1-5 days
8 272-3192 Connector $11.66 3 usually ships 1-5 days
9 272-3170 Connector $11.66 2 usually ships 16-41 days
10 272-7937 90 degree elbow $42.65 1 usually ships 1-5 days
11 272-7938 45 degree elbow with nut $47.90 1 usually ships 1-5 days
12 272-7939 Connector $32.79 1 usually ships 1-5 days
13a 272-3146 Oil filter $372.81 1 usually ships 1-5 days
13b 272-7941 Replacement filter $108.99 1 usually ships 1-5 days
14 272-7942 Oil cooler $840.79 1 usually ships 1-5 days
15 272-7943 Long straight fitting $26.13 2 usually ships 1-5 days
16 272-7944 Swivel fitting $68.27 1 usually ships 1-5 days
17 272-7945 O-ring connector $10.90 1 usually ships 1-5 days
18 272-7946 90 degree elbow with nut $61.09 2 usually ships 1-5 days
19 272-7947 Run tee with nut $122.06 1 usually ships 1-5 days
20 272-7948 O-ring reducer $36.77 2 usually ships 1-5 days
21 272-7949 45 degree elbow with nut $32.79 1 usually ships 1-5 days
22 272-3188 90 degree elbow $32.15 1 usually ships 1-5 days
23 272-7940 Oil cooler assembly $1,558.88 1 (includes 13-21) usually ships 1-5 days
